JOHNSON CONTROLS

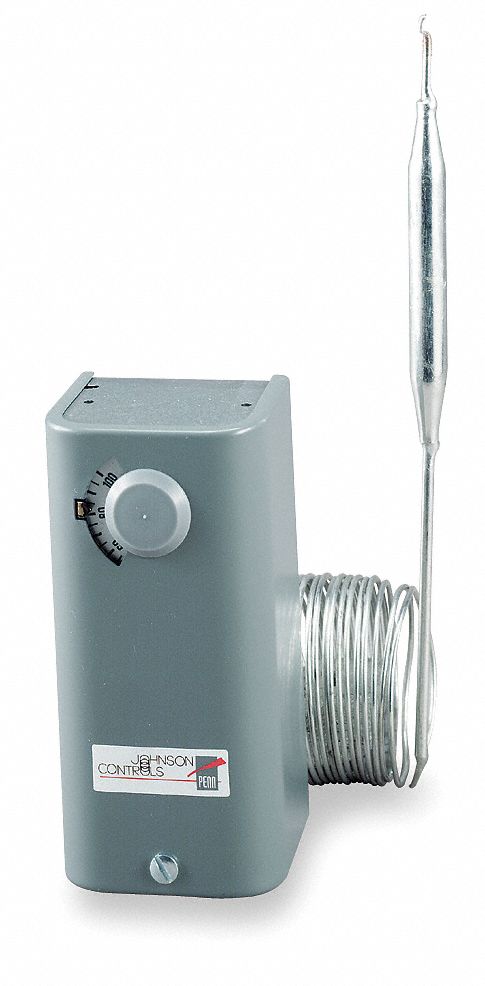

Line Volt Mechanical Tstat for Heating and Cooling, 120 to 240VAC

  • Item # 4E047
  • My Part #
  • Mfr. Model # A19ABC-24E
  • Catalog Page # N/A
  • UNSPSC # 41112209
Line Volt Mechanical Tstat for Heating and Cooling, 120 to 240VAC close
To zoom in, use the keyboard to focus on the arrow icon within the product image. Once it receives focus, use the arrow keys on the keyboard to move and position the product image. The zoom feature provides no benefit to users who are blind.
close

Using 360° Viewing:

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.

CAD Downloads

Product is discontinued

Alternate products displayed below may not be identical in style or function to original selection.

Technical Specs

  • Item Line Volt Mechanical Tstat
  • Thermostat Switch Type SPDT
  • Thermostat Control Range -30 Degrees to 100 Degrees F
  • Thermostat Voltage 120 to 240VAC
  • Full Load Amps @ 120VAC 15A
  • Thermostat Programmable No
  • Remote Sensing Capability Yes
  • Thermostat Heating/Cooling Heating/Cooling
  • Thermostat Item Line Voltage Mechanical Thermostat
  • Remote Sensing Bulb Included Yes
  • Switch Action Open/Close on Rise
  • Number of Switches 1
  • Differential 3 Degrees to 12 Degrees F
  • Height 4-7/16"
  • Width 2-3/16"
  • Depth 2-3/16"
  • Sensing Bulb Dia. 3/8"
  • Sensing Bulb Length 4"
  • Capillary Length 96"
  • Color Gray
  • Enclosure Type Dustproof NEMA 1
  • Inductive Amps @ 120V 16A
  • Inductive Amps @ 240V 8A
  • Contact Rating Resistive @ 120V 22A
  • Contact Rating Resistive @ 240V 22A
