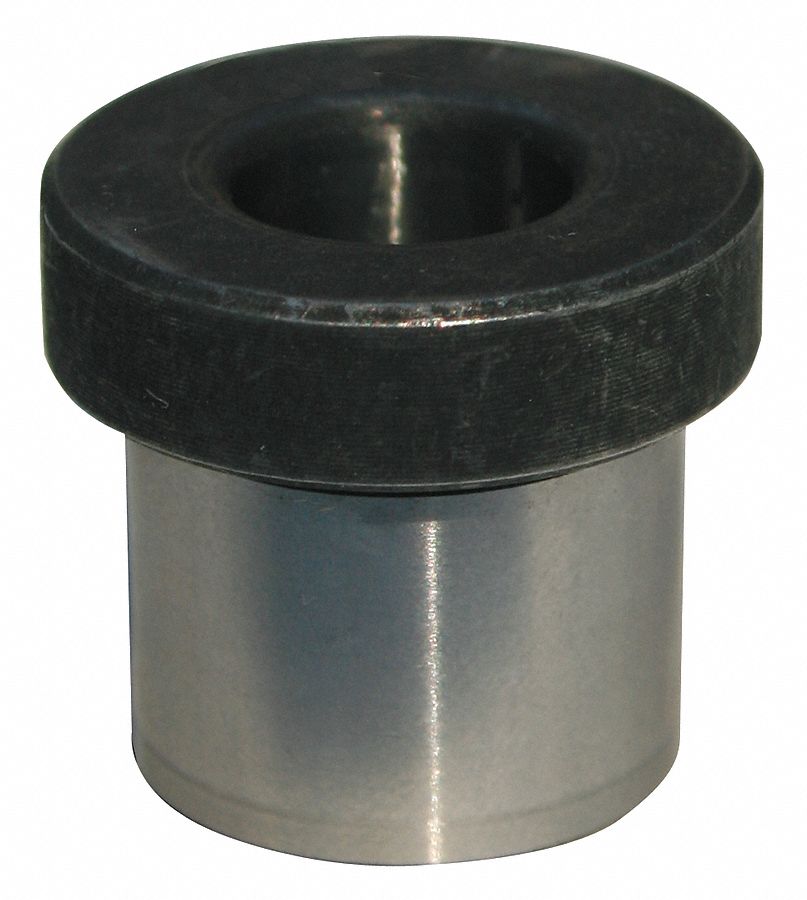

Headed Press-Fit Drill Bushing (H), Standard Wall, Headed, Fractional Inch, 53/64 in
- Item # 11D284
- Mfr. Model # H8816NP
- UNSPSC # 31171603
- Catalog Group # G2808
- Catalog Page # N/A
These headed (H) press-fit drill bushings come in standard sizes expressed in fractional inches. Standard-wall headed press-fit drill bushings have thicker walls and are typically sturdier than thin-wall headed press-fit bushings.Headed press-fit (H) drill bushings have an overhang, or head, that prevents them from being pushed through the drilling jig, making them ideal for applications where axial loads or vibration could move headless drill bushings. The bushings can be installed with the head projecting above the jig plate, or they can be countersunk so the head is flush with the jig plate's surface. Type H drill bushings are permanently pressed into the jig and are suitable for single-step drilling operations where the bushings will not need to be replaced. Drill bushings are installed into a drilling jig to guide, support, and position a drill or other cutting tool during metalworking tasks. They keep the cutting tool from wandering or bending as it enters the workpiece, maximize chip clearance, and minimize the risk of marring the workpiece or the jig.
Technical Specs
- Item Headed Press-Fit Drill Bushing (H)
- Drill Bushing Wall Type Standard Wall
- Head Type Yes
- Measurement System Fractional Inch
- Inside Dia. 53/64 in
- Decimal Equivalent 0.8281
- Drill Size 53/64 in
- Inside Dia. Tolerance +0.0001 in /+0.0004 in
- Outside Dia. 1 3/8 in
- Outside Dia. Tolerance +0.0022 in /+0.0018 in
- Bushing Code H
- Bushing Head Type Headed
- Overall Length 1 in
- Head Dia. 1 35/64 in
- Head Material High Speed Steel
- Heat Treatment Through Hardened
- Material - Machining High Speed Steel
- Rockwell Hardness RC 62-64
These headed (H) press-fit drill bushings come in standard sizes expressed in fractional inches. Standard-wall headed press-fit drill bushings have thicker walls and are typically sturdier than thin-wall headed press-fit bushings.Headed press-fit (H) drill bushings have an overhang, or head, that prevents them from being pushed through the drilling jig, making them ideal for applications where axial loads or vibration could move headless drill bushings. The bushings can be installed with the head projecting above the jig plate, or they can be countersunk so the head is flush with the jig plate's surface. Type H drill bushings are permanently pressed into the jig and are suitable for single-step drilling operations where the bushings will not need to be replaced. Drill bushings are installed into a drilling jig to guide, support, and position a drill or other cutting tool during metalworking tasks. They keep the cutting tool from wandering or bending as it enters the workpiece, maximize chip clearance, and minimize the risk of marring the workpiece or the jig.
