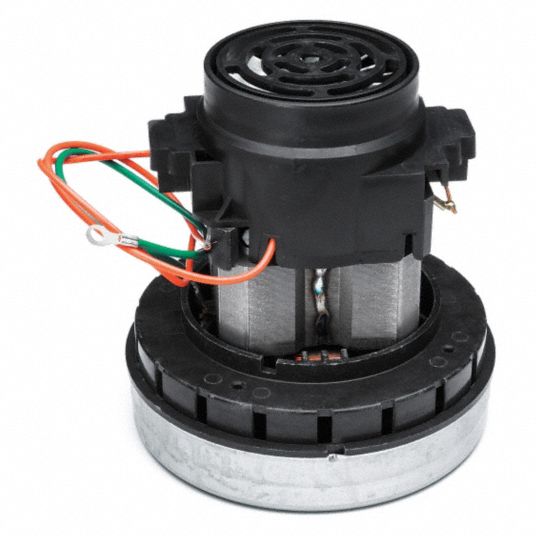

DAYTON Vacuum Motor: Metal Mounting Brackets, 5.7 in Body Dia., 120V AC, 1 Blower Stages, Bypass, 60

Item
32ZN82
Mfr. Model
32ZN82

Product Details

Catalog Page
N/A
Brand
DAYTON
Manufacturer Part Number
32ZN82
Discharge
Peripheral Bypass
Phase
Single
Motor Design
Universal AC/DC
No. of Speeds
1
Voltage
120V AC
Motor/Blower Type
Bypass
Max. Amps
10 A
Hz
60
Motor Thermal Protection
Auto
Ins. Class
B
Duty Cycle
Intermittent
Motor Enclosure Design
Open
Motor Mounting Type
Lug
Motor Mounting Position
All Angle
Max. Air Watts
245 W
Vacuum Rating
56
CFM @ 2-In. Orifice
125 cfm
Mounting Bracket Material
Metal
Blower Stages
1
Average Life
500 hr
Overall Height
6 in
Body Dia.
5.7 in
Inlet Tube Dia.
2 in
Replacement Brushes
34DA21
Standards
UL Recognized for US and Canada (E47479)
Mounting Brackets
Metal
UNSPSC
26101602
Country of Origin
China (subject to change)
Product Description

Peripheral discharge vacuum AC motors have a design where air flows into the bottom of the motor and is discharged through vents in the motor. They are equipped with a cooling fan on top of the motor that blows clean air over the motor for more reliable cooling compared to thru-flow and tangential motors. These motors have a high starting torque, operate at high speed, and create vacuum pressure and suction by a rotating motor fan. They move clean and dry air in commercial canister or utility vacuums, sprayers and foggers, material handling and transfer systems, car wash vacuums, and central vacuum systems.
