Sign In Register Forgot User ID? Forgot Password?OEM Blower: Rectangular, With Flange, 6 1/4 in Blower Wheel Dia, 115V AC, 2.05 Full Load Amps
Direct-drive blower with forward-curve wheels are OEM replacements in many general heating, cooling, ventilating, or component cooling applications. Dynamically balanced to provide smooth, quiet operation and maintain cfm at higher static pressures. Mount in any position. Cast-aluminum end shields dissipate heat. Ball bearings. Rectangular outlet. Not for use with speed controllers.
Tap image to zoom.
Roll over image to zoom.

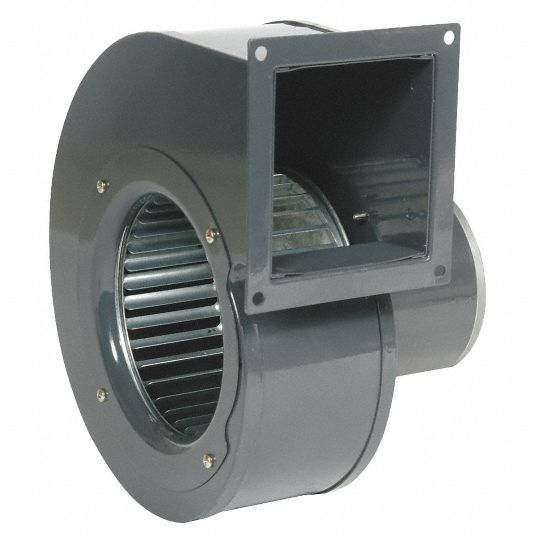

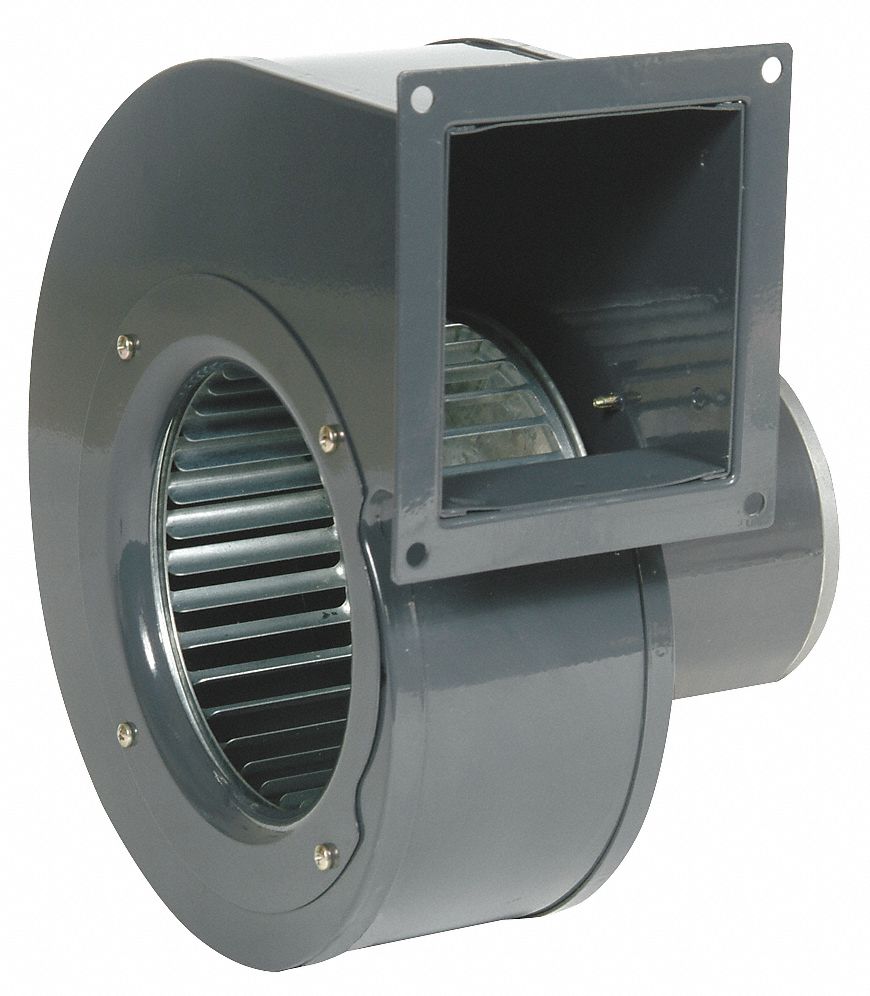

OEM Blower: Rectangular, With Flange, 6 1/4 in Blower Wheel Dia, 115V AC, 2.05 Full Load Amps
Direct-drive blower with forward-curve wheels are OEM replacements in many general heating, cooling, ventilating, or component cooling applications. Dynamically balanced to provide smooth, quiet operation and maintain cfm at higher static pressures. Mount in any position. Cast-aluminum end shields dissipate heat. Ball bearings. Rectangular outlet. Not for use with speed controllers.
Technical Specs
- Item OEM Blower
- Blower Outlet Shape Rectangular
- With Flange Yes
- Blower Wheel Diameter 6 1/4 in
- Blower Wheel Width 3 13/16 in
- Blower Item OEM Specialty Blower
- Blower Voltage 115V AC
- Blower Motor Type Permanent Split Capacitor
- Blower Thermal Protection Auto
- Blower Conduit Box Yes
- CFM @ 0.000-In. SP 549
- CFM @ 0.100-In. SP 538
- CFM @ 0.200-In. SP 510
- CFM @ 0.300-In. SP 500
- CFM @ 0.400-In. SP 480
- CFM @ 0.500-In. SP 450
- CFM @ 0.600-In. SP 435
- CFM @ 0.700-In. SP 390
- CFM @ 0.800-In. SP 360
- Hz 50/60
- Phase 1
- Full Load Amps 2.05
- RPM 1640
- Bearing Type Ball
- Motor Enclosure Open
- Motor Insulation Class B
- Lead Length 13 in
- Max. Ambient Temp. 104 Degrees F
- Max. Inlet Temp. 104 Degrees F
- Inlet Dia. 5 5/16 in
- Outlet Height 4 1/4 in
- Outlet Width 5 1/4 in
- Overall Height 11 1/8 in
- Overall Width 9 3/16 in
- Overall Depth 10 7/16 in
- Wheel Type Forward Curve
- Drive Type Direct
- Mounting Position All Position
- Housing Finish Enamel
- Housing Material Rolled Steel
- Housing Color Gray
- Agency Compliance CE and RoHS Compliance, cULus Recognized (E47479) for the Motor Only Not the Blower
- Replaces 4C445 and 4YJ32
- Includes Discharge Mounting Flange

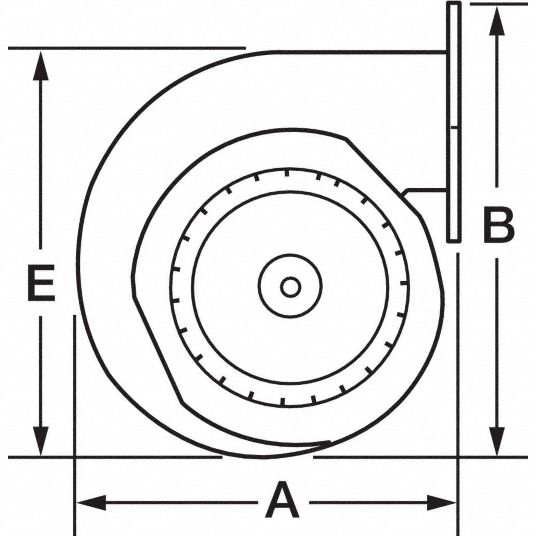

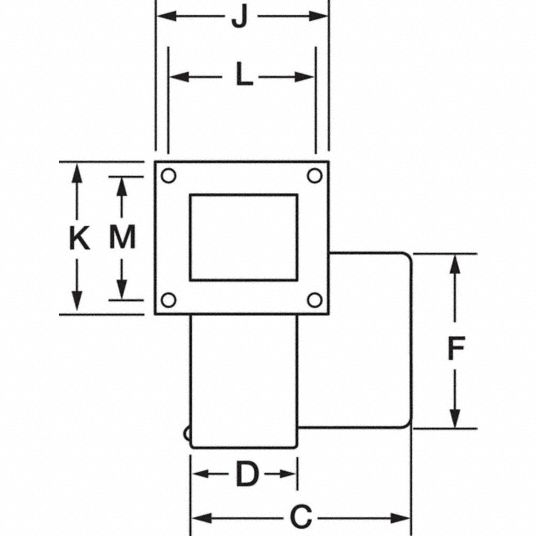

- Dimension A 10 7/16 in
- Dimension B 11 13/16 in
- Dimension C 9 3/16 in
- Dimension D 5 1/2 in
- Dimension E 11 1/8 in
- Dimension F 4-7/16"
- Dimension J 6 5/8 in
- Dimension K 5 5/8 in
- Dimension L 6 in
- Dimension M 5 in
Direct-drive blower with forward-curve wheels are OEM replacements in many general heating, cooling, ventilating, or component cooling applications. Dynamically balanced to provide smooth, quiet operation and maintain cfm at higher static pressures. Mount in any position. Cast-aluminum end shields dissipate heat. Ball bearings. Rectangular outlet. Not for use with speed controllers.
