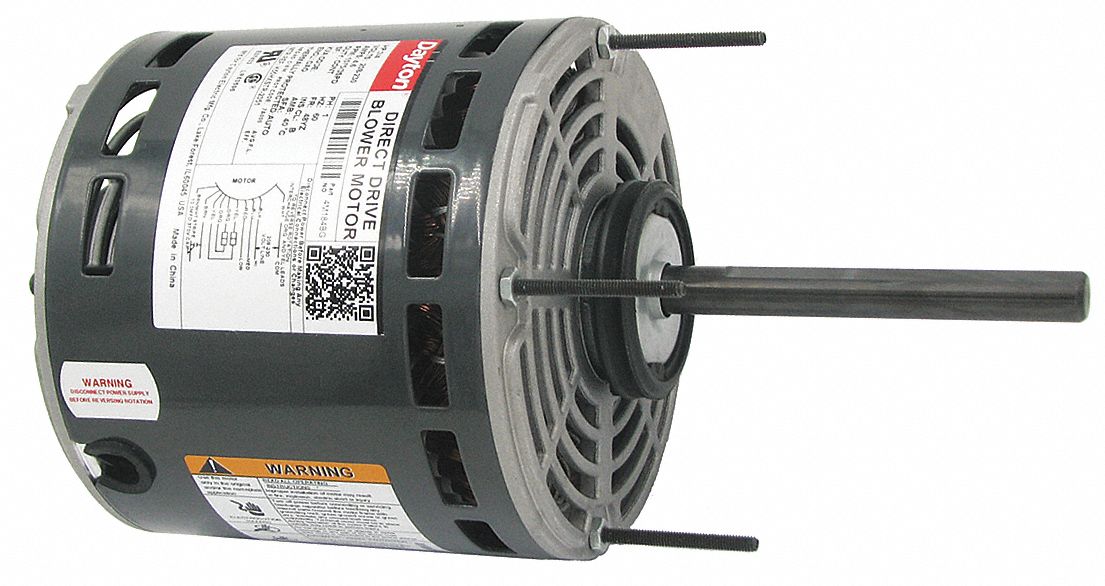

3/4 HP Direct Drive Blower Motor, Permanent Split Capacitor, 1075 Nameplate RPM, 208-230 Voltage
- Item # 3LU88
- Mfr. Model # 3LU88
- Catalog Page # 49
- UNSPSC # 26101602
Using 360° Viewing:
- Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
- Zoom In: Double click on image.
- Zoom Out/Reset: Put photo at full zoom & then double click.
-
-
360°
CAD Downloads
- Shipping Weight 20.28 lbs.
Product Details
Technical Specs
- Item Direct Drive Blower Motor
- Motor Application HVAC/R
- Motor Sub Application Direct Drive Fan/Blower
- Motor Design Permanent Split Capacitor
- Motor Enclosure Design Open Air-Over
- HP 3/4
- Nameplate RPM 1075
- Voltage 208-230
- Full Load Amps 4.5-5.1
- Hz 60
- Phase 1
- Frame 48YZ
- Motor Service Factor 1.00
- Max. Ambient Temp. 40 Degrees C
- Ins. Class B
- Duty Continuous
- No. of Speeds 4
- Motor Mounting Type Stud
- Motor Mounting Position All Angle
- Motor Bearings Sleeve
- Motor Thermal Protection Auto
- Motor Shaft Rotation CW/CCW
- Body Dia. 5-5/8"
- Length Less Shaft 6-15/16"
- Overall Length 12-15/16"
- Shaft Dia. 1/2"
- Shaft Length 6"
- Motor Shaft Design Double-Flat
- Capacitor Required 2MDV7
- Resilient Ring Dia. 2-1/4"
- Ring to Ring Center 6-1/2"
- Mounting Stud Pattern 3-5/8" x 3-5/8"
- Bolt Circle Dia. 5-1/8"
- RPM Range 1001-1100
- Standards UL Component Recognition (E37403) and CSA Certification (258501)
- Application Blowers, Fans and Air Circulators
- Includes Split Rings to Increase Ring Diameter to 2 1/2"
Compliance and Restrictions
None
Documentation
Alternate Products
Alternate Products may not be identical in style or function to original selection. Please compare below for more information.
-
Item # 4M184DAYTON
