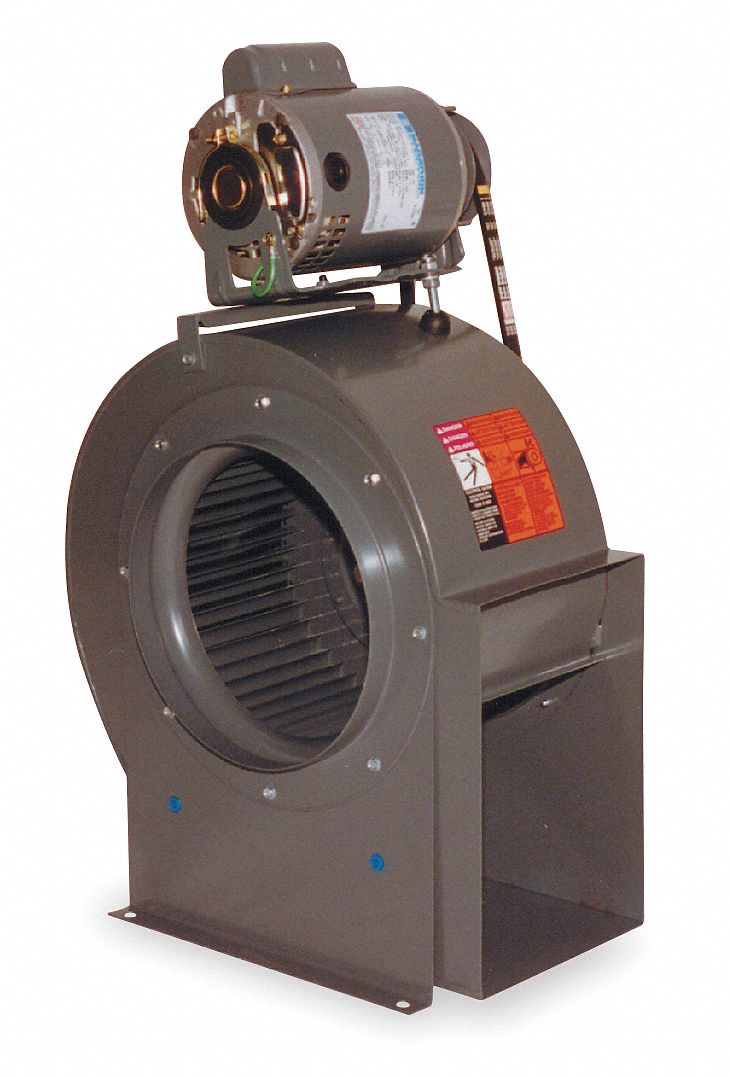

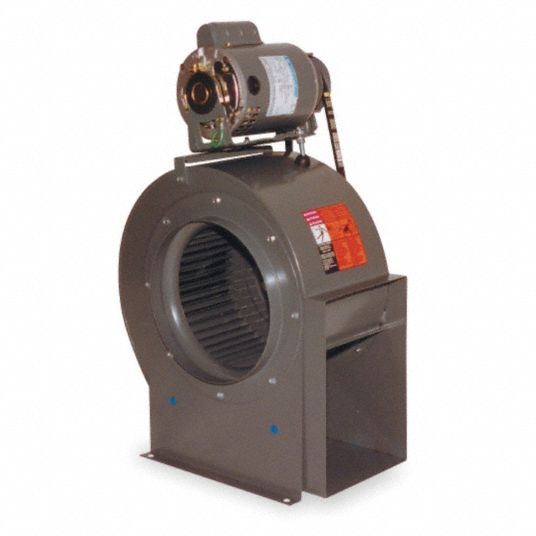

Sign In Register Forgot User ID? Forgot Password?Blower: With Drive Pack, 115 Volt, 15 in Dp
- Item # 7C651
- Mfr. Model # 7C651
- UNSPSC # 40101601
- Catalog Page # 2980 2980
Single-Inlet Forward Curve Belt-Drive Blowers • Heavy-gauge steel construction Continuous duty Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°FAdjustable top motor mount moves from top to rear mounting. Easily altered to required discharge position by drilling new motor mounting holes, rotating blower housing on base, and bolting in position. Motor is resilient-mounted and automatic reset thermal-protected. High volume at low velocity. Shipped in bottom horizontal discharge position. Drive package components packed separately.Note: Review OSHA codes. OSHA complying guards are required when fan blades are exposed and within reach of personnel.
Tap image to zoom.
Roll over image to zoom.
Blower: With Drive Pack, 115 Volt, 15 in Dp
- Item # 7C651
- Mfr. Model # 7C651
- UNSPSC # 40101601
- Catalog Page # 2980 2980
Single-Inlet Forward Curve Belt-Drive Blowers • Heavy-gauge steel construction Continuous duty Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°FAdjustable top motor mount moves from top to rear mounting. Easily altered to required discharge position by drilling new motor mounting holes, rotating blower housing on base, and bolting in position. Motor is resilient-mounted and automatic reset thermal-protected. High volume at low velocity. Shipped in bottom horizontal discharge position. Drive package components packed separately.Note: Review OSHA codes. OSHA complying guards are required when fan blades are exposed and within reach of personnel.
Technical Specs
- Item Blower
- Type With Drive Package
- Wheel Dia. (In.) 9 in
- CFM @ 0.125-In. SP 1100
- CFM @ 0.250-In. SP 1000
- CFM @ 0.375-In. SP 890
- CFM @ 0.500-In. SP 800
- CFM @ 0.750-In. SP 475 cfm
- dBA @ 5 Feet 46 dBA
- Max. Inlet Temp. (Deg. F) 180 Degrees F
- Max. Ambient Temp. (F) 104 Degrees F
- Voltage 115
- Phase 1
- Hz 60
- Full Load Amps 4.4
- Motor HP 1/4 hp
- Motor RPM 1,725 RPM
- Motor Enclosure Open Dripproof
- Motor Frame 48Y
- Motor Type Split Phase
- Shaft Dia. (In.) 5/8 in
- Height (In.) 17 in
- Width (In.) 11 in
- Depth (In.) 15 in
- Inlet Dia. (In.) 9 in
- Discharge Height (In.) 10 3/4 in
- Discharge Width (In.) 6 1/2 in
- Wheel Width (In.) 4 1/2 in
- Blower RPM 1,000 RPM
- Rotation CW
- Bearing Type Ball
- Wheel Material Steel
- Housing Material Steel
- Housing Finish Gray Baked Polyester Epoxy
- Assembled/Unassembled Unassembled
Single-Inlet Forward Curve Belt-Drive Blowers • Heavy-gauge steel construction Continuous duty Gray baked-on epoxy finish Max. inlet air temp.: 180°F Max. ambient temp.: 104°FAdjustable top motor mount moves from top to rear mounting. Easily altered to required discharge position by drilling new motor mounting holes, rotating blower housing on base, and bolting in position. Motor is resilient-mounted and automatic reset thermal-protected. High volume at low velocity. Shipped in bottom horizontal discharge position. Drive package components packed separately.Note: Review OSHA codes. OSHA complying guards are required when fan blades are exposed and within reach of personnel.
