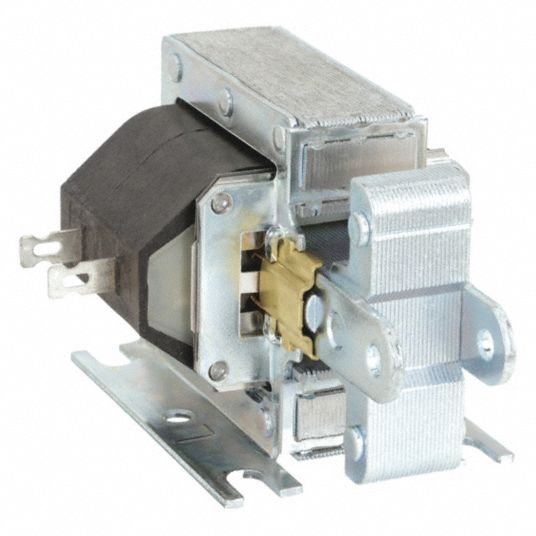

Solenoid, 120VAC Coil Volts, Stroke Range: 1/8" to 1", Duty Cycle: Continuous

  • Item # 4X240
  • My Part #
  • Mfr. Model # 2005-M-1
  • Catalog Page # N/A
  • UNSPSC # 31251510
Solenoid, 120VAC Coil Volts, Stroke Range: 1/8" to 1", Duty Cycle: Continuous close

Using 360° Viewing:

  1. Rotate: Use top-to-bottom, side-to-side by use of mouse arrow.
  2. Zoom In: Double click on image.
  3. Zoom Out/Reset: Put photo at full zoom & then double click.

CAD Downloads

Web Price $27.09 / each
Activate Now

to save with

Select AdvantageSM

Please sign in or register to access lists

Please sign in or register to access Quote

Want to Get Free Shipping?

  • Shipping Weight 0.83 lbs.
Country of Origin USA Country of Origin is subject to change.
Note: Product availability is real-time updated and adjusted continuously. The product will be reserved for you when you complete your order. More

Product Details

• Pull-type Continuous duty cycle rated at 25°C
Constructed of durable laminated steel with corrosion-resistant frame and plunger. Solenoids have polyester or nylon bobbins, encapsulated or taped coils, steel plunger springs, and brass plunger guides. Class A coil insulation with solder lug coil terminals.
RoHS Compliant.

View More

Technical Specs

  • Item Solenoid
  • Solenoid Type Laminated
  • Stroke Range 1/8" to 1"
  • Pull Force Range 64.0 to 128.0 oz.
  • Width 1-13/16"
  • Depth 2-1/16"
  • Length 2-1/2"
  • Coil Volts 120VAC
  • Seated Amps 0.43
  • Seated Watts 17.9
  • Coil Resistance 20.5 ohm
  • Terminals Solder Lug Coil
  • Amps @ Max. Stroke 4.90
  • Duty Cycle Continuous
  • Mounting Holes 2 x 1-3/8"
  • Gravity Value 4.32 oz.
  • Pull @ 3/8 In. Stroke 1.0 oz.
  • Pull @ 1/4 In. Stroke 2.0 oz.
  • Pull @ 1/8 In. Stroke 3.0 oz.
How can we improve our Technical Specifications?

Compliance and Restrictions


Alternate Products

Alternate Products may not be identical in style or function to original selection. Please compare below for more information.

Alternate Search Terms

Customer Reviews

Solenoid, 120VAC Coil Volts, Stroke Range: 1/8 In to 1 In , Duty Cycle: Continuous is rated 3.0 out of 5 by 1.
Rated 3 out of 5 by from Garbage, unless your air temp around it is less than 75 degrees. It might work good if it's used in a freezer. Get the Dormeyer # 2005-f-34 (rated up to 311 degrees - best for wood stove boilers).
Date published: 2016-04-11
