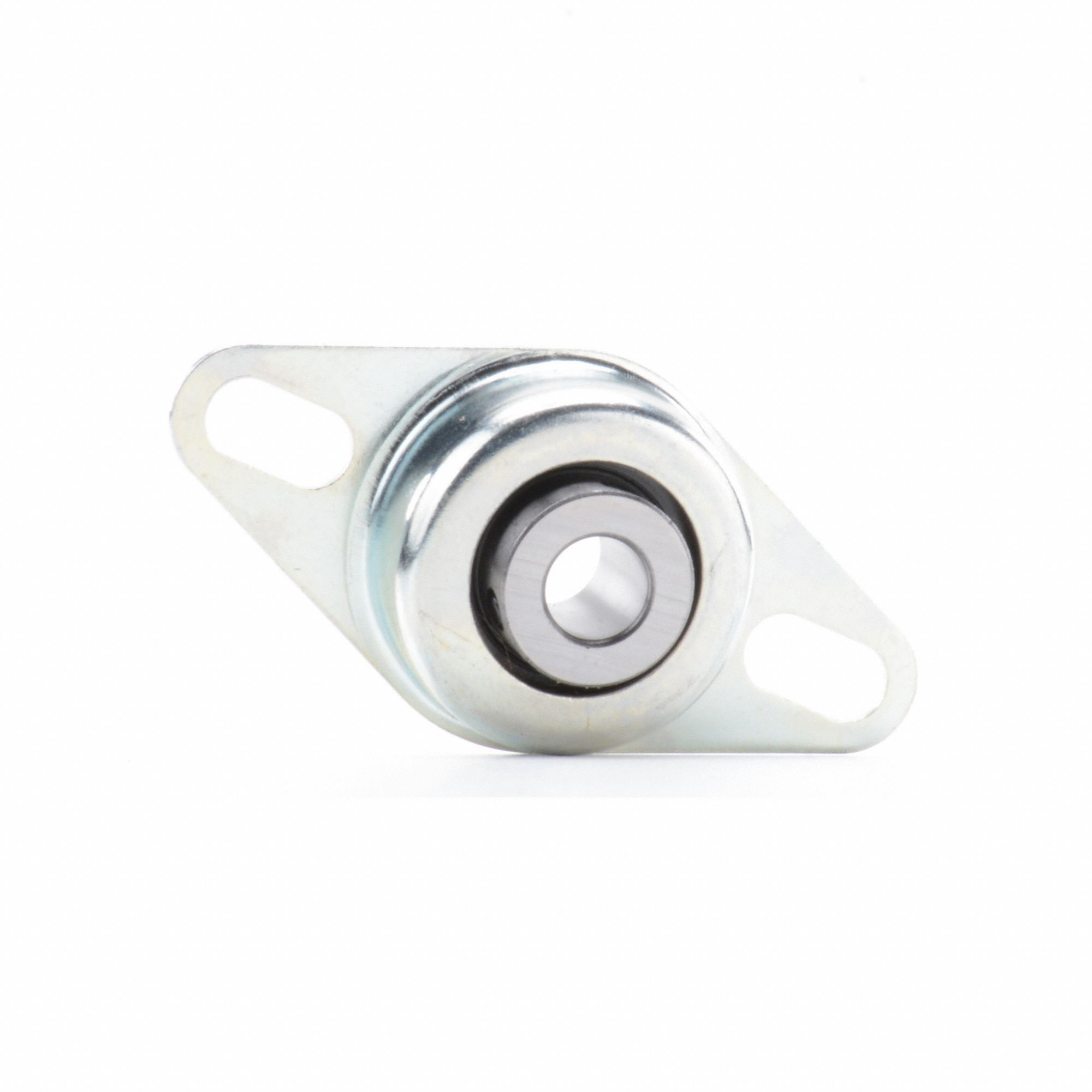

Flange Mount Bearing, 1/2 In. Bore

DAYTON

Price: $19.81 / each

Please sign in or register to access lists

  • Item # 4X727
  • Mfr. Model # 4X727
  • NSN # 3130-01-353-3897
  • UNSPSC # 31171501
  • Catalog Page # 192
  • Shipping Weight 0.25 lbs.
Country of Origin USACountry of Origin is subject to change.

Technical Specs

  • ItemFlange Mount Bearing
  • Number of Bolts2
  • SeriesF2PS-BL
  • Bore Dia.1/2"
  • Mounting Hole Center3"
  • Bolt Hole Size3/8"
  • Overall Height1"
  • Overall Width2"
  • Overall Length4"
  • Dynamic Load Capacity2,152 lb.
  • Static Load Capacity1,075 lb.
  • Temp. Range-30 Degrees to 200 Degrees F
  • Locking TypeSet Screw
  • Bearing TypeFlange Mount
  • InsertBall Bearing
  • Bearing Material52100 Steel
  • Housing MaterialPressed Steel
  • FinishRust Proof Plated
  • Includes(2) set screws, Oil Resistant Rubber Liner
How can we improve our Product Specifications?

Compliance and Restrictions

None

Details

Ball bearings have prelubricated ABEC-1 tolerances and a wide inner race with setscrews. Corrects misalignment up to 2°. Pressed steel housing with rustproof plated finish and neoprene seals.
Product content provided by supplier

Alternate Products

Alternate Search Terms


Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.

Product Q&A

(2 Questions : 2 Answers)

Ask your questions. Share your answers.



« Back


Has staff answer

1 answer

What are the maximum RPMs?

2 years, 3 months ago
by
Read all my Q&A

Please wait while more information about Andy16 is loaded.
Additional information about Andy16 could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
1 Person needs an answerI have this question too

Answers

Answer:
This would have a 5,000 RPM maximum.
2 years, 3 months ago
by
Read all my Q&A

Please wait while more information about AngelaK is loaded.
Additional information about AngelaK could not be loaded.
0points
0out of 0found this answer helpful.
Was this helpful?helpful0unhelpful0
Need height and dia. of various pieces. Also how is it lubed .
6 months ago
by
Read all my Q&A

Please wait while more information about wahlbanger is loaded.
Additional information about wahlbanger could not be loaded.
0points
0out of 0found this question helpful.
Was this helpful?helpful0unhelpful0
1 Person needs an answerI have this question too

Answers

Answer:
It is lubed and sealed. 2.0" on the outside diameter, the height is 1.0". More dimensions can be viewed if you click on the page number while viewing item or view in our paper catalog.
