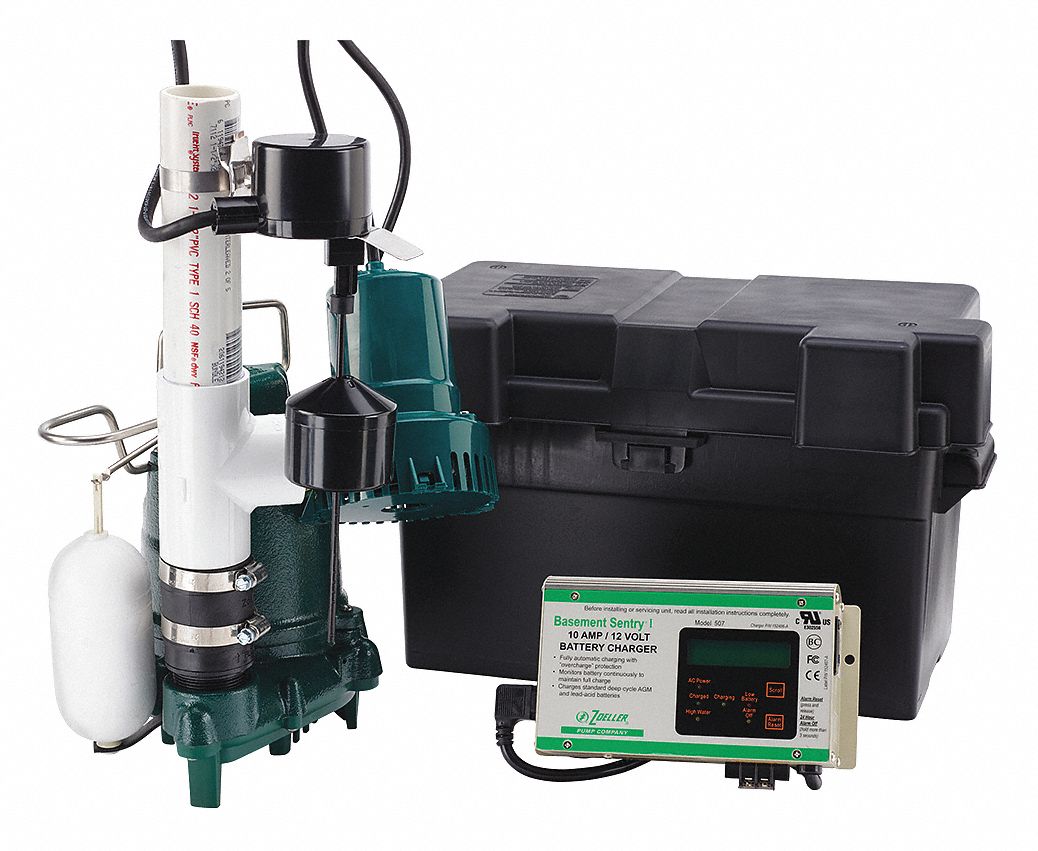

ZOELLER Sump/Battery Back-Up System, 1/2 HP, 115V

Sump/Battery Back-Up Combination System, 1/2 HP, Discharge NPT 1-1/2 In., 115 Voltage, 9.4 Amps, Vertical Float Switch Type, Max. Flow 4320 GPH, Max. Head 23 Ft., 1/2, Max. Temp. 130 F, Includes Check Valves, Battery Box and Charger
  • Grainger Item #12U353
    Price (ea.)$776.50
    BrandZOELLER
    Mfr. Model #507-0011
    UNSPSC #40151512
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)56.58
    Availability Typically in Stock
    Catalog Page No.4040
    Country of Origin
    (Country of Origin is subject to change.)
    USA
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemSump/Battery Back-Up Combination System
HP1/2
Discharge NPT (In.)1-1/2
Voltage115
Voltage - Back-Up12VDC
Amps9.4
Amps - Back-Up8.4
Switch TypeVertical Float
12VDC Battery Charger10A
Max. Flow (GPH)4320
Max. Flow (GPH) - Back-Up1380
Max. Head (Ft.)23
Max. Head (Ft.) - Back-Up17.5
Max. Dia. Solids (In.)1/2
Max. Dia. Solids (In.) - Back-Up0
GPH of Water @ 0 Ft. of Head4320 (Primary); 1380 (Secondary)
GPH of Water @ 5 Ft. of Head4320 (Primary); 1380 (Secondary)
GPH of Water @ 10 Ft. of Head3660 (Primary); 900 (Secondary)
GPH of Water @ 15 Ft. of Head2700 (Primary); 300 (Secondary)
Max. Temp. (F)130
Min. Sump Pit Dia. (In.)18
On Point (In.)9.5 (Primary); 11.25 (Secondary)
Off Point (In.)3 (Primary); 10.25
Base MaterialCast Iron (Primary); Plastic (Secondary)
HousingCast Iron (Primary); Plastic (Secondary)
Top MaterialCast Iron (Primary); Plastic (Secondary)
Impeller MaterialPolypropylene (Primary); Plastic (Secondary)
Motor TypePSC (Primary); DC (Secondary)
DutyContinuos (Primary); Continuous (Secondary)
Shaft SealCarbon/Ceramic (Primary); Buna N (Secondary)
Mechanical SealCarbon/Ceramic (Primary); Buna N (Secondary)
Shaft MaterialAISI 1215 steel
Length (In.)11.5
Width (In.)11.5
Height (In.)19.75
Cord Length (Ft.)15 (Primary); 6 (Secondary)
For Use WithSump Pits Above 18" Diameter and 24" Deep
StandardsUL, CSA (Primary)
IncludesCheck Valves, Battery Box and Charger


Optional Accessories

More Accessories

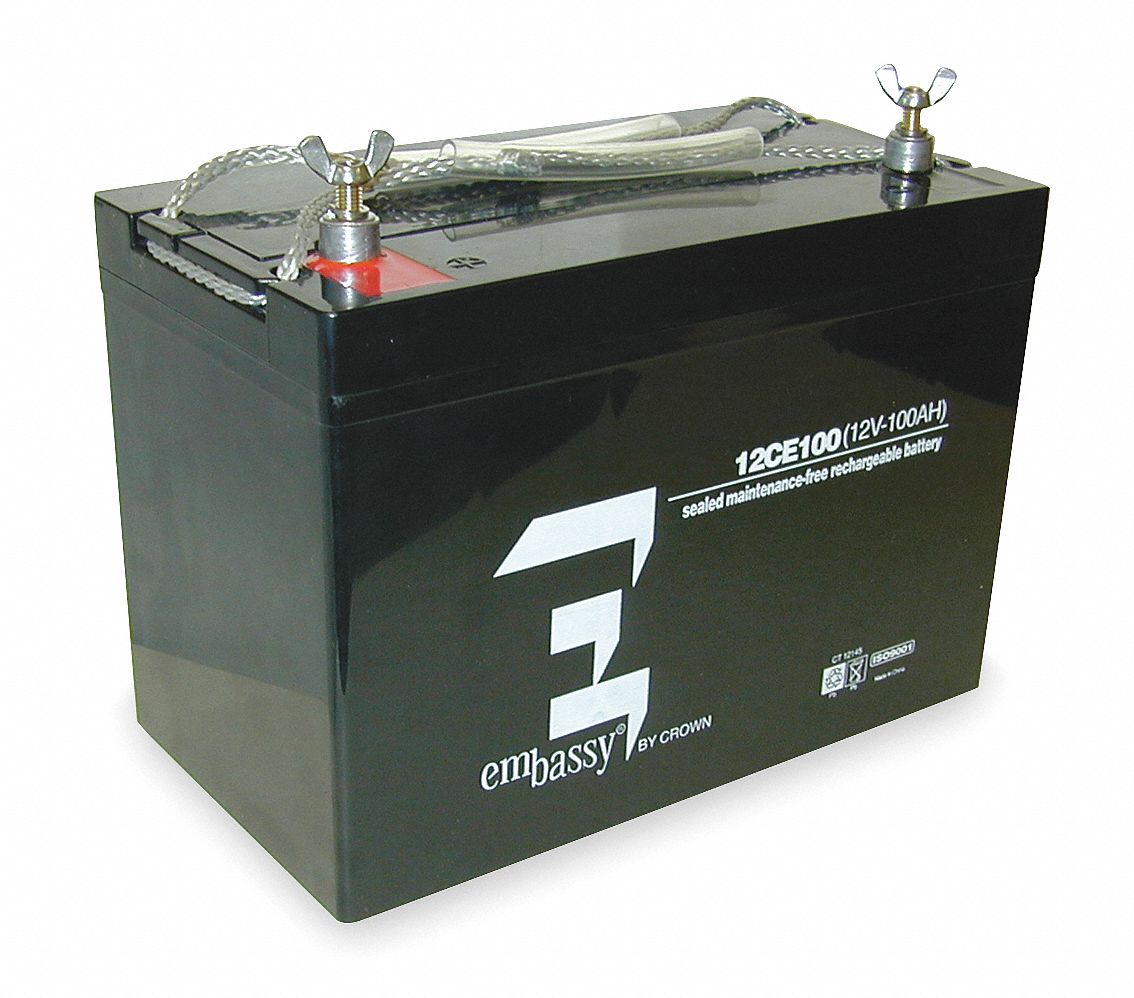

Brand:

ZOELLER

Grainger Item #:

2RXT8

Price (ea.):

$475.00
