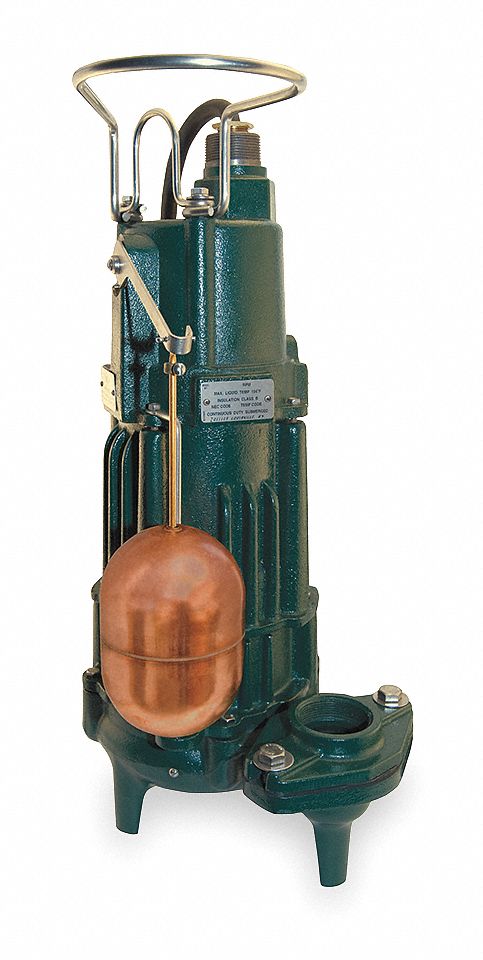

ZOELLER Explosion Proof Pump, 2 HP, 2 In NPT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Explosion Proof Submersible Sewage Pump, 2 HP, Switch Type Vertical, Discharge NPT 2 In., Voltage 230, Amps 17.1, Housing Cast Iron, Base Material Cast Iron, Impeller Material Bronze, Shaft Seal Carbon/Ceramic, Height 24 15/16 In., Width 13 5/16 In., Cord Length 20 Ft., Max. Dia. Solids 2 In., Max. Temp. 104 F, Max. Head 75 Ft., On Point 19 3/4 In., Off Point 10 In., Thermal Protection, FM Approved

Grainger Item #	4HEX9
Price (ea.)	$2,930.00
Brand	ZOELLER
Mfr. Model #	DX295
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	129.0
Availability	Typically in Stock
Catalog Page No.	4039
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Explosion Proof Submersible Sewage Pump
Type		Automatic
HP		2
Switch Type		Vertical
Base Material		Cast Iron
Housing		Cast Iron
Top Material		Cast Iron
Impeller Material		Bronze
Shaft Material		SS
Voltage		230
Amps		17.1
Height (In.)		24-1/2
Dia. (In.)		13-5/16
Cord Length (Ft.)		20
Discharge NPT (In.)		2
Max. Dia. Solids (In.)		2
On Point (In.)		19-3/4
Off Point (In.)		10
GPM of Water @ 5 Ft. of Head		214
GPM of Water @ 10 Ft. of Head		199
GPM of Water @ 15 Ft. of Head		184
GPM of Water @ 20 Ft. of Head		168
GPM of Water @ 25 Ft. of Head		154
GPM of Water @ 30 Ft. of Head		140
GPM of Water @ 40 Ft. of Head		115
Max. Head (Ft.)		75
Max. Temp. (F)		104
RPM		3450
Thermal Protection		Yes
Motor Type		Oil Filled
Bearing Type		Ball
Shaft Seal		Carbon/Ceramic
Standards		FM Approved
Warranty		3 yr.
