Pumps
>
Sump, Effluent and Sewage Pumps
>
Submersible Sewage Pumps

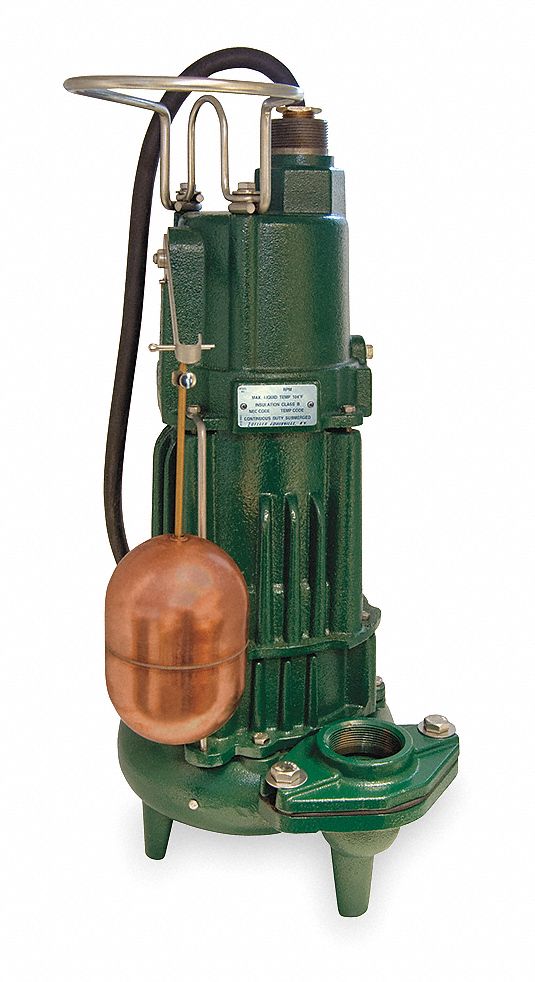

ZOELLER Explosion Proof Pump, 1 HP, 2 In NPT

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Explosion Proof Submersible Sewage Pump, 1 HP, Switch Type Vertical, Discharge NPT 2 In., Voltage 230, Amps 8.9, Housing Cast Iron, Base Material Cast Iron, Impeller Material Cast Iron, Shaft Seal Carbon/Ceramic, Height 25 3/16 In., Width 13 9/16 In., Cord Length 20 Ft., Max. Dia. Solids 2 In., Max. Temp. 104 F, Max. Head 35 Ft., On Point 19 1/2 In., Off Point 9 3/4 In., Thermal Protection, FM Approved

Grainger Item #	4HEX7
Price (ea.)	$2,791.00
Brand	ZOELLER
Mfr. Model #	DX284
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	125.0
Availability	Typically in Stock
Catalog Page No.	4039
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Explosion Proof Submersible Sewage Pump
Type		Automatic
HP		1
Switch Type		Vertical
Base Material		Cast Iron
Housing		Cast Iron
Top Material		Cast Iron
Impeller Material		Cast Iron
Shaft Material		SS
Voltage		230
Amps		8.9
Height (In.)		25-3/16
Dia. (In.)		13-9/16
Cord Length (Ft.)		20
Discharge NPT (In.)		2
Max. Dia. Solids (In.)		2
On Point (In.)		19-1/2
Off Point (In.)		9-3/4
GPM of Water @ 5 Ft. of Head		179
GPM of Water @ 10 Ft. of Head		157
GPM of Water @ 15 Ft. of Head		133
GPM of Water @ 20 Ft. of Head		106
GPM of Water @ 25 Ft. of Head		73
GPM of Water @ 30 Ft. of Head		42
Max. Head (Ft.)		35
Max. Temp. (F)		104
RPM		1750
Thermal Protection		Yes
Motor Type		Oil Filled
Bearing Type		Ball
Shaft Seal		Carbon/Ceramic
Standards		FM Approved
Warranty		3 yr.
