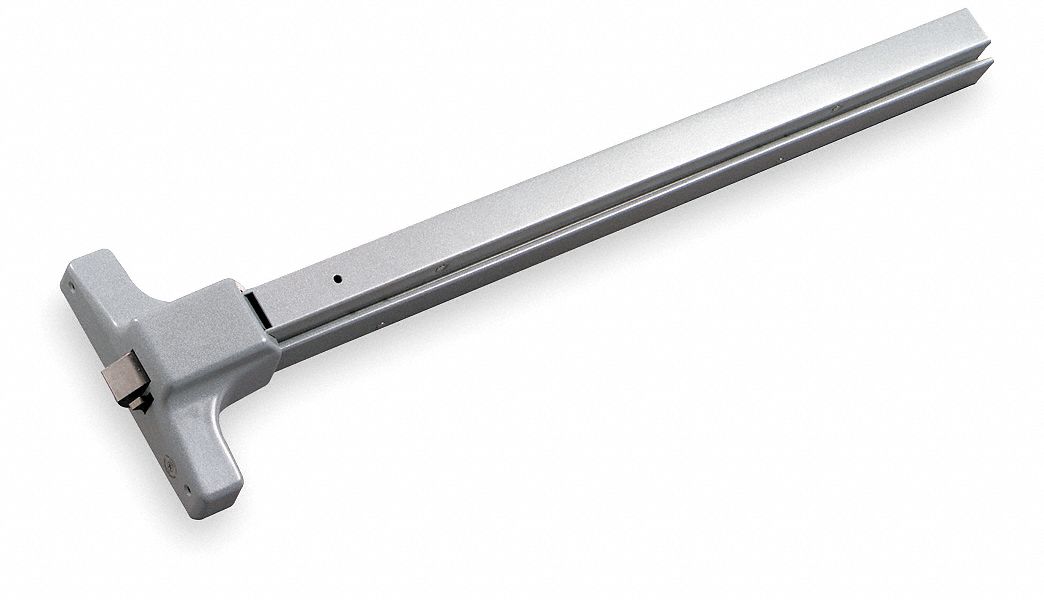

YALE Flat Bar Exit Device

Hardware
>
Supplies
>
Exit Devices and Outside Trim

Flat Bar Exit Device, Door Width 30-36 Inches, For Door Thickness 1 3/4 Inches, Type Rim, Finish Baked Aluminum, Not Handed

Grainger Item #	1H820
Price (ea.)	$299.00
Brand	YALE
Mfr. Model #	2100-SB
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	12.0
Availability	Ready to Ship
Catalog Page No.	2816
Country of Origin (Country of Origin is subject to change.)	USA

Enlarge Image

Qty.

Price shown may not reflect your price. Sign in or register.

When can I get it? Use your ZIP code to estimate availability.

Qty:
ZIP code:

Tech
Specs
Additional
Information
Compliance
& Restrictions
MSDS
Required
Accessories
Optional
Accessories
Alternate
Products
Repair
Parts

Item		Exit Device
Type		Rim Pullman Bolt
Finish		Aluminum Painted 689
For Door Thickness (In.)		1-3/4
Door Width (In.)		30 to 36
Hand		Nonhanded
Series		2100
Fire Rated (Hours)		No
Standards		UL Listed

Exit Devices
Nonfire-rated devices have a dogging feature that keeps the door unlatched, allowing traffic to enter and exit freely. Fire-rated devices are UL Listed for 3-hr. "A" labeled fire doors. Fit 1-3/4"- and 2-1/4"-thick doors up to 7-ft. high. Nonhanded. Include strike and mounting hardware. Heavy-duty devices have a hydraulic noise-dampening feature and a high-quality finish. Rim Pullman Bolt�Devices resist vandalism and have a 3/4" throw stainless steel latchbolt for single-point latching. A guardbolt deadlocks the latchbolt when door is closed and latched. Rim SquareBolt��Deadbolt-style, 1" throw latchbolt engages the roller strike with a flat surface for increased security. Stainless steel bolt design locks into place; resists shimming and door rattling/shaking. Surface Vertical Rod�2-point locking exit devices have an automatic deadlocking upper latchbolt with 3/4" throw and lower deadbolt with 5/8" throw. For doors taller than 7 ft., order Vertical Rod Extensions.

Meet ANSI/BHMA A156.3, Grade 1
UL Listed

There are currently no notes or restrictions for this item.

See Catalog 403 Page

for application and/or safety information.

This item does not require a Material Safety Data Sheet (MSDS).

There are currently no required accessories for this item.

Please wait while we process your request.

Item name:

Grainger Item #:

Quantity:

Extended Price:

Item #	Description	Brand Mfr. Model #	Availability	Price
1H809 Parts Info	Trim, Exit Device >More Details... Country of Origin: USA	YALE CA542 26D	Clearance - limited quantity available	$215.25



1H816	Cylinder/Pull Plate >More Details... Country of Origin: USA	YALE 217-SB	Ready to Ship	$45.00



1H813	Trim, Exit Device >More Details... Country of Origin: USA	YALE AU546 26D	Ready to Ship	$245.00



5T804 Parts Info	Fire Rated Lever Plate >More Details... Country of Origin: USA	YALE AU626F-RH-US32D	Ready to Ship	$391.00

Item #	Description	Brand Mfr. Model #	Availability	Price
1H819 Parts Info	Flat Bar Exit Device >More Details... Country of Origin: USA	YALE 2100-BL	Ready to Ship	$259.25

Repair Parts Information is available for this item.
