Power Transmission
>
Speed Reducers
>
Speed Reducers

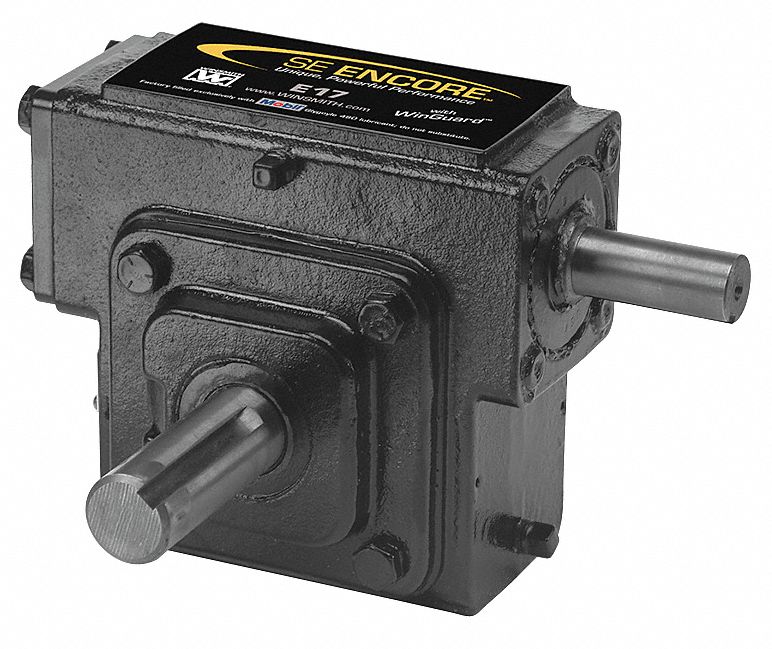

WINSMITH Indirect Drive Right Angle Dual Shaft

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Speed Reducer, Indirect Drive, Right Angle Shaft Orientation, Washdown Duty, 1725 Input RPM, 115 Nominal Output RPM, Worm Center Distance 3.00 In, Solid Input Shaft NEMA/IEC Frame, Overhung Load 1350 Lb, 15:1 Nominal Ratio, Max Torque 2578 In-Lb, Output Torque @ 15 HP 763 In-Lb, Output Torque @ 2 HP 1017 In-Lb, Output Torque @ 3 HP 1525 In-Lb, Output Torque @ 5 HP 2542 In-Lb, Reversible Rotation, Universal Mounting, Dual Shaft Assembly, Output Shaft Dia 1.375 In, Output Shaft Height 3.50 In

Grainger Item #	4GCA9
Price (ea.)	$961.50
Brand	WINSMITH
Mfr. Model #	E30XWNS 15:1
UNSPSC #	26111503
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	52.5
Availability	Typically in Stock
Catalog Page No.	134
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Speed Reducer
Type		Indirect Drive
Shaft Orientation		Right Angle
Duty		Washdown
Input RPM		1725
Nominal Output RPM		115
NEMA/IEC Frame		Solid Input Shaft
Overhung Load (Lb.)		1350
Nominal Ratio		15:1
Max. Input HP		5
Max. Torque (In.-Lbs.)		2542
Output Torque @ 1.5 HP (In.-Lb.)		763
Output Torque @ 2 HP (In.-Lb.)		1017
Output Torque @ 3 HP (In.-Lb.)		1525
Output Torque @ 5 HP (In.-Lb.)		2542
Number of Stages		1
Rotation		Reversible
Mounting		Universal
Lubrication		Mobil Glygoyle(R) 460
Gearing		Worm
Housing		Cast Iron
Finish		Black Epoxy Coating System
Shaft Assembly		Dual
Shaft Configuration		Solid Input
Output Shaft Dia. (In.)		1.375
Output Shaft Height (In.)		3.50
