Pneumatics
>
Air Compressors and Vacuum Pumps
>
Piston Air Compressor/Vacuum Pump

30 HP, 0.39 CFM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Vacuum/Compressor Pump, Portable, Oil-Free, 0.033 HP, Voltage 115V AC, 60 Hz, 1 Phase, 1.6 Full Load Amps, FNPT Inlet Hosebarb, 3/16 In ID Hose In., FNPT Outlet Hosebarb, 3/16 In ID Hose In., Max. PSI Cont./Int. 33, Max. Vacuum 21.3 Hg, @ 20 Vac (in Hg) 0.39, Length 7.6 In., Width 4.5 In., Height 7.5 In., PPS Cylinder Material, 2 Cylinders, Motor Type Shaded Pole, Sound Rating 52 dBA, WOBL Piston Design, Temp. Range 40 to 104F, Power Cord 120VAC

Grainger Item #	3DUU5
Price (ea.)	$421.50
Brand	WELCH
Mfr. Model #	2511B-01
UNSPSC #	40151601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.59
Availability	Typically in Stock
Catalog Page No.	4016
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

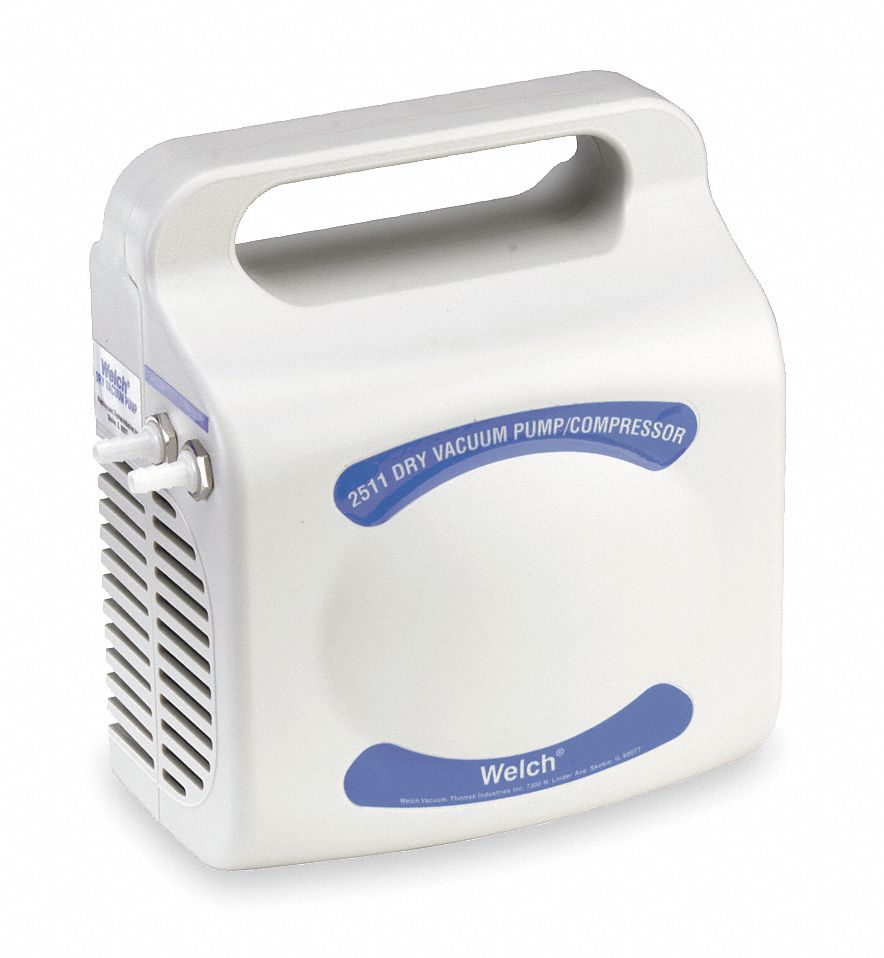

Compressor/Vacuum Pump, 1/30 HP, 0.39 CFM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Piston Air Compressor/Vacuum Pump
Type		Portable, Oil-Free
HP		1/30
Voltage		115
Hz		60
Phase		1
Full Load Amps		1.6
(F)NPT Inlet (In.)		Hose Barb, 3/16" ID Hose
(F)NPT Outlet (In.)		Hose Barb, 3/16" ID Hose
Max. PSI Cont./Int.		33
Max. Vacuum (In. Hg)		21.3
Free Air CFM @ 20 Vac (in Hg)		0.39
Length (In.)		7.6
Width (In.)		4.5
Height (In.)		7.5
Cylinder Material		PPS
Cylinders		2
Motor Type		Shaded Pole
RPM		2900
Sound Rating		52 dBA
Design		Wob-L Piston
Finish		Off-White Resin
Temp. Range		40 to 104F
Thermal Protection		Yes
Power Cord		120VAC
Application		Utility Vacuum, Sampling, Vacuum Filtration
