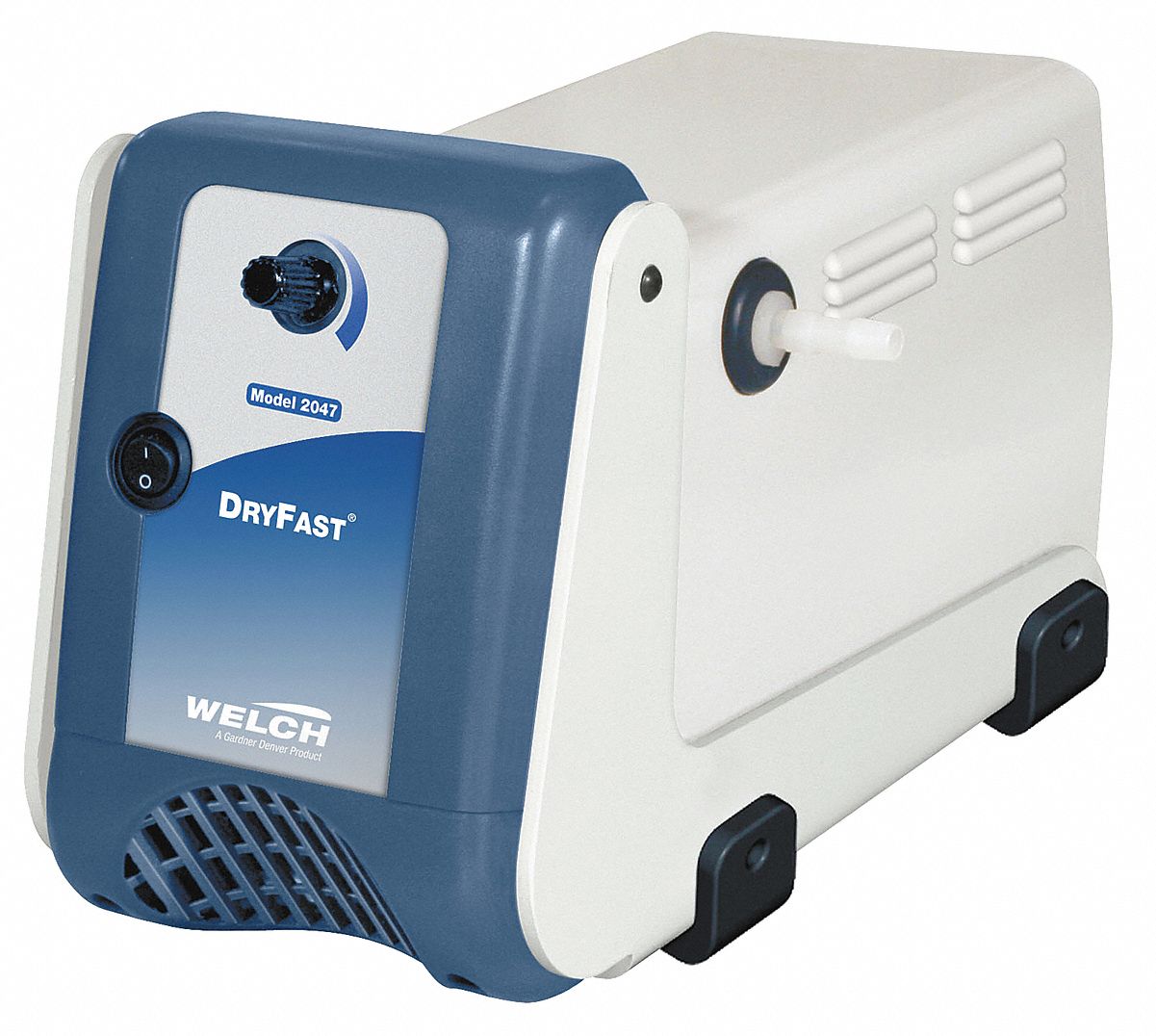

WELCH VACUUM PUMP 1/5 HP 2.5 CFM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

VACUUM PUMP MEDIUM RANGE 1/5 HP VOLTAGE 115 1.3 AMPS AC 60 HZ 1 PHASE END VACUUM 28.5 INCHES HG DISPLACEMENT 2.5 NPT INLET M1/4 TUBE INSIDE DIA 1/4 IN MOTOR TYPE IP21 1725 RPM MAX DBA 56 WHITE/BLUE METAL/RESIN FINISH INCLUDES 115V PLUG

Grainger Item #	5JMT5
Price (ea.)	$2,839.00
Brand	WELCH
Mfr. Model #	2047B-01
UNSPSC #	40151502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	22.8
Availability	Typically in Stock
Catalog Page No.	4016
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Vacuum Pump
Type		Medium Range
HP		1/5
Voltage		115
Amps AC		1.3
Hz		60
Phase		1
End Vacuum		28.5" Hg
Displacement		2.5 cfm
Free Air CFM @ 0 Vacuum		2.5
Free Air CFM @ 20 Vac		2.45" Hg
NPT Inlet		M1/4"
Length		13.8"
Height		8.8"
Width		6.8"
Motor Type		IP21
RPM		1725
Max. dBA		56
Finish		White/Blue Metal/Resin
Filter		Yes
Ballast		Yes
Valve Type		Bleed
Application		Resin Transfer Molding
Features		PTFE
Includes		115V Plug
