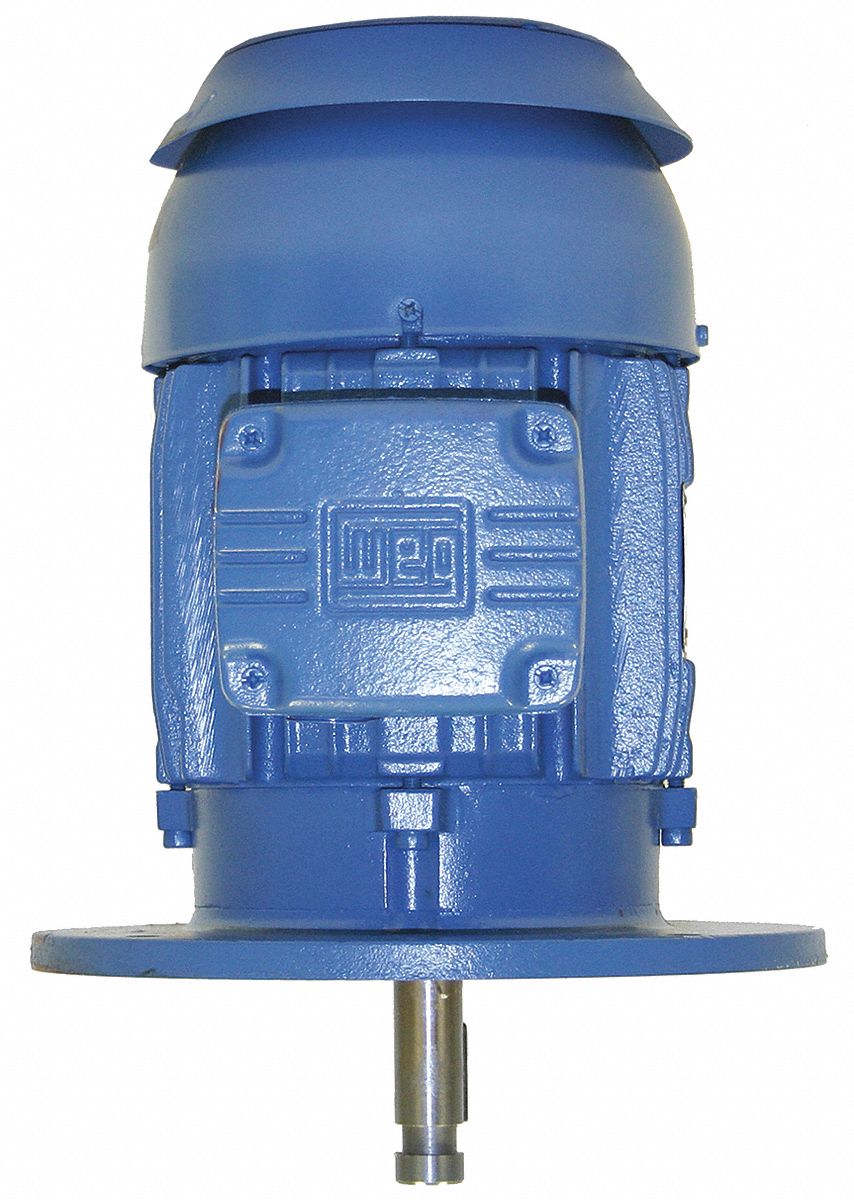

WEG Pump Motor, 30 HP, 3520 RPM, 230/460 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Vertical Pump Motor, 3-Phase, Totally Enclosed Fan-Cooled, 30 HP, 3520 Nameplate RPM, 286HPH NEMA/IEC Frame, CW/CCW Rotation, Voltage 230/460, Full Load Amps 74.8-67.6/33.8, Phase 3, 60 Hz, Flange Mounting, Vertical Mounting Position, Regreasable Ball Bearings, Frame Material Cast-Iron, Blue Enamel Finish, P-Base Base, Thermal Protection None, Service Factor 1.25, Ambient Temperature 40 Degrees C, Shaft Dia. 1-5/8 In., Shaft Length 4-1/2 In., Length Less Shaft 25-1/8 In.

Grainger Item #	3EAH7
Price (ea.)	$4,567.00
Brand	WEG
Mfr. Model #	03036EP3E286HPH
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	468.0
Availability	Item ships within 11 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Vertical Pump Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		30
Nameplate RPM		3520
NEMA/IEC Frame		286HPH
Frame		286HPH
Rotation		CW/CCW
Voltage		230/460
Full Load Amps		74.8-67.6/33.8
Phase		3
Hz		60
Mounting		Flange
Mounting Position		Vertical
Bearings		Regreasable Ball
Frame Material		Cast-Iron
Finish		Blue Enamel
Base		P-Base
Thermal Protection		None
Service Factor		1.25
Ambient Temperature		40 Degrees C
Shaft Dia.		1-5/8"
Shaft Length		4-1/2"
Length Less Shaft		25-1/8"
Overall Length		29-5/8"
Insulation Class		F
RPM Range		2350-3600
Duty		Inverter
Nominal Efficiency		91.0
Efficiency Group		EPAct
Standards		UL, CSA, CE
NEMA Standard		Inverter NEMA MG 1 Part 30: 100:1 Variable and 20:1 Constant Torque
Warranty		1-1/2 yr.
