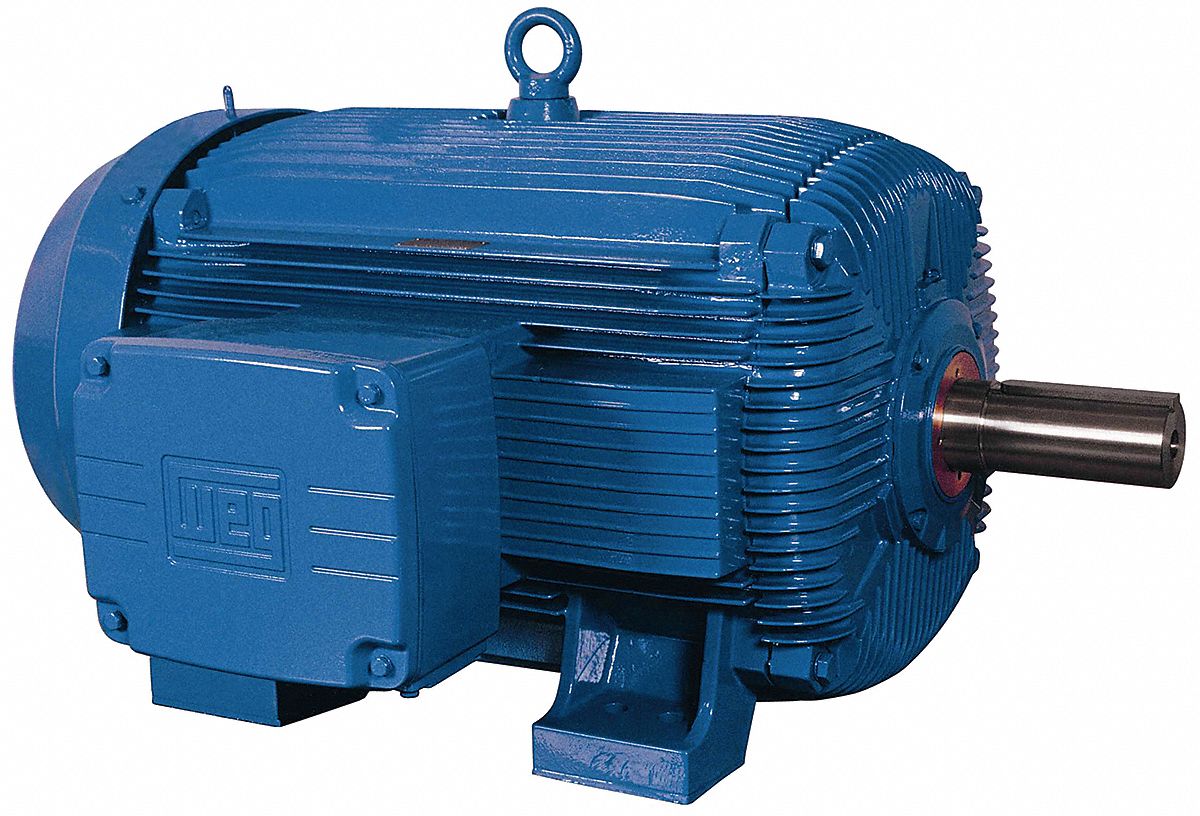

WEG Crusher Mtr, 100 HP, 1775 RPM, 230/460

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Rock Crusher Motor, 3-Phase, Totally Enclosed Fan-Cooled, 100 HP, 1775 Nameplate RPM, 405T NEMA/IEC Frame, CW/CCW Rotation, Voltage 230/460, 207.0-230.0/115.0 Full Load Amps, 3 Phase, 60 Hz, Foot Mounting, Horizontal Mounting Position, Regreasable Roller Bearings, Cast Iron Frame Material, Synthetic Alkyd Resin Base Dark Gray Enamel, Thermal Protection None, 1.25 Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 2-7/8 In., Shaft Length 7-1/4 In., Length Less Shaft 30-13/16 In.

Grainger Item #	5DWA1
Price (ea.)	$8,025.00
Brand	WEG
Mfr. Model #	10018EP3ERB405T
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1273.0
Availability	Item ships within 11 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $999.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Rock Crusher Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		100
Nameplate RPM		1775
NEMA/IEC Frame		405T
Frame		405T
Rotation		CW/CCW
Voltage		230/460
Full Load Amps		207.0-230.0/115.0
Phase		3
Hz		60
Mounting		Foot
Mounting Position		Horizontal
Bearings		Regreasable Roller
Frame Material		Cast Iron
Finish		Synthetic Alkyd Resin Base Dark Gray Enamel
Thermal Protection		None
Service Factor		1.25
Ambient Temperature		40 Degrees C
Shaft Dia.		2-7/8"
Shaft Length		7-1/4"
Length Less Shaft		30-13/16"
Overall Length		38-1/16"
Insulation Class		F
Duty		Inverter
Part Wind Start Capable		Yes (230V)
Nominal Efficiency		94.5
Efficiency Group		EPAct
Base		Rigid
Standards		UL Recognized (E104590), CSA Certified (LR38324)
Warranty		1-1/2 yr.
