Motors
>
Definite Purpose AC Motors
>
Power Tool Motors

WEG Arbor Motor, 7.5 HP, 1720 RPM, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Metric Saw Arbor Motor, 3-Phase, Totally Enclosed Fan-Cooled, 7-1/2 HP, 1720 Nameplate RPM, 90L NEMA/IEC Frame, Voltage 208-230/460, 60 Hz, 3 Phase, 22.4-20.3/10.1 Full Load Amps, Mounting Foot, Thermal Protection None, Insulation Class F, 1.0 Service Factor, Bearings Ball, Ambient Temperature 40 Degrees C, CCW Rotation, Length Less Shaft 24 In., Shaft Dia. 30mm, Shaft Length 2-1/2 In., Standards UL Recognized (E104590), CSA Certified (LR50.962-9/13/14), CE, Includes PG Threaded Terminal Box

Grainger Item #	4GCJ5
Price (ea.)	$1,597.00
Brand	WEG
Mfr. Model #	00718ES3ESA90LR
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	173.0
Availability	Typically in Stock
Catalog Page No.	44
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

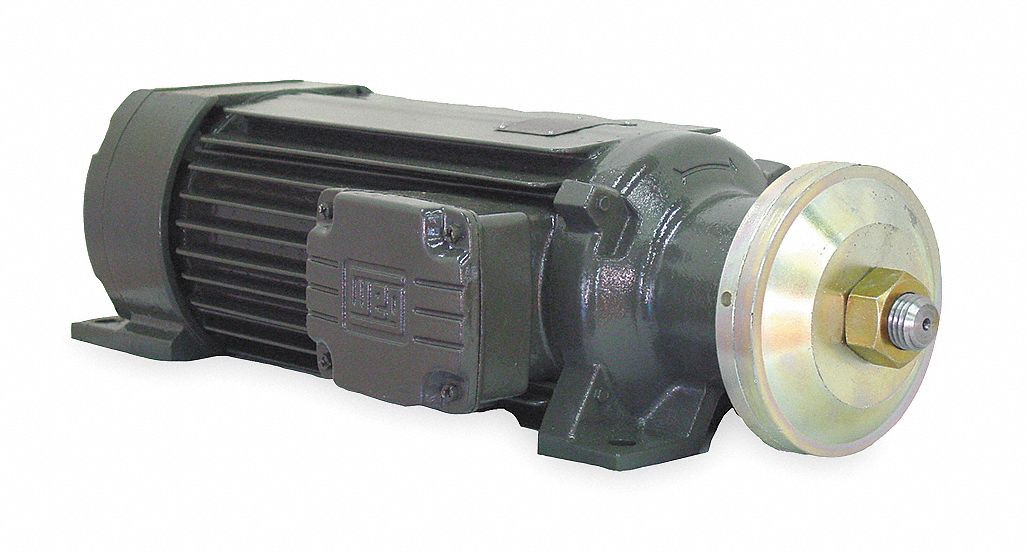

Arbor Motor, 7.5 HP, 1720 RPM, 208-230/460V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Metric Saw Arbor Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		7-1/2
Nameplate RPM		1720
NEMA/IEC Frame		90L
Frame		90L
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		22.4-20.3/10.1
Mounting		Foot
Thermal Protection		None
Insulation Class		F
Service Factor		1.0
Bearings		Ball
Ambient Temperature		40 Degrees C
Rotation		CCW
Length Less Shaft		24"
Shaft Dia.		30mm
Shaft Length		2-1/2"
RPM Range		1400-1800
Standards		UL Recognized (E104590), CSA Certified (LR50.962-9/13/14), CE
Includes		PG Threaded Terminal Box
