WEG Motor, 3 Ph, 25 HP, 1175, 460V, 324T, Eff 93.0

| Write a Review
| Read all Reviews
| Read all Ask & Answer

IEEE 841 Motor, 3-Phase, 25 HP, Nameplate RPM 1180, Voltage 460, 324T Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 30.4, 60 Hz, Foot Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 29-5/8 In., Shaft Dia. 2-1/8 In., Shaft Length 5-1/4 In.

Grainger Item #	6AGW9
Price (ea.)	$4,659.00
Brand	WEG
Mfr. Model #	02512ST3QIE324T-W22
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	546.0
Availability	Typically in Stock
Catalog Page No.	26
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

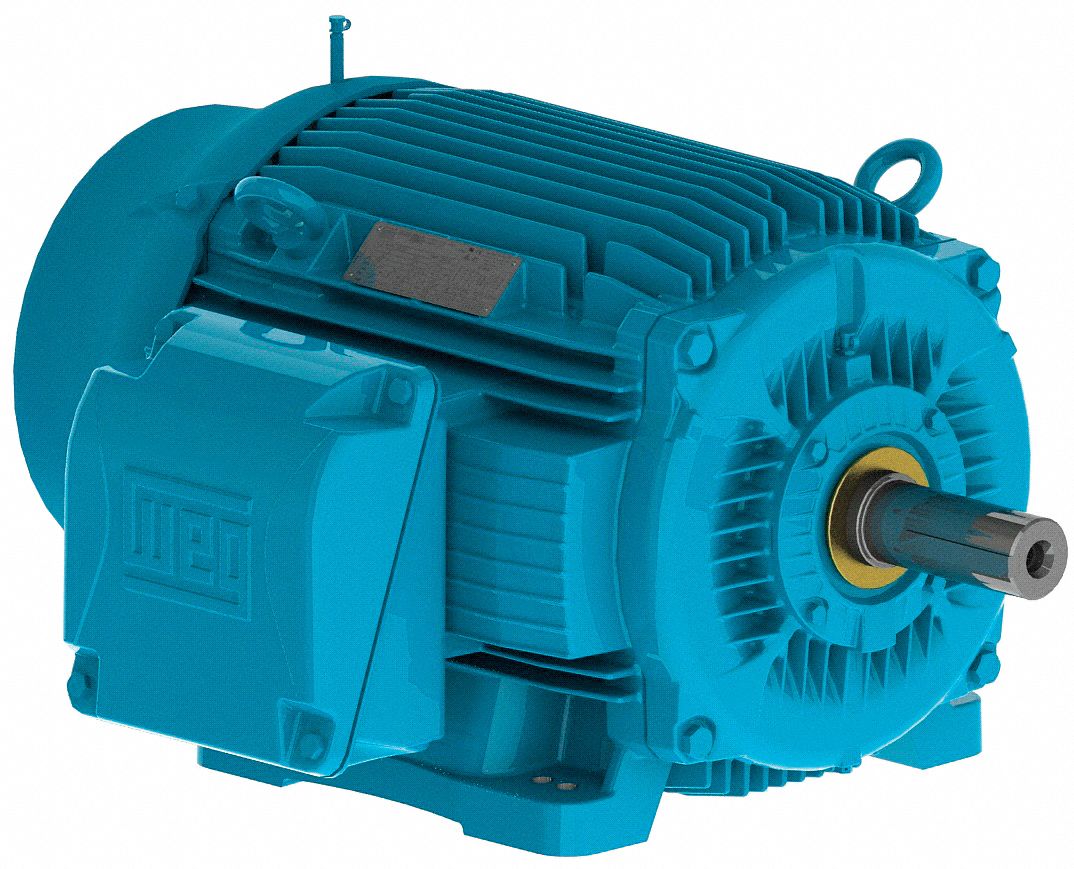

Motor, 3 Ph, 25 HP, 1175, 460V, 324T, Eff 93.0

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		IEEE 841 Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		25
Nameplate RPM		1180
NEMA/IEC Frame		324T
Frame		324T
Voltage		460
Hz		60
Phase		3
Full Load Amps		30.4
Number of Speeds		1
Mounting		Foot
Mounting Position		Horizontal/Vertical
Thermal Protection		None
Insulation Class		F
Service Factor		1.25
Bearings		Ball
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		2-1/8"
Shaft Length		5-1/4"
Length Less Shaft		24-3/8"
Overall Length		29-5/8"
Shaft Type		Keyed
RPM Range		1000-1380
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		NEMA Premium(R)
Nominal Efficiency		93.0%
Inverter Rated		Yes
Warranty (Years)		5
