Motors
>
Definite Purpose AC Motors
>
Hazardous Location Motors

WEG Hazardous Loc Mtr, 3 Ph, TEFC, 10 HP, T4

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hazardous Location Motor, 3-Phase, Totally Enclosed Fan-Cooled, 10 HP, 3535 Nameplate RPM, 215T NEMA/IEC Frame, NEMA Design B, CW/CCW Rotation, Voltage 208-230/460, Full Load Amps 26.5-24.0/12.0, Phase 3, 60 Hz, Foot Mounting, Ball Bearings, Frame Material Cast Iron, Thermal Protection T Stat, Service Factor 1.15, Hazardous Location Class 1 C, D / 2 F, G, Max. Ambient Temp. 40 Degrees C, Temp. Code T4, Shaft Dia. 1-3/8 In., Shaft Length 3-3/8 In., Overall Length 19-7/16 In.F Insulation Class

Grainger Item #	4YPU6
Price (ea.)	$2,220.00
Brand	WEG
Mfr. Model #	01036XT3E215T
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	204.0
Availability	Typically in Stock
Catalog Page No.	30
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

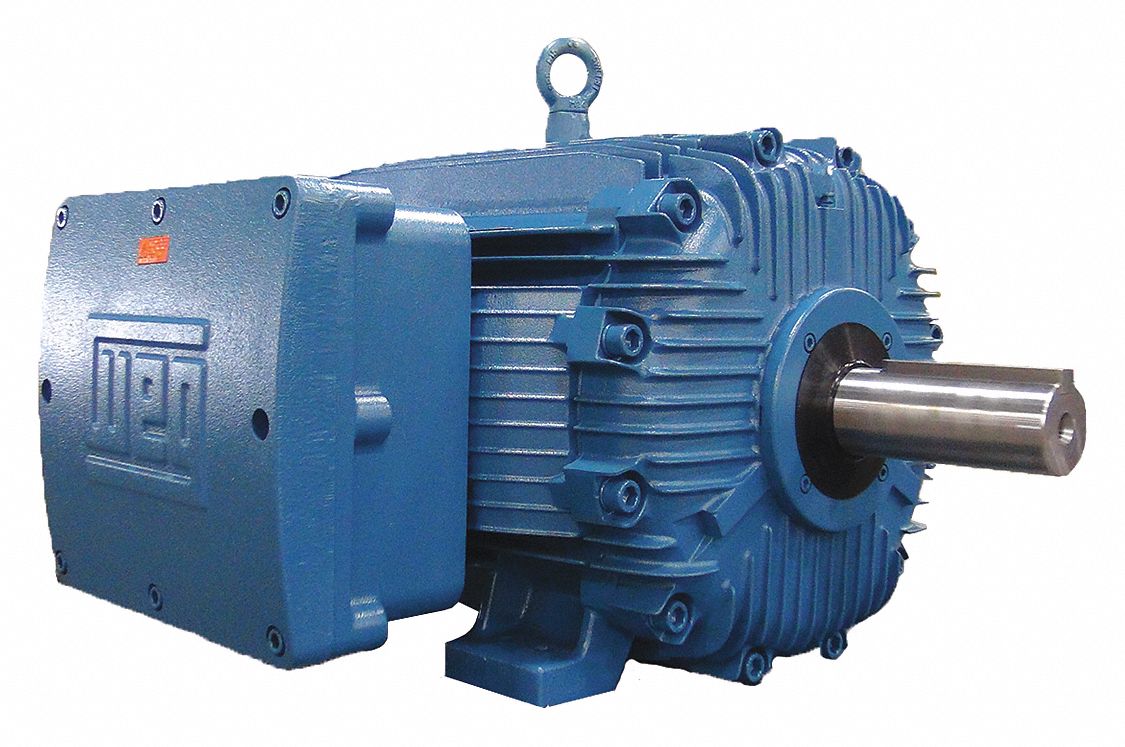

Hazardous Loc Mtr, 3 Ph, TEFC, 10 HP, T4

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hazardous Location Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		10
Nameplate RPM		3535
NEMA/IEC Frame		215T
Frame		215T
NEMA Design		B
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		26.5-24.0/12.0
Phase		3
Hz		60
Mounting		Foot
Bearings		Ball
Frame Material		Cast Iron
Thermal Protection		T Stat
Service Factor		1.15
Hazardous Location Class		1 C,D / 2 F,G
Max. Ambient Temp.		40 Degrees C
Temp. Code		T4
Shaft Dia.		1-3/8"
Shaft Length		3-3/8"
Length Less Shaft		16-1/16"
Overall Length		19-7/16"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Nominal Efficiency		90.2%
Efficiency Group		NEMA Premium
Standards		UL Listed (E87848), CSA Certified (LR50962)
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
