WEG Mtr, 3 Ph, 60 HP, 1775, 208-230/460, Eff 95.0

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 60 HP, Nameplate RPM 1775, Voltage 208-230/460, 364/5T Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 151.0-137.0/68.3, 60 Hz, Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 34-1/4 In., Shaft Dia. 2-3/8 In., Shaft Length 5-7/8 In.

Grainger Item #	6AJE9
Price (ea.)	$5,499.00
Brand	WEG
Mfr. Model #	06018ET3E364T-W22
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	950.0
Availability	Typically in Stock
Catalog Page No.	17
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

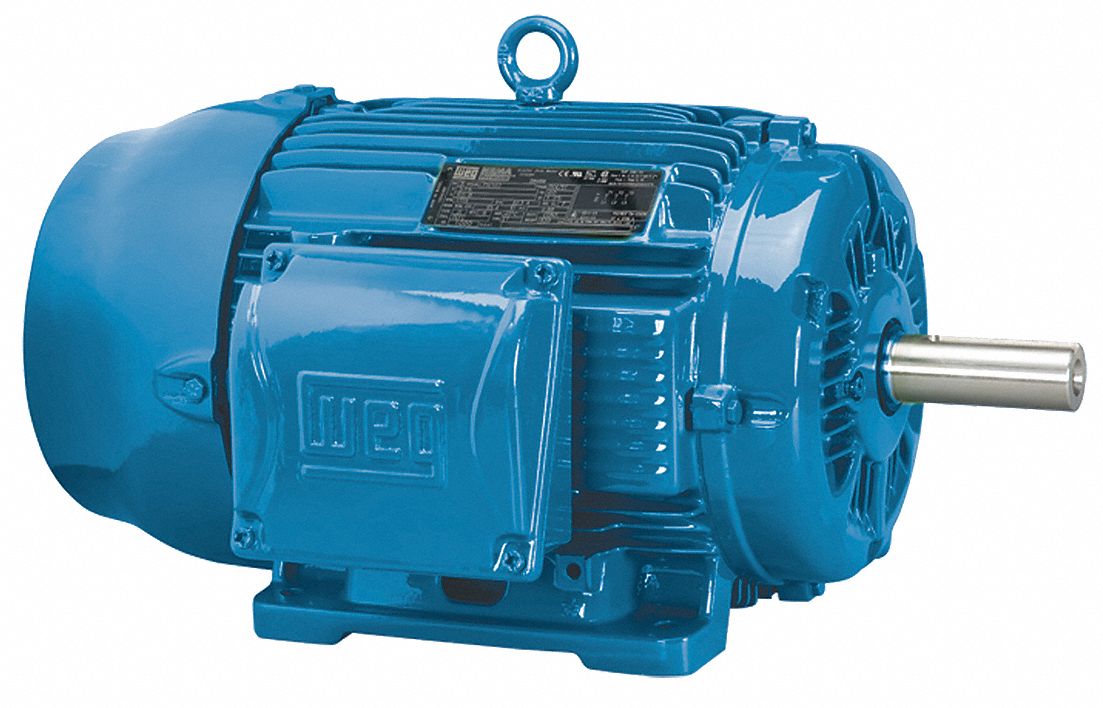

Mtr, 3 Ph, 60 HP, 1775, 208-230/460, Eff 95.0

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		60
Nameplate RPM		1775
NEMA/IEC Frame		364/5T
Frame		364/5T
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		151.0-137.0/68.3
Number of Speeds		1
Mounting		Base
Mounting Position		Horizontal
Thermal Protection		None
Insulation Class		F
Service Factor		1.25
Bearings		Ball
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		2-3/8"
Shaft Length		5-7/8"
Length Less Shaft		28-3/8"
Overall Length		34-1/4"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		High Efficiency and NEMA Premium(R)
Nominal Efficiency		95.0%
Warranty (Years)		3
Footnotes		23
