WEG Motor, 3 Ph, 5 HP, 3490, 575V, 182T, Eff 88.5

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 5 HP, Nameplate RPM 3490, Voltage 575, 182T Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 4.94, 60 Hz, Foot Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 13-1/2 In., Shaft Dia. 1-1/8 In., Shaft Length 2-3/4 In.

Grainger Item #	4HCD8
Price (ea.)	$528.00
Brand	WEG
Mfr. Model #	00536OT3H182T
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	61.0
Availability	Typically in Stock
Catalog Page No.	25
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

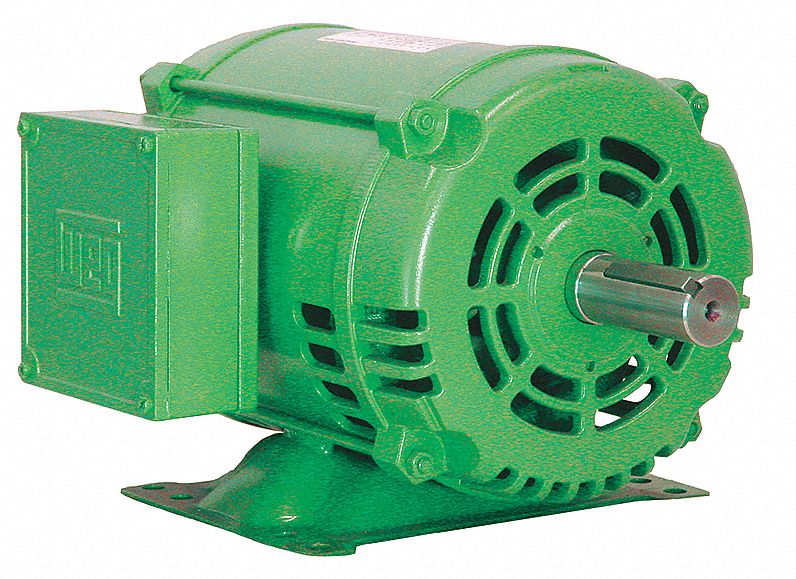

Motor, 3 Ph, 5 HP, 3490, 575V, 182T, Eff 88.5

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		5
Nameplate RPM		3490
NEMA/IEC Frame		182T
Frame		182T
Voltage		575
Hz		60
Phase		3
Full Load Amps		4.94
Number of Speeds		1
Mounting		Foot
Mounting Position		Horizontal
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Rolled Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1-1/8"
Shaft Length		2-3/4"
Length Less Shaft		10-3/4"
Overall Length		13-1/2"
Shaft Type		Keyed
RPM Range		2350-3600
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		NEMA Premium(R)
Nominal Efficiency		88.5%
Warranty (Years)		3
Green Certification or Other Recognition		NEMA Premium Rated
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
