Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

WEG Mtr, 3 Ph, 1 HP, 3470, 208-230/460V, Eff 74.0

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 1 HP, Nameplate RPM 3470, Voltage 208-230/460, B56 Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 3.20-3.11/1.55, 60 Hz, Foot Mounting, Thermal Protection None, Insulation Class B, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 11-1/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	1EBV8
Price (ea.)	$286.25
Brand	WEG
Mfr. Model #	00136OS3EB56
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	20.85
Availability	Typically in Stock
Catalog Page No.	16
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

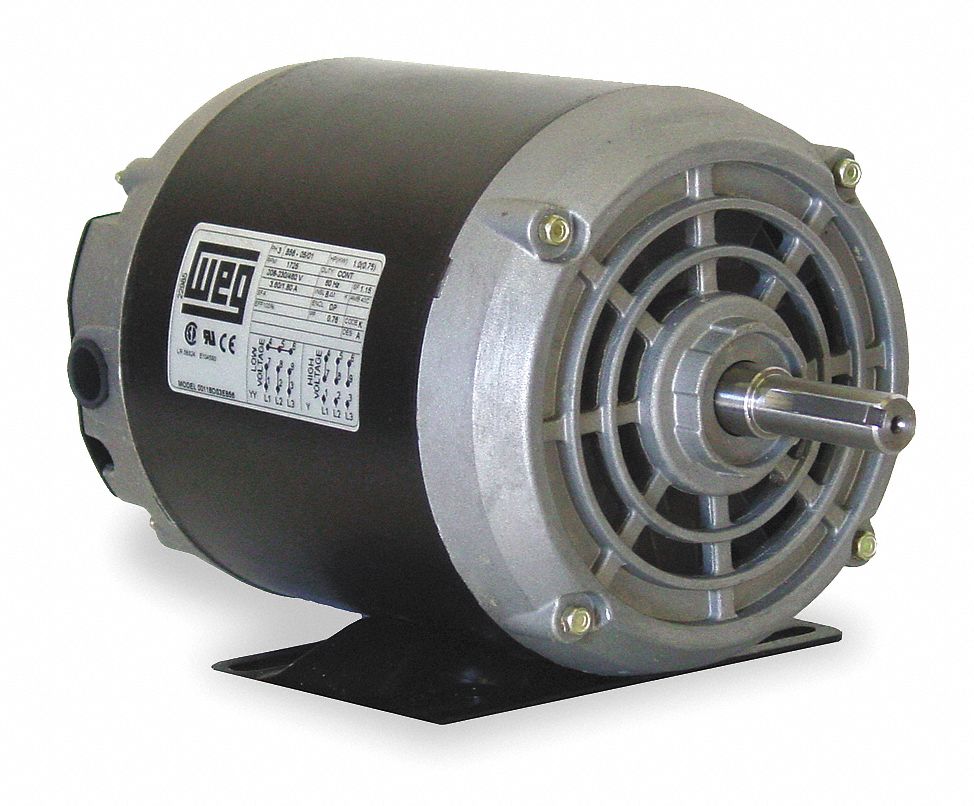

Mtr, 3 Ph, 1 HP, 3470, 208-230/460V, Eff 74.0

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		1
Nameplate RPM		3470
NEMA/IEC Frame		56
Frame		B56
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		3.20-3.11/1.55
Number of Speeds		1
Mounting		Foot
Mounting Position		Horizontal
Thermal Protection		None
Insulation Class		B
Service Factor		1.25
Bearings		Ball
Frame Material		Rolled Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		9-1/4"
Overall Length		11-1/8"
Shaft Type		Keyed
RPM Range		2350-3600
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		Standard
Nominal Efficiency		74.0%
Warranty (Years)		1-1/2

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	1EBD6	Mtr, 3 Ph, 1 HP, 3450, 208-230/460V, Eff 80.0 >More Details... Country of Origin: Not Available	WEG 00136ES3EB56	Typically in Stock	$236.75
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.

	3N178 Parts Info	Mtr, 3 Ph, 1 HP, 3450, 208-230/460V, Eff 74.0 >More Details... Country of Origin: Mexico	DAYTON 3N178	Typically in Stock	$354.75
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
