WEG Mtr, 3 Ph, 2 HP, 1730, 208-230/460V, Eff 84.0

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 2 HP, Nameplate RPM 1740, Voltage 208-230/460, 56C Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 6.15-5.80/2.90, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 13-7/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	1EBN8
Price (ea.)	$401.00
Brand	WEG
Mfr. Model #	00218ES3EF56C
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	46.35
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

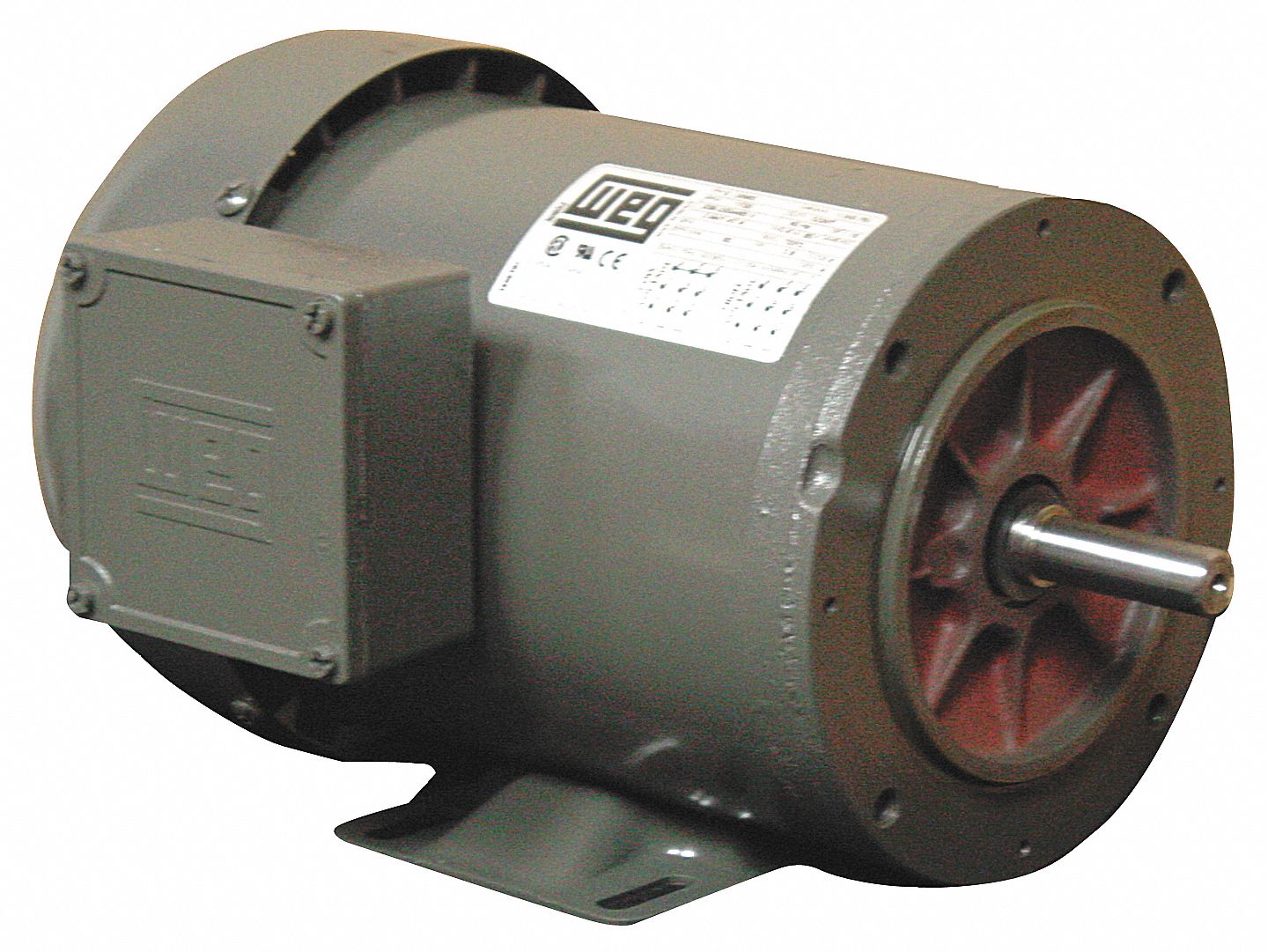

Mtr, 3 Ph, 2 HP, 1730, 208-230/460V, Eff 84.0

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		2
Nameplate RPM		1740
NEMA/IEC Frame		56C
Frame		56C
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		6.15-5.80/2.90
Number of Speeds		1
Mounting		Face/Base
Mounting Position		Horizontal
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Rolled Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		11-9/16"
Overall Length		13-7/8"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		Standard
Nominal Efficiency		84.0%
Warranty (Years)		1
