Motors
>
General Purpose AC Motors
>
General Purpose AC Motors

WEG Mtr, 3 Ph, 1 HP, 3450, 208-230/460V, Eff 80.0

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 1 HP, Nameplate RPM 3440, Voltage 208-230/460, B56 Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 3.0-2.8/1.4, 60 Hz, Foot Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 11-1/8 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	1EBD6
Price (ea.)	$236.75
Brand	WEG
Mfr. Model #	00136ES3EB56
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	28.0
Availability	Typically in Stock
Catalog Page No.	17
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

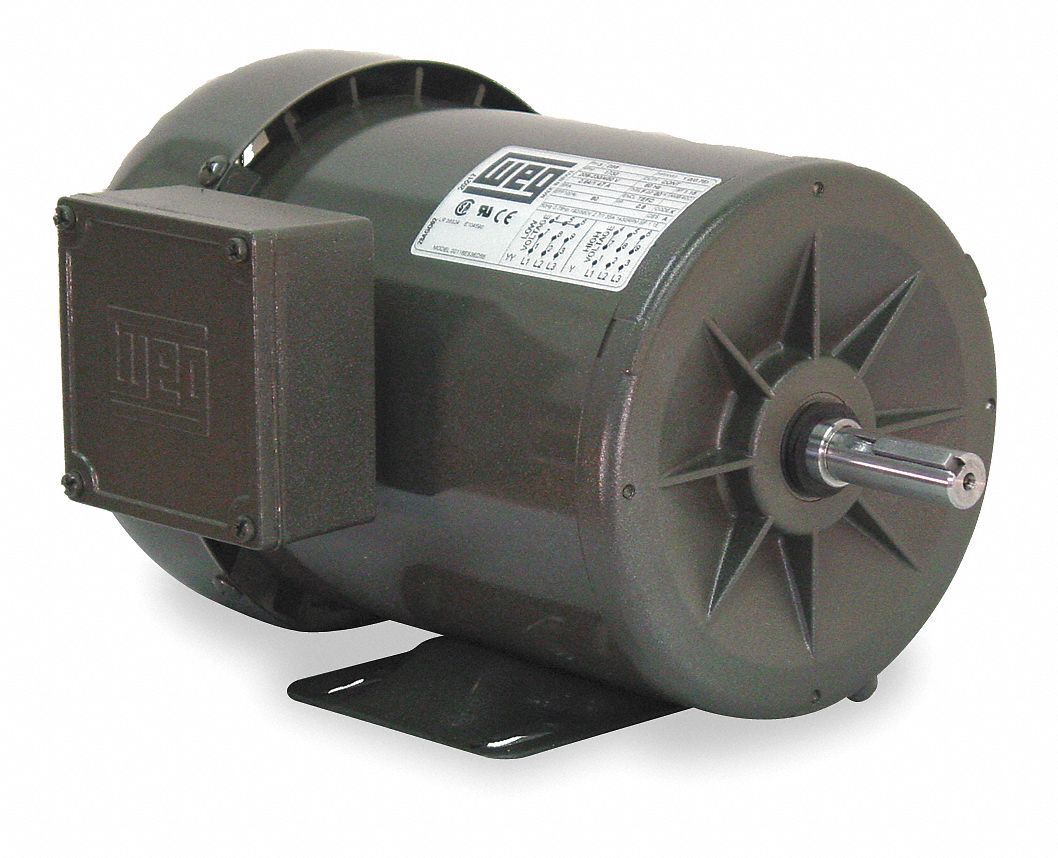

Mtr, 3 Ph, 1 HP, 3450, 208-230/460V, Eff 80.0

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1
Nameplate RPM		3440
NEMA/IEC Frame		56
Frame		B56
Voltage		208-230/460
Hz		60
Phase		3
Full Load Amps		3.0-2.8/1.4
Number of Speeds		1
Mounting		Foot
Mounting Position		Horizontal
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Rolled Steel
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Length Less Shaft		9-1/4"
Overall Length		11-1/8"
Shaft Type		Keyed
RPM Range		2350-3600
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		Standard
Nominal Efficiency		80.0%
Warranty (Years)		1-1/2
