WEG GP Mtr, 3 Ph, ODP, 3 HP, 1800 rpm, 182TC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 3 HP, Nameplate RPM 1800, Voltage 208-230/460, 182TC Frame, Open Dripproof, Number of Speeds 1, Full Load Amps 4.06, 60/50 Hz, Foot Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 13-1/2 In., Shaft Dia. 1-1/8 In., Shaft Length 2-3/4 In.

Grainger Item #	12N912
Price (ea.)	$597.00
Brand	WEG
Mfr. Model #	00318OT3E182TC
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	70.55
Availability	Typically in Stock
Catalog Page No.	20
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $99.95 each.
Price shown may not reflect your price. Sign in or register.

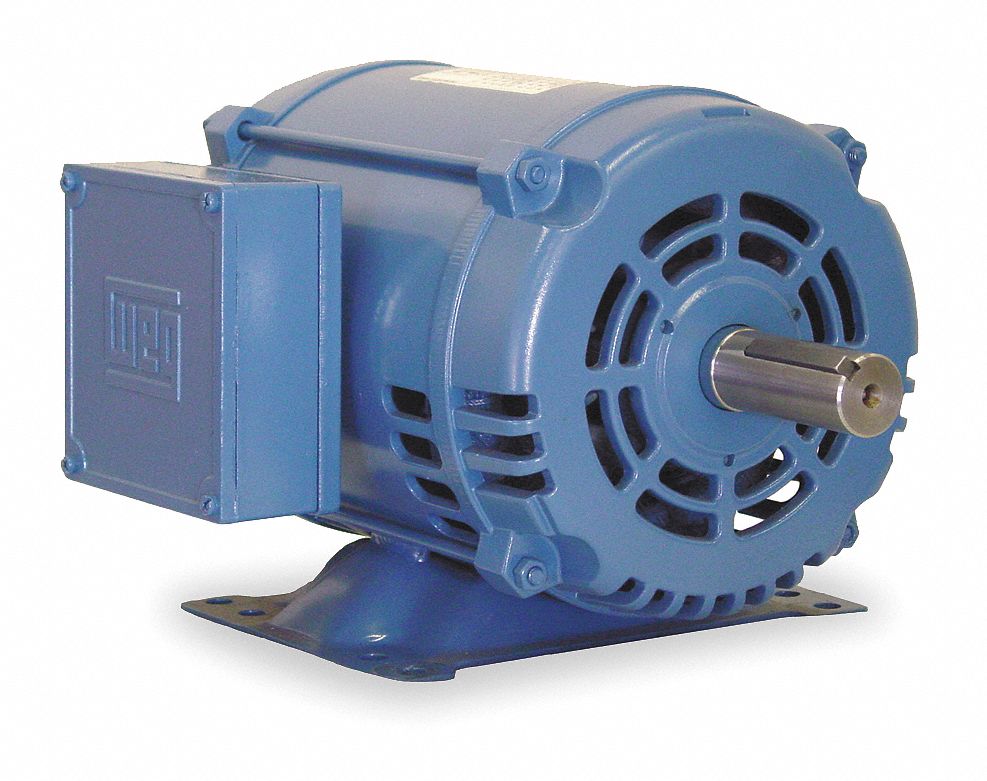

GP Mtr, 3 Ph, ODP, 3 HP, 1800 rpm, 182TC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		3
Nameplate RPM		1800
NEMA/IEC Frame		182TC
Frame		182TC
Voltage		208-230/460
Hz		60/50
Phase		3
Full Load Amps		4.06
Number of Speeds		1
Mounting		Foot
Thermal Protection		None
Insulation Class		F
Service Factor		1.15
Bearings		Ball
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1-1/8"
Shaft Length		2-3/4"
Length Less Shaft		10-3/4"
Overall Length		13-1/2"
Shaft Type		Keyed
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Nominal Efficiency		89.5%
Warranty (Years)		3
Footnotes		4:1 CT and 10:1 VT
