WEG GP Mtr, 3 Ph, TEFC, 1-1/2 HP, 3600 rpm, 143TC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 1-1/2 HP, Nameplate RPM 3600, Voltage 575, 143TC Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 1.58, 60/50 Hz, Foot Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 12-3/8 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In.

Grainger Item #	12N885
Price (ea.)	$486.25
Brand	WEG
Mfr. Model #	00156ET3H143TC-W22
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	40.8
Availability	Item ships within 11 business days from supplier
Catalog Page No.	25
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

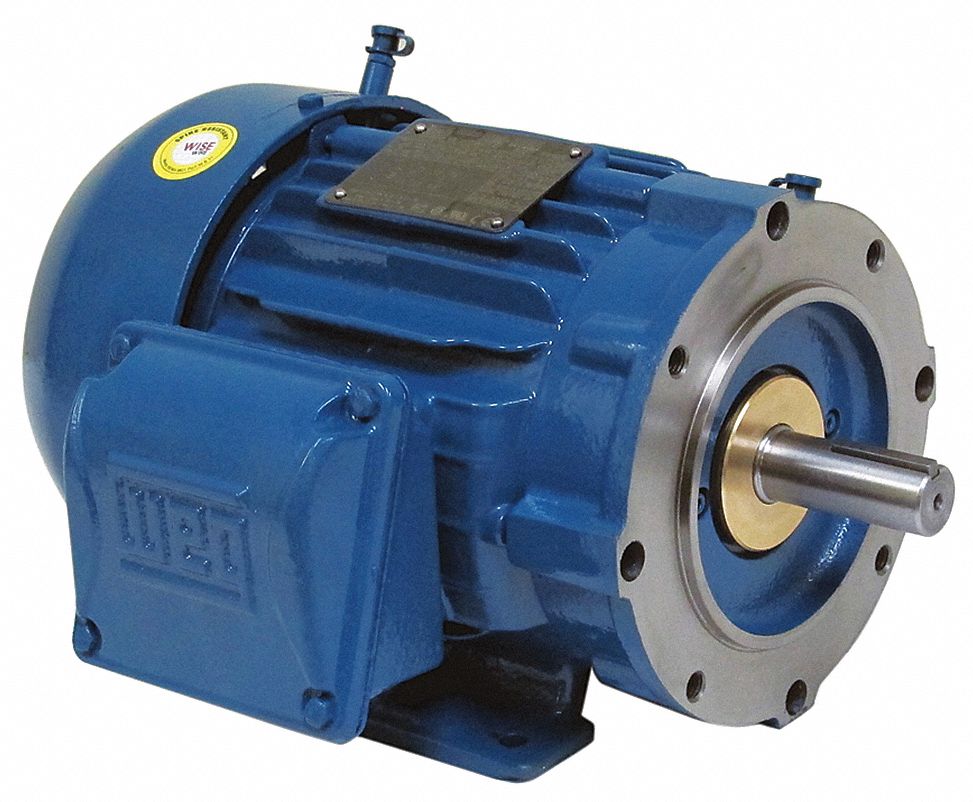

GP Mtr, 3 Ph, TEFC, 1-1/2 HP, 3600 rpm, 143TC

Enlarge Image

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1-1/2
Nameplate RPM		3600
NEMA/IEC Frame		143TC
Frame		143TC
Voltage		575
Hz		60/50
Phase		3
Full Load Amps		1.58
Number of Speeds		1
Mounting		Foot
Thermal Protection		None
Insulation Class		F
Service Factor		1.25
Bearings		Ball
Frame Material		Cast Iron
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Length Less Shaft		10-1/8"
Overall Length		12-3/8"
Shaft Type		Keyed
RPM Range		2350-3600
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Nominal Efficiency		84.0%
Warranty (Years)		3
Footnotes		20:1 CT and 1000:1 VT
