Motors
>
Definite Purpose AC Motors
>
Cooling Tower Motors

460 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Cooling Tower Motor, 3-Phase, Totally Enclosed Fan-Cooled, 1-1/2 HP, 1760 Nameplate RPM, NEMA/IEC Frame 145T, CW/CCW Rotation, 208-230/460 Voltage, 4.4-4.0/2.0 Full Load Amps, 3 Phase, 60 Hz, Base Mounting, Mounting Position Horizontal or Shaft Up, Bearings Double-Shielded Ball, Frame Material Cast-Iron, None Thermal Protection, 1.25 Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 7/8 In., Shaft Length 2-1/4 In., Length Less Shaft 11-1/8 In., Overall Length 13-3/8 In.

Grainger Item #	2VEY8
Price (ea.)	$862.50
Brand	WEG
Mfr. Model #	00158ET3ECT145T
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	50.57
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

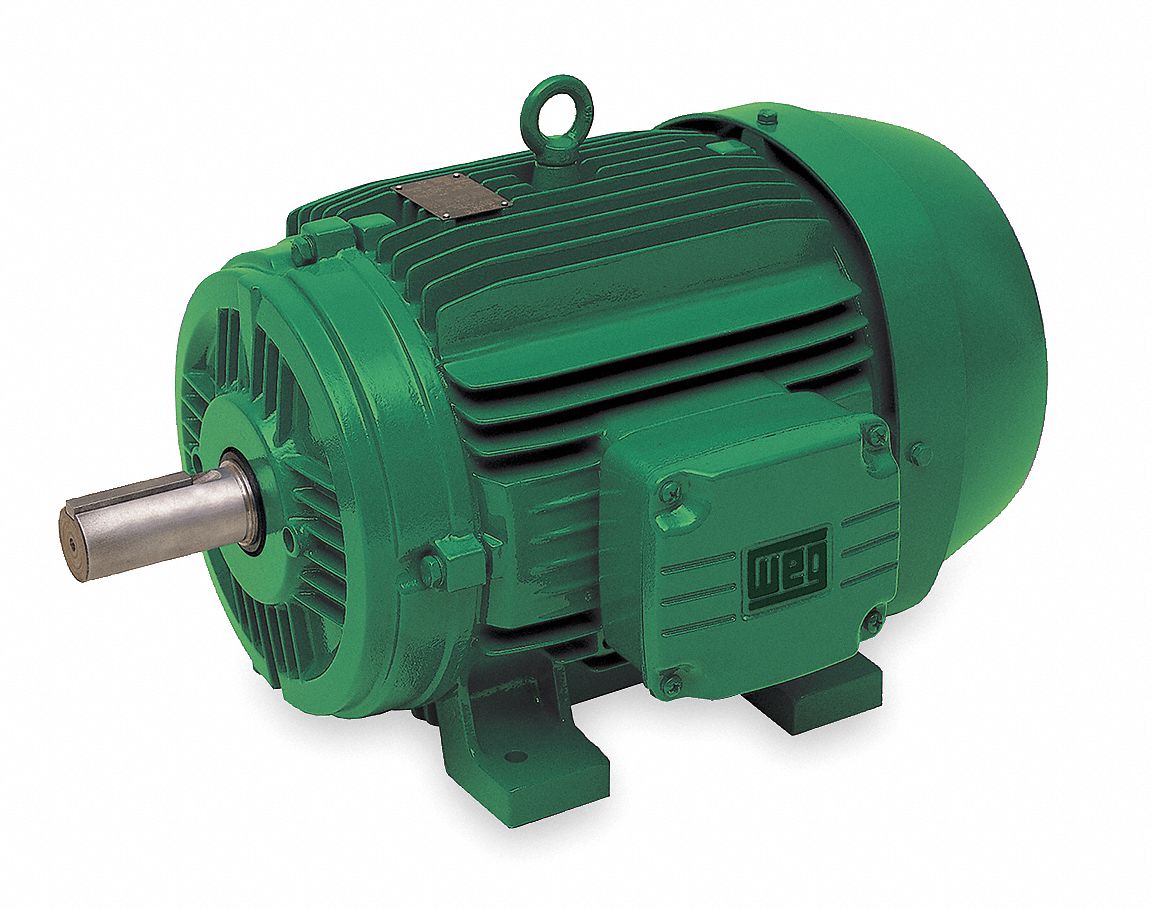

CT Motor, 1-1/2 HP, 1760 RPM, 208-230/460 V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Cooling Tower Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		1-1/2
Nameplate RPM		1760
NEMA/IEC Frame		145T
Frame		145T
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		4.4-4.0/2.0
Phase		3
Hz		60
Mounting		Base
Mounting Position		Horizontal or Shaft Up
Bearings		Double-Shielded Ball
Frame Material		Cast-Iron
Thermal Protection		None
Service Factor		1.25
Ambient Temperature		40 Degrees C
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Length Less Shaft		11-1/8"
Overall Length		13-3/8"
Insulation Class		F
RPM Range		1400-1800
Duty		Inverter
Nominal Efficiency		86.5
Efficiency Group		NEMA Premium
Finish		Green
Standards		UL Recognized (E104590), CSA Certified (LR38324), CE
Warranty		3 yr.
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
