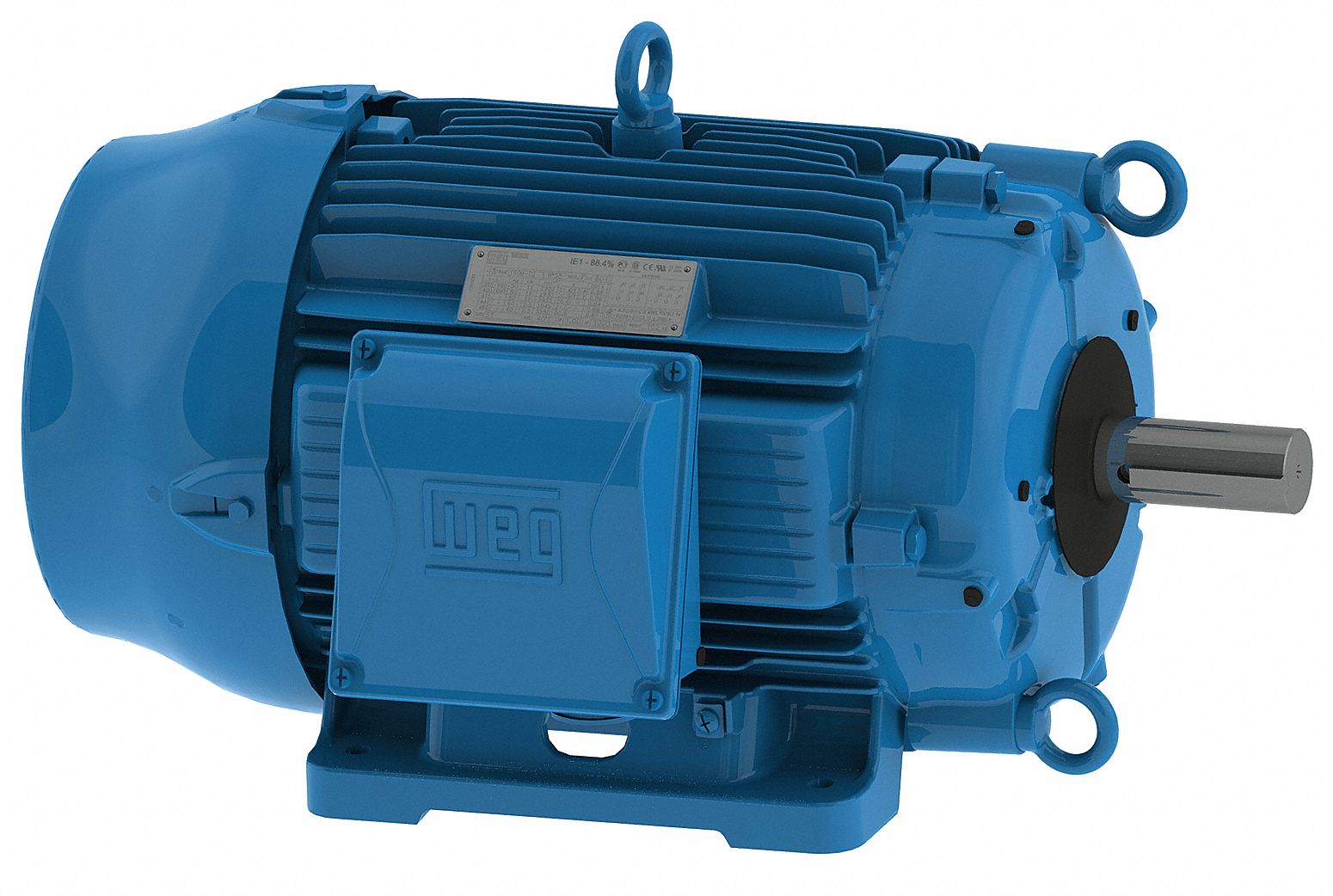

WEG CT Motor, 7-1/2 HP, 1765 RPM, 200 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Cooling Tower Motor, 3-Phase, Totally Enclosed Fan-Cooled, 7-1/2 HP, 1765 Nameplate RPM, NEMA/IEC Frame 213T, CW/CCW Rotation, 200 Voltage, 20.7 Full Load Amps, 3 Phase, 60/50 Hz, Base Mounting, Mounting Position Horizontal or Shaft Up, Bearings Double-Shielded Ball, Frame Material Cast-Iron, None Thermal Protection, 1.25 Service Factor, Ambient Temperature 40 Degrees C, Shaft Dia. 1-3/8 In., Shaft Length 3-3/8 In., Length Less Shaft 15-5/8 In., Overall Length 18 In., Insulation Class F

Grainger Item #	19C679
Price (ea.)	$1,308.00
Brand	WEG
Mfr. Model #	00718ET3PCT213TF1-W2
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	165.0
Availability	Item ships within 11 business days from supplier
Catalog Page No.	24
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Cooling Tower Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		7-1/2
Nameplate RPM		1765
NEMA/IEC Frame		213T
Frame		213T
Rotation		CW/CCW
Voltage		200
Full Load Amps		20.7
Phase		3
Hz		60/50
Mounting		Base
Mounting Position		Horizontal or Shaft Up
Bearings		Double-Shielded Ball
Frame Material		Cast-Iron
Thermal Protection		None
Service Factor		1.25
Ambient Temperature		40 Degrees C
Shaft Dia.		1-3/8"
Shaft Length		3-3/8"
Length Less Shaft		15-5/8"
Overall Length		18"
Insulation Class		F
RPM Range		1400-1800
Duty		Inverter
Nominal Efficiency		91.7
Efficiency Group		NEMA Premium
Finish		Blue
Standards		UL Recognized (E104590), CSA Certified (LR38324), CE
Warranty		3 yr.
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
