Motors
>
Pump Motors
>
Close-Coupled Pump Motors

WEG Pump Mtr, 3-Ph, 3hp, 1760, 208-230/460, 182JM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Close-Coupled Pump Motor, 3-Phase, 3 HP, Nameplate RPM 1760, Voltage 208-230/460, 3 Phase, Frame 182JM, Totally Enclosed Fan-Cooled, Full Load Amps 8.58-7.76/3.88, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.25, Regreasable Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 16 In., Shaft Dia. 7/8 In., Shaft Length 4-1/8 In., Frame Material Cast Iron

Grainger Item #	6FKC9
Price (ea.)	$1,029.00
Brand	WEG
Mfr. Model #	00318ET3E182JM-W22
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	95.0
Availability	Typically in Stock
Catalog Page No.	46
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

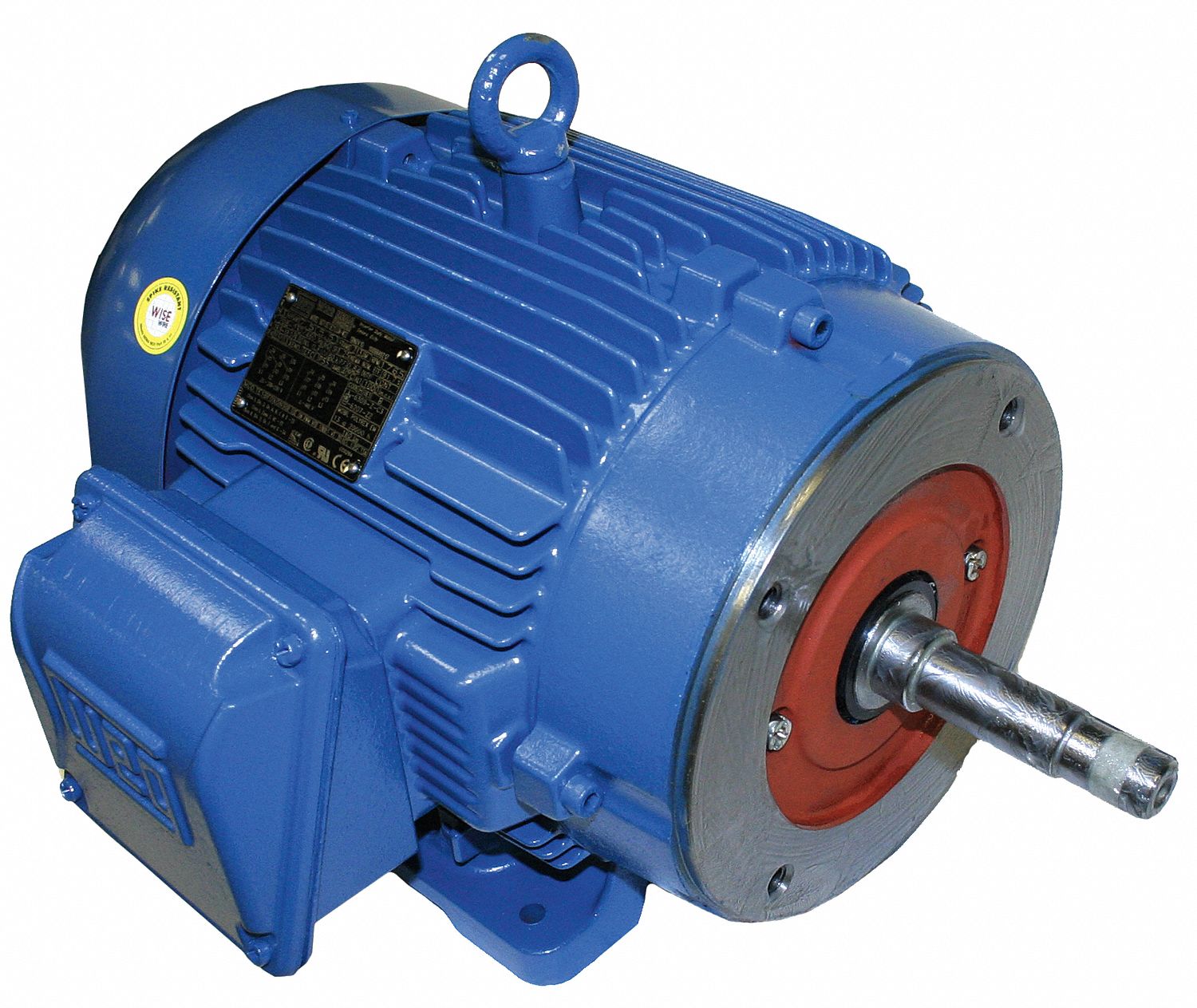

Pump Mtr, 3-Ph, 3hp, 1760, 208-230/460, 182JM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Close-Coupled Pump Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		3
Nameplate RPM		1760
NEMA/IEC Frame		182JM
Frame		182JM
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		8.58-7.76/3.88
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Regreasable Ball
Frame Material		Cast Iron
Thermal Protection		None
Service Factor		1.25
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		7/8"
Shaft Length		4-1/8"
Shaft Type		JM Threaded
Length Less Shaft		11-7/8"
Overall Length		16"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Nominal Efficiency		89.5%
Efficiency Group		NEMA Premium
Inverter Rated		1000:1 Variable, 20:1 Constant Torque
Standards		UL Recognized, CSA Certified, CE Compliant
