Motors
>
Pump Motors
>
Close-Coupled Pump Motors

WEG Pump Mtr, 3ph, 50hp, 3550, 208-230/460, 326JM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Close-Coupled Pump Motor, 3-Phase, 50 HP, Nameplate RPM 3550, Voltage 208-230/460, 3 Phase, Frame 326JM, Totally Enclosed Fan-Cooled, Full Load Amps 99.9-111/55.5, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.25, Regreasable Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 29-5/8 In., Shaft Dia. 1-1/4 In., Shaft Length 5-1/4 In., Frame Material Cast Iron

Grainger Item #	4EVE7
Price (ea.)	$6,455.00
Brand	WEG
Mfr. Model #	05036ET3E326JM
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	613.0
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

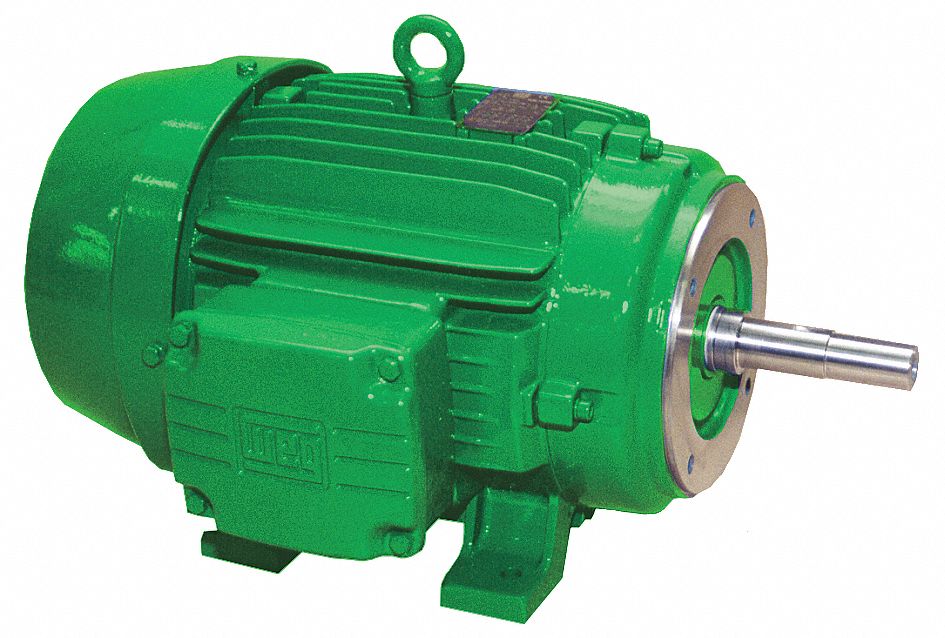

Pump Mtr, 3ph, 50hp, 3550, 208-230/460, 326JM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Close-Coupled Pump Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		50
Nameplate RPM		3550
NEMA/IEC Frame		326JM
Frame		326JM
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		99.9-111/55.5
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Regreasable Ball
Frame Material		Cast Iron
Thermal Protection		None
Service Factor		1.25
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		1-1/4"
Shaft Length		5-1/4"
Shaft Type		JM Threaded
Length Less Shaft		24-3/8"
Overall Length		29-5/8"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Nominal Efficiency		94.1%
Efficiency Group		NEMA Premium
Inverter Rated		Yes
Standards		UL Recognized, CSA Certified, CE Compliant
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
