Motors
>
Pump Motors
>
Close-Coupled Pump Motors

WEG PumpMtr, 3ph, 2hp, 1720, 208-230/460, 143/5JM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Close-Coupled Pump Motor, 3-Phase, 2 HP, Nameplate RPM 1720, Voltage 208-230/460, 3 Phase, Frame 143/5JM, Open Dripproof, Full Load Amps 5.95-5.80/2.90, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 15-3/8 In., Shaft Dia. 7/8 In., Shaft Length 4-1/4 In., Frame Material Rolled Steel

Grainger Item #	4EUT6
Price (ea.)	$630.00
Brand	WEG
Mfr. Model #	00218OT3E145JM
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	48.2
Availability	Typically in Stock
Catalog Page No.	46
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

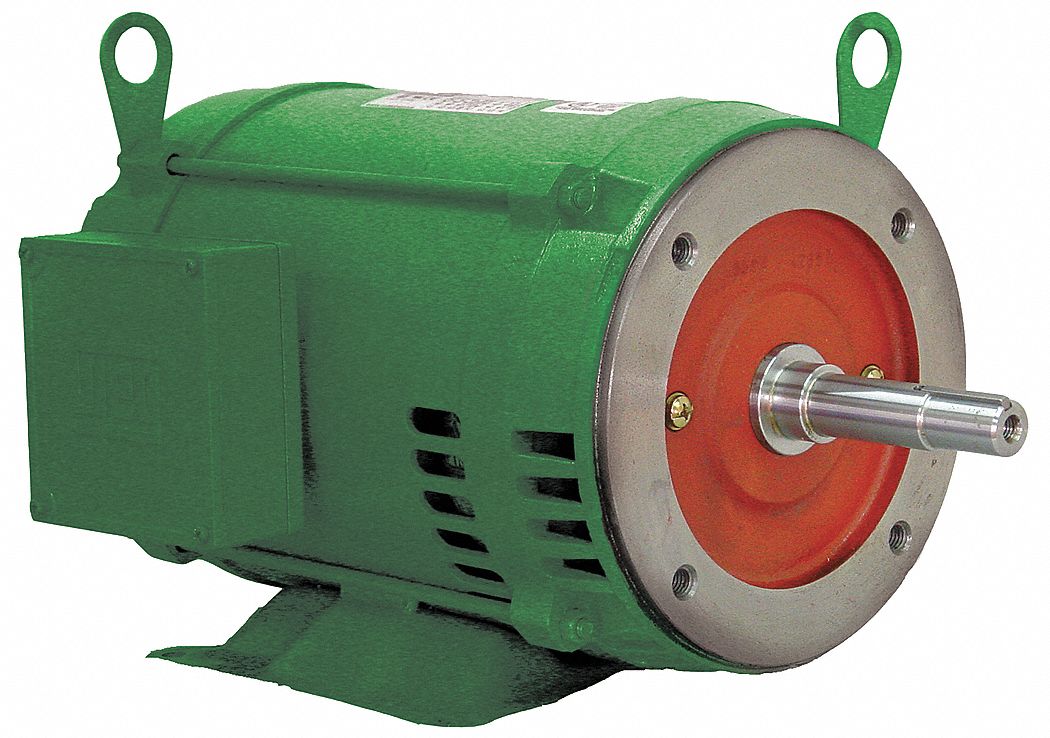

PumpMtr, 3ph, 2hp, 1720, 208-230/460, 143/5JM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Close-Coupled Pump Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		2
Nameplate RPM		1720
NEMA/IEC Frame		143/5JM
Frame		143/5JM
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		5.95-5.80/2.90
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Rolled Steel
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		7/8"
Shaft Length		4-1/4"
Shaft Type		JM Threaded
Length Less Shaft		11-1/8"
Overall Length		15-3/8"
Insulation Class		F
RPM Range		1400-1800
Duty		Continuous
Nominal Efficiency		86.5%
Efficiency Group		NEMA Premium
Inverter Rated		1000:1 Variable, 20:1 Constant Torque
Standards		UL Recognized, CSA Certified, CE Compliant
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
