WEG Pump Mtr, 3ph, 30hp, 3530, 208-230/460, 284JP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Close-Coupled Pump Motor, 3-Phase, 30 HP, Nameplate RPM 3530, Voltage 208-230/460, 3 Phase, Frame 284JP, Open Dripproof, Full Load Amps 63.4-70.4/35.2, 60 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.15, Ball Bearings, Max. Ambient Temp. 40 Degrees C, CW/CCW Rotation, Overall Length 27-1/8 In., Shaft Dia. 1-1/4 In., Shaft Length 8-1/8 In., Frame Material Cast Iron

Grainger Item #	4EUP1
Price (ea.)	$3,458.00
Brand	WEG
Mfr. Model #	03036OT3E284JP
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	366.0
Availability	Typically in Stock
Catalog Page No.	46
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

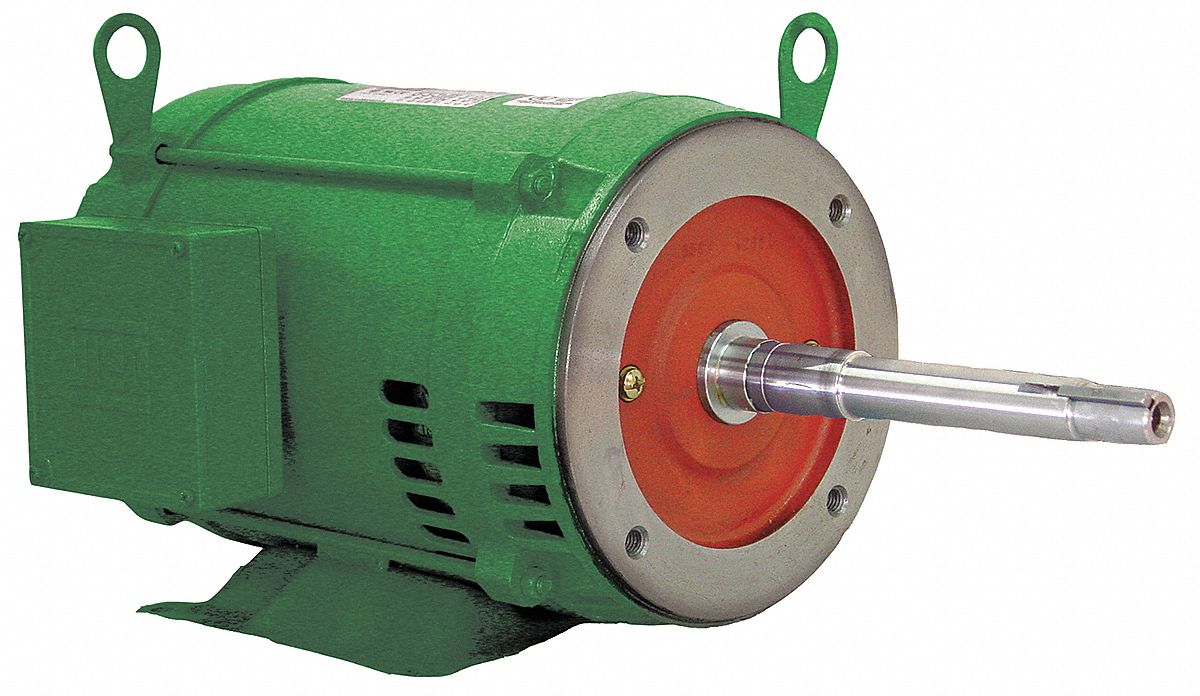

Pump Mtr, 3ph, 30hp, 3530, 208-230/460, 284JP

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Close-Coupled Pump Motor
Motor Type		3-Phase
Enclosure		Open Dripproof
HP		30
Nameplate RPM		3530
NEMA/IEC Frame		284JP
Frame		284JP
Rotation		CW/CCW
Voltage		208-230/460
Full Load Amps		63.4-70.4/35.2
Phase		3
Hz		60
Mounting		Face/Base
Bearings		Ball
Frame Material		Cast Iron
Thermal Protection		None
Service Factor		1.15
Max. Ambient Temp.		40 Degrees C
Shaft Dia.		1-1/4"
Shaft Length		8-1/8"
Shaft Type		JP Threaded
Length Less Shaft		19"
Overall Length		27-1/8"
Insulation Class		F
RPM Range		2350-3600
Duty		Continuous
Nominal Efficiency		92.4%
Efficiency Group		NEMA Premium
Inverter Rated		1000:1 Variable, 20:1 Constant Torque
Standards		UL Recognized, CSA Certified, CE Compliant
Green Environmental Attribute		Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition		NEMA Premium Rated
