Motors
>
Definite Purpose AC Motors
>
Air Compressor Motors

WEG Air Compr Mtr, 5 HP, 3460rpm, 208-230V, 56HZ

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Compressor Motor, Capacitor-Start, Open Dripproof, 5 HP, Nameplate RPM 3460, 56HZ Frame, Voltage 208-230, 60 Hz, 1 Phase, Full Load Amps 21.0-19.0, Base Mounting, Thermal Protection Manual, Insulation Class B, 1.0 Service Factor, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CCWSE, Overall Length 14-1/4 In., Shaft Dia. 7/8 In., Shaft Length 2-1/4 In.

Grainger Item #	13L298
Price (ea.)	$469.00
Brand	WEG
Mfr. Model #	00536OS1CCDG56HZ
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	47.15
Availability	Typically in Stock
Catalog Page No.	41
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

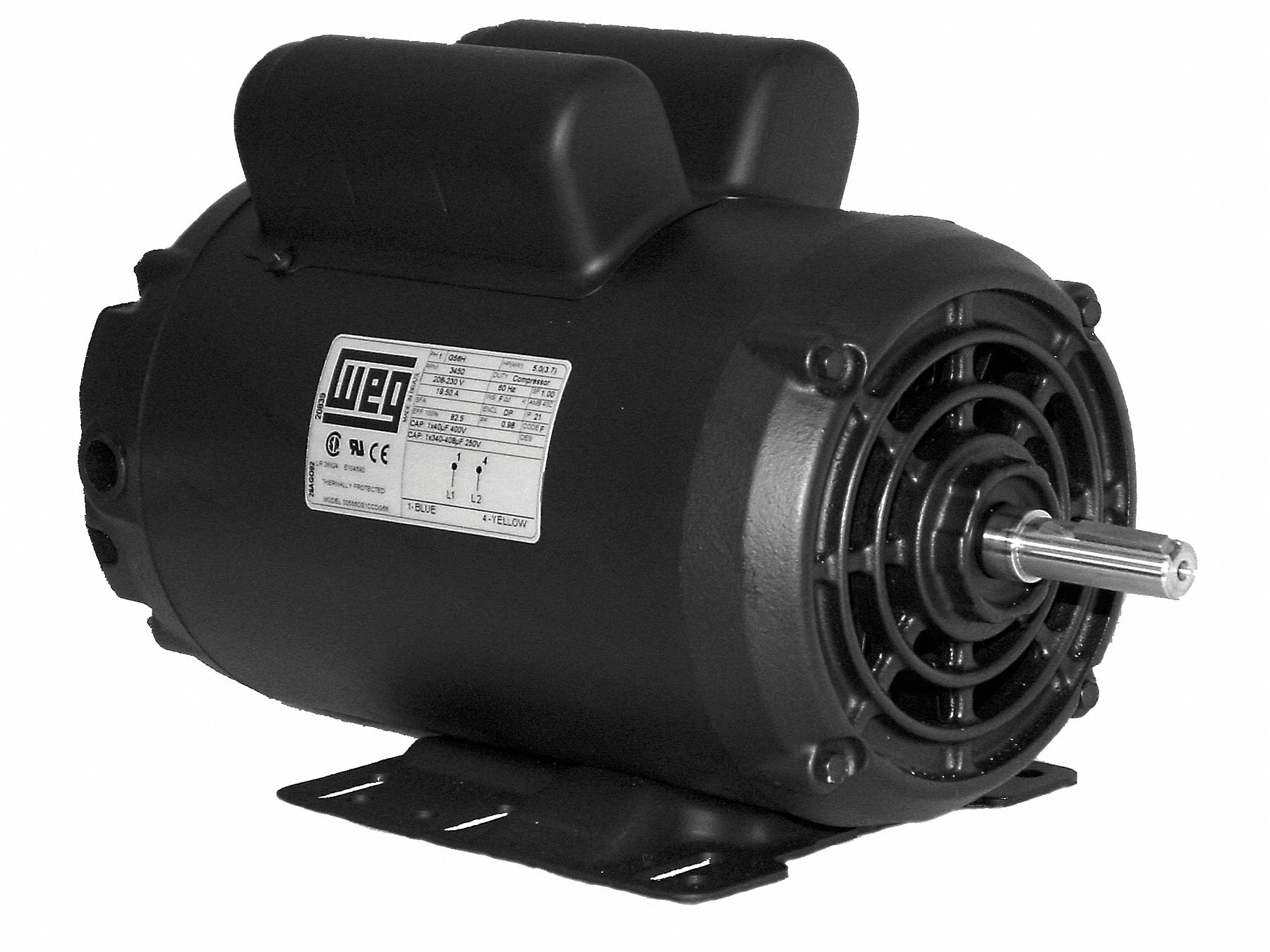

Air Compr Mtr, 5 HP, 3460rpm, 208-230V, 56HZ

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Compressor Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		5
Nameplate RPM		3460
NEMA/IEC Frame		56HZ
Frame		56HZ
Voltage		208-230
Hz		60
Phase		1
Full Load Amps		21.0-19.0
Mounting		Base
Thermal Protection		Manual
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CCWSE
Overall Length		14-1/4"
Shaft Dia.		7/8"
Shaft Length		2-1/4"
Duty		Continuous
Standards		UL Recognized, CSA Certified (LR38324)
Capacitor Included		Yes
RPM Range		2350-3600
