WEG Air Compr Mtr, 1.5hp, 3430rpm, 115/208-230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Compressor Motor, Capacitor-Start, Open Dripproof, 1-1/2 HP, Nameplate RPM 3430, 56 Frame, Voltage 115/208-230, 60 Hz, 1 Phase, Full Load Amps 16.8/9.2-8.4, Base Mounting, Thermal Protection Manual, Insulation Class B, 1.0 Service Factor, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 12-5/16 In., Shaft Dia. 5/8 In., Shaft Length 1-7/8 In.

Grainger Item #	13L292
Price (ea.)	$297.25
Brand	WEG
Mfr. Model #	00156OS1BCDD56
UNSPSC #	26101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	29.8
Availability	Typically in Stock
Catalog Page No.	41
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

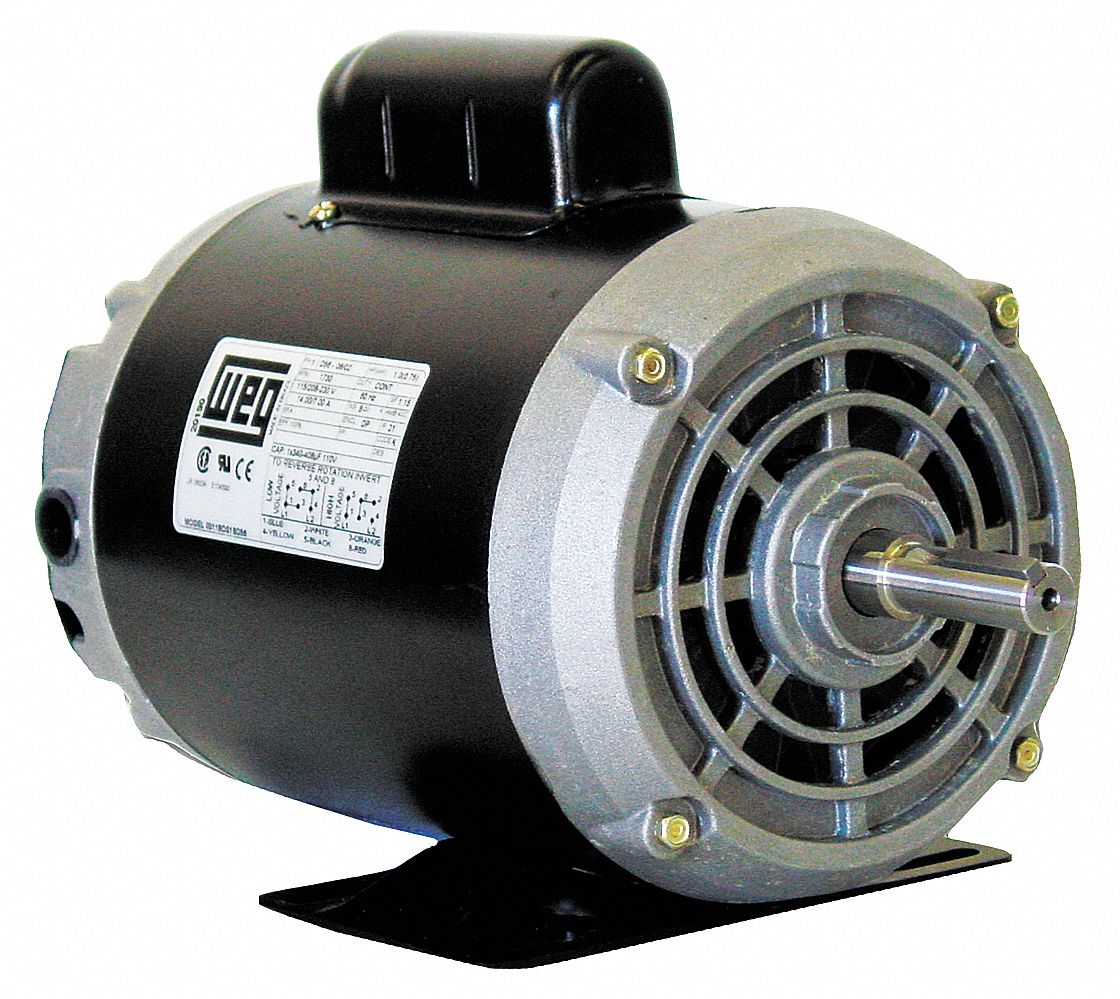

Air Compr Mtr, 1.5hp, 3430rpm, 115/208-230V

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Compressor Motor
Motor Type		Capacitor-Start
Enclosure		Open Dripproof
HP		1-1/2
Nameplate RPM		3430
NEMA/IEC Frame		56
Frame		56
Voltage		115/208-230
Hz		60
Phase		1
Full Load Amps		16.8/9.2-8.4
Mounting		Base
Thermal Protection		Manual
Insulation Class		B
Service Factor		1.0
Bearings		Ball
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Overall Length		12-5/16"
Shaft Dia.		5/8"
Shaft Length		1-7/8"
Duty		Continuous
Standards		UL Recognized, CSA Certified (LR38324)
Capacitor Included		Yes
RPM Range		2350-3600
