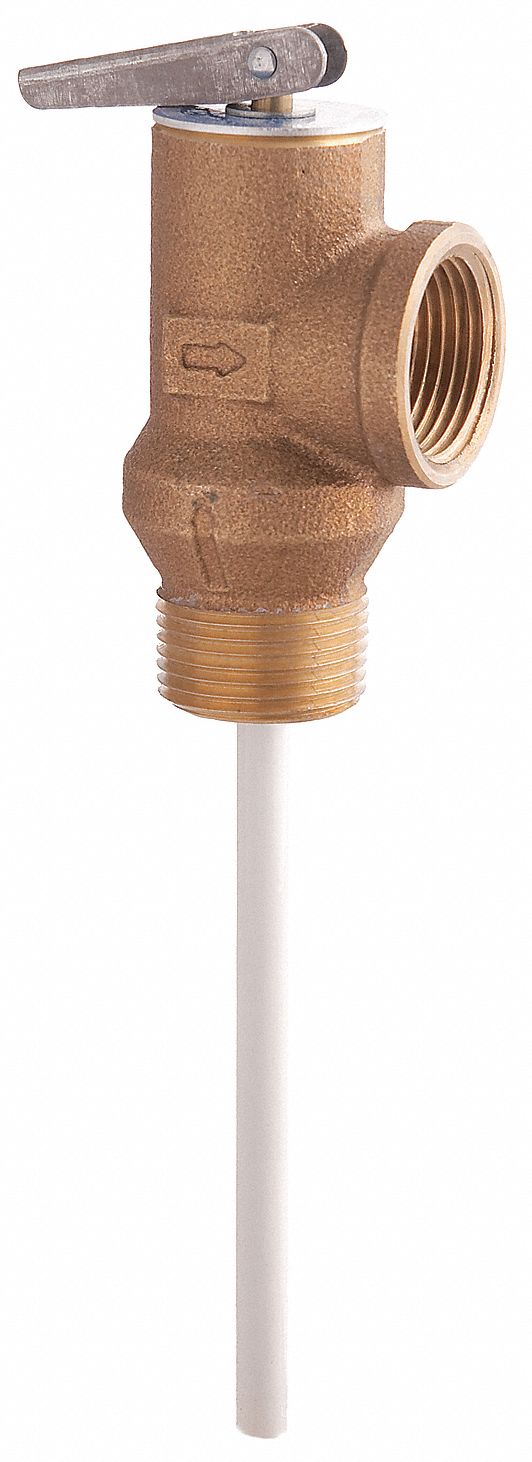

WATTS T & P Relief Valve, 3/4 In. Inlet

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Temperature & Pressure Relief Valve, Inlet Type MNPT, Outlet Type FNPT, Inlet Size 3/4 In., Outlet Size 3/4 In., Thermostat Length 1-3/4 In., Overall Height 4 In., 105, 000 BtuH, Factory Set Pressure 150 psi, Max. Temp. 210 Degrees F, Shank Length Extended, Auto Re-Seating Yes, Body Material Bronze, Spring Material Steel, Overall Width 1-7/8 In., Standards Listed by CSA to the Requirements of ANSI Z21.22, and by the National Board to the Requirements of ASME Section IV

Grainger Item #	5DLY4
Price (ea.)	$18.33
Brand	WATTS
Mfr. Model #	3/4 LF 100XL-4
UNSPSC #	40141606
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.54
Availability	Typically in Stock
Catalog Page No.	4404
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Temperature & Pressure Relief Valve
Inlet Type		MNPT
Outlet Type		FNPT
Inlet Size		3/4"
Outlet Size		3/4"
Thermostat Length		1-3/4"
Overall Height		4"
BtuH		105,000
Factory Set Pressure		150 psi
Max. Temp.		210 Degrees F
Shank Length		Extended
Auto Re-Seating		Yes
Body Material		Bronze
Spring Material		Steel
Overall Width		1-7/8"
Standards		Listed by CSA to the Requirements of ANSI Z21.22, and by the National Board to the Requirements of ASME Section IV
