Plumbing
>
Valves
>
Relief Valves

WATTS Relief Valve, 1 1/2 x 2 In, 2, 900, 000 BTU

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pressure Relief Valve, Inlet/Outlet (In.) 1-1/2 x 2, FNPT Connection, Material of Construction Iron, Preset Setting (PSI) 30, Disc Material Buna, Spring Material Brass, Seat Material Nonmetallic Disc to Metal, BtuH Rating 2, 900, 000, Temp. Range (F) 250 Degrees , Height (In.) 9-1/4, Length (In.) 5-1/4, Standards ASME, Military Spec MIL-V-18634B, Type I , Class 3A, Style A, Bronze Body

Grainger Item #	3AZD4
Price (ea.)	$549.00
Brand	WATTS
Mfr. Model #	11/2 740
UNSPSC #	40141606
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	6.7
Availability	Typically in Stock
Catalog Page No.	4404
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

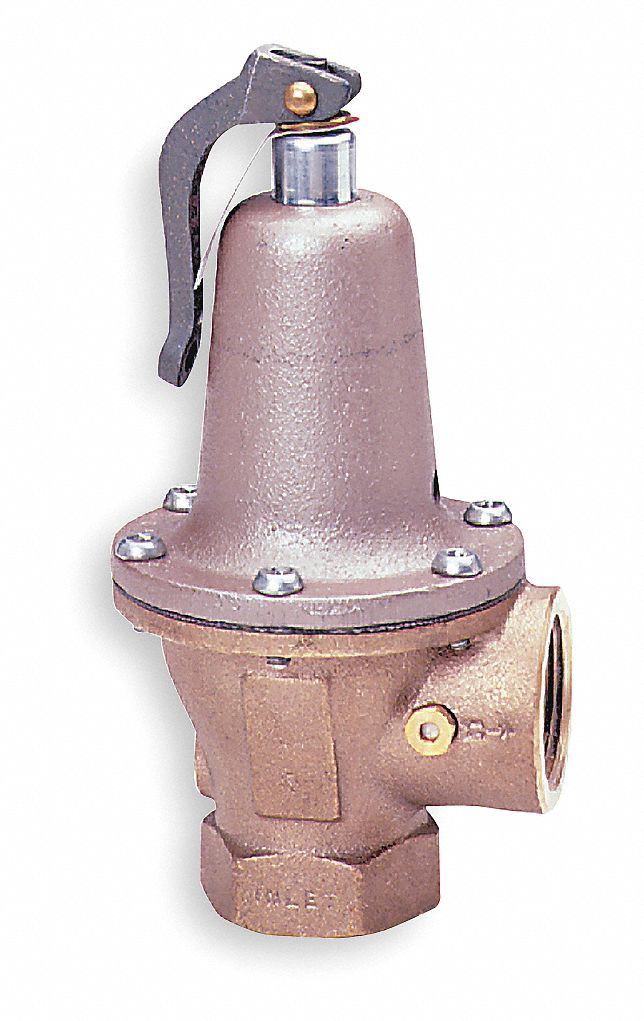

Relief Valve, 1 1/2 x 2 In, 2, 900, 000 BTU

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pressure Relief Valve
Inlet/Outlet (In.)		1-1/2 x 2
Connection		FNPT
Material of Construction		Iron
Preset Setting (PSI)		30
Disc Material		Buna
Spring Material		Brass
Seat Material		Nonmetallic Disc to Metal
BtuH Rating		2,900,000
Temp. Range (F)		250 Degrees
Height (In.)		9-1/4
Length (In.)		5-1/4
Standards		ASME, Military Spec MIL-V-18634B, Type I , Class 3A, Style A, Bronze Body
