Pumps
>
Sump, Effluent and Sewage Pumps
>
Upright Sump Pumps

WARRENDER Pump, Mag Drive, 3 HP, 3.8 Amp

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Vertical Magnetic Drive Pumps, Immersible w/ Mounting Base, 3 HP, Motor Enclosure TEFC, Amps AC 3.8, Housing Polypropylene, Impeller Material Polypropylene, Height 26 3/16 In., Dia. 8 3/4 In., NPT Inlet (In.) 2, NPT Outlet (In.) 1 1/4, GPM of Water @ 15 Ft. of Head 120, Max. Head 80 Ft., Max. Dia. Solids 1/16 In., Max. Liquid Temp. 120 F, For Use With Corrosives

Grainger Item #	4KTY3
Price (ea.)	$3,158.00
Brand	WARRENDER
Mfr. Model #	MV7.5H1BPTT31
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	71.55
Availability	Item ships within 21 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

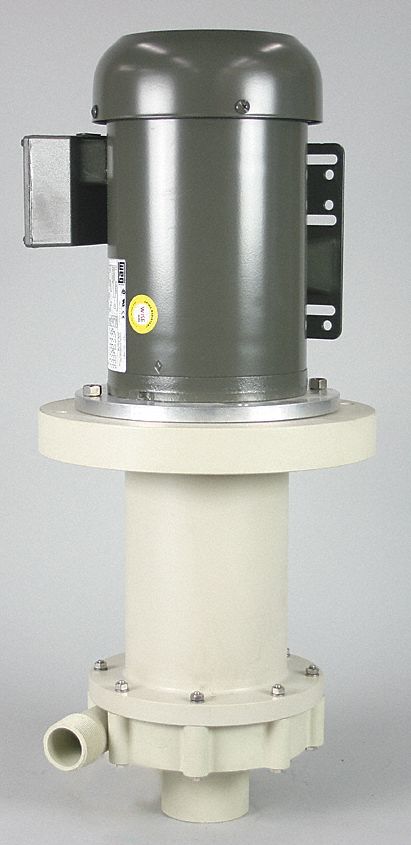

Enlarge Image

Item		Vertical Magnetic Drive Pumps
Type		Immersible w/ Mounting Base
HP		3
Motor Enclosure		TEFC
Amps AC		3.8
Housing		Polypropylene
Pump Base		Polypropylene
Volute Material		Polypropylene
Impeller Material		Polypropylene
Column Material		Polypropylene
Height (In.)		26-3/16
Dia. (In.)		8-3/4
NPT Inlet (In.)		2
NPT Outlet (In.)		1-1/4
GPM of Water @ 15 Ft. of Head		120
GPM of Water @ 20 Ft. of Head		115
Max. Head (Ft.)		80
Best Efficiency GPM @ Head (Ft.)		70.4 @ 70.5
Base to Motor Height (In.)		12-1/2
Off Point (In.)		11
On Point (In.)		8" On Startup, 40" After Primed
Motor Type		TEFC
Max. Dia. Solids (In.)		1/16
Max. Liquid Temp. (F)		120
Min. Sump Pit Dia. (In.)		18
Motor Housing		Rolled Steel
Hz		60
Insulation Class		H
Voltage		208-230/460
RPM		3450
Phase		3
Thermal Protection		Automatic
Adapter (In.)		1/2
Duty		Continuous
Features		NEMA
For Use With		Corrosives
Agency Compliance		UL, CSA, CE on Motor Only
Includes		2 each of 2 Ft. PVC Suction Pipe w/ Foot Valve
