WARRENDER Turbine Pump, Magnetic Drive, 3 HP, 3 Ph

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Turbine Pump, Sealless Magnetic Drive, Close Coupled, 3 HP, 3 Phase, Voltage 208-230/460, 3.8 Amps, 60 Hz, Inlet 1 In., Outlet 1 In., Max. Pressure 55 PSI, Length 19 7/8 In., Height 7 5/32 In., Width 9 3/32 In.

Grainger Item #	4KTY8
Price (ea.)	$2,733.00
Brand	WARRENDER
Mfr. Model #	MT7002P3T1
UNSPSC #	40151526
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	65.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	4087
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

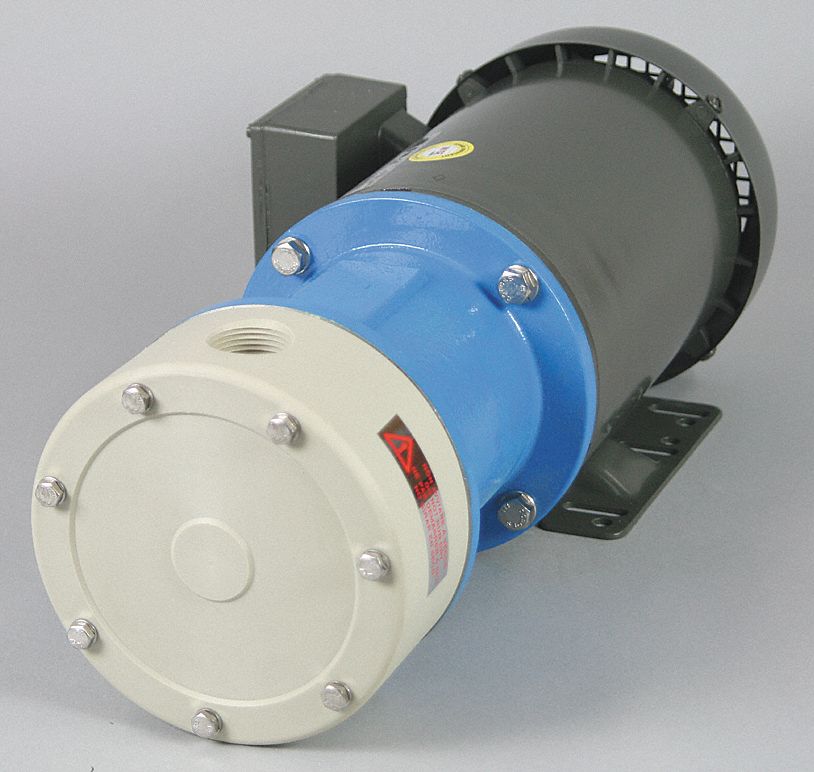

Turbine Pump, Magnetic Drive, 3 HP, 3 Ph

Enlarge Image

Item		Turbine Pump
Type		Sealless Magnetic Drive, Close Coupled
HP		3
Phase		3
Voltage		208-230/460
Amps		3.8
Hz		60
Inlet (In.)		1
Outlet (In.)		1
Motor Enclosure		TEFC
NEMA/IEC Frame		56C
Motor RPM		3600
Motor Type		TEFC
Service Factor		1.25
Wetted Materials		Polypropylene
Impeller Material		Polypropylene
Housing Material		Polypropylene
Volute Material		Polypropylene
Screw Material		Stainless Steel
Max. Liquid Temp. (F)		140
GPM @ 0 PSI		32
GPM @ 10 PSI		30
GPM @ 20 PSI		25
GPM @ 30 PSI		22
GPM @ 40 PSI		17.5
GPM @ 50 PSI		14
Max. Pressure (PSI)		55
Best Efficiency GPM @ Head (Ft.)		22 GPM @ 30 PSI
Best Efficiency Range GPM @ Head (Ft.)		14-30 GPM @ 50-5 PSI
Max. Specific Gravity		1.2
Max. Case Pressure (PSI)		75
Max. Fluid Viscosity		50 SSU
Impeller Type		Regenerative Turbine
Bearing Type		Sealed Ball Bearing (Motor Bearing)
Duty		Continuous
Max. Dia. Solids (In.)		150 Microns
Port Rotation		45 Degree Increments
Agency Compliance		UL, CSA, CE on Motor Only
Application		CIP Systems, Acid and Caustic Transfer, ECD Acid Spray Systems, Low Micron Filtration, Electroplating & Precious Metals, Carbon and Resin Treatment, High Purity Liquids, Freon Systems, Radar Cooling and Truck PTO Bulk Transfer
Length (In.)		19-7/8
Height (In.)		7-5/32
Width (In.)		9-3/32
Construction		Solid Machined Glass-Free Polypropylene, Ceramic Shaft, PTFE-C Sleeve Bearings, EPDM O-Ring, Dual Neodymium Sealless Magnetic Coupling
