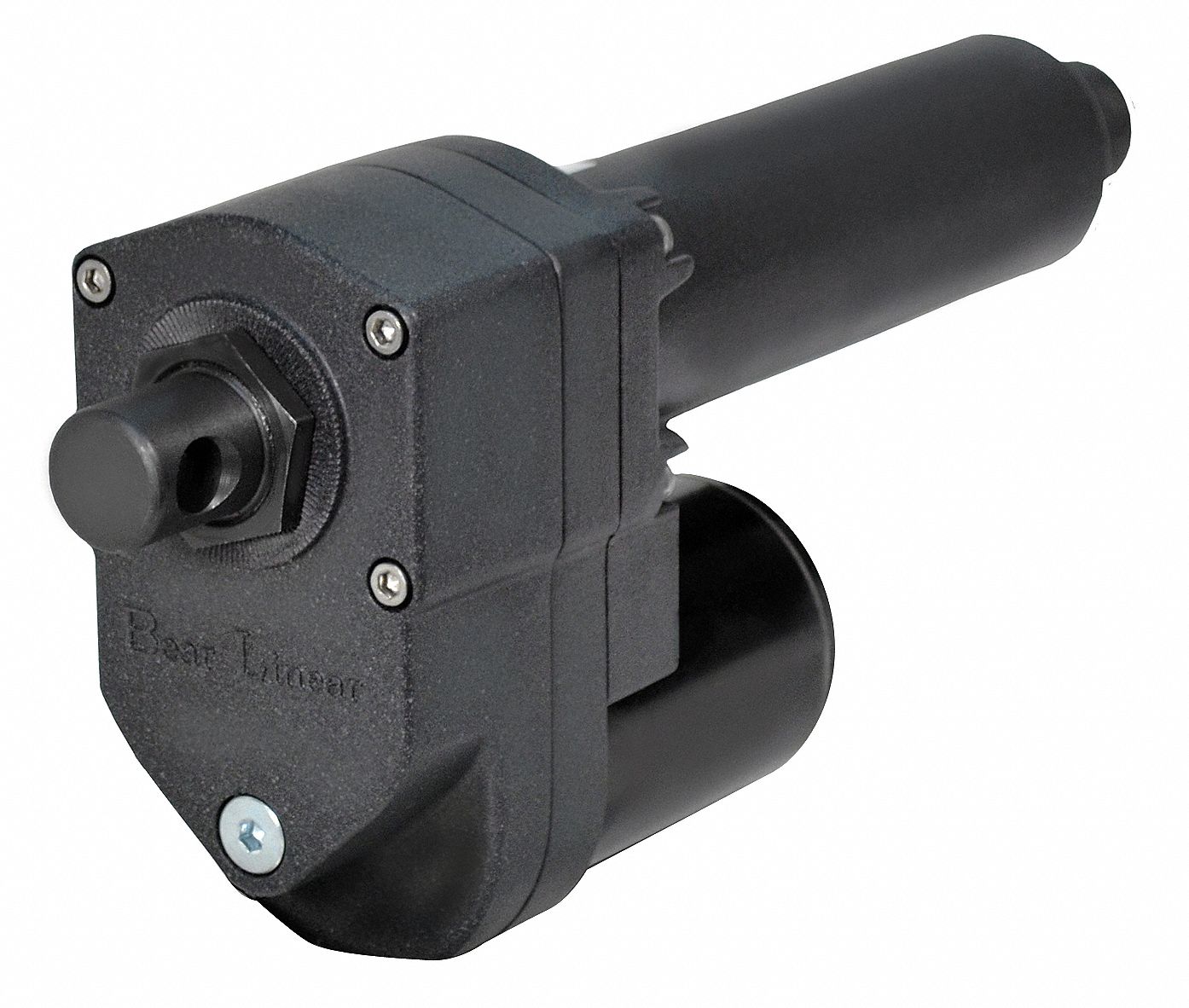

WARNER LINEAR Linear Actuator, 115VAC, Travel 18 In.

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Linear Actuator, Rated Load 1200 Lb., Voltage 115VAC, Full Load Amps 5, Retracted Dimension 28.94 In., Travel 18 In., Speed 30 In./Minute, Duty Cycle 25 pct., Operating Frequency 60/50 Hz, Ambient Temp. Max 60 Degrees C/140 Degrees F, Totally Enclosed Nonventilated, Motor Type Permanent Magnet, Auto Thermal Protection, Clevis Mounting Type

Grainger Item #	18G670
Price (ea.)	$816.00
Brand	WARNER LINEAR
Mfr. Model #	K2G20-115V-BR-18
UNSPSC #	31251511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	22.6
Availability	Typically in Stock
Catalog Page No.	229
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Linear Actuator
Rated Load (Lb.)		1200
Voltage		115VAC
Full Load Amps		5
Retracted Dimension (In.)		28.94
Travel (In.)		18
Speed (In./Minute)		30
Duty Cycle (%)		25
Operating Frequency (Hz)		60/50
Ambient Temp. Max (C/F)		60 Degrees C/140 Degrees F
Enclosure Type		Totally Enclosed Nonventilated
Motor Type		Permanent Magnet
Thermal Protection		Auto
Capacitor Included		Yes
Capacitor Required		Yes
Feedback Signal		No
Clutch		Yes
Drive System		Gear
Gears		Powdered Metal
Screw Type		Acme
Nut		Bronze
Seal Guide Material		Delrin
Translating Tube		Nitrotec Coated Steel
Housing Material		Aluminum
Finish		Powder Coat
Gear Case Type		Parallel spur
Mounting Type		Clevis
Agency Compliance		UL
