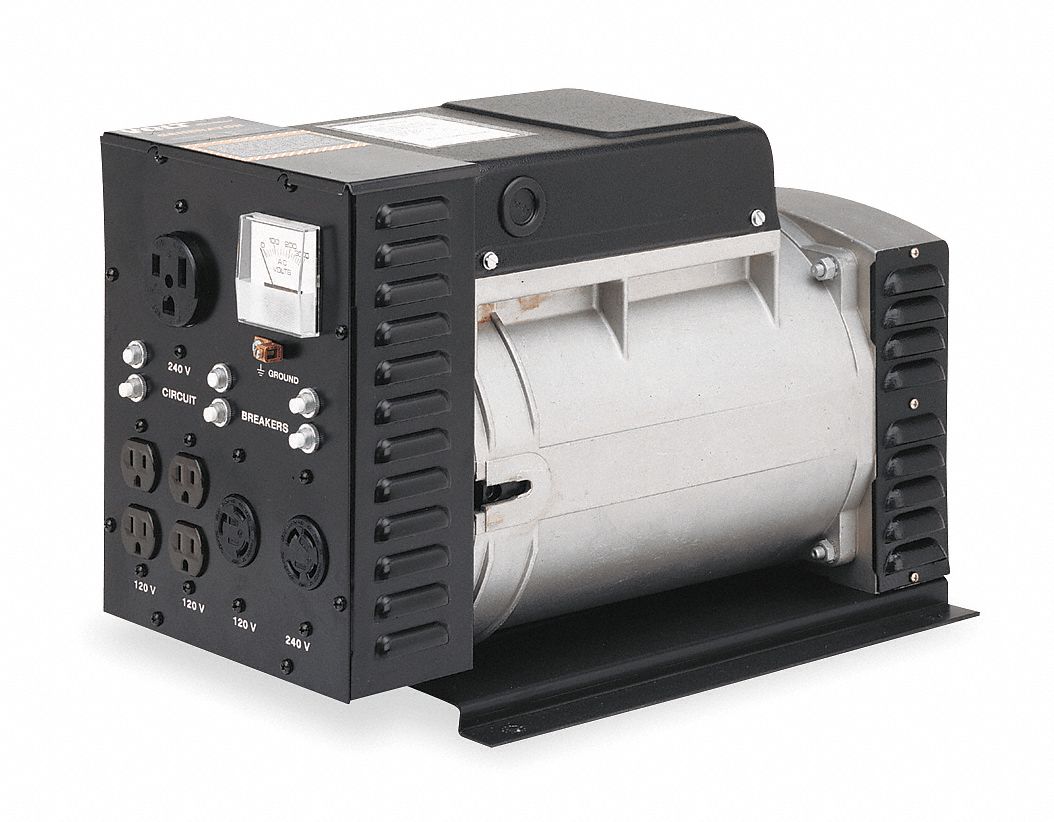

VOLT MASTER Generator, 9500 W

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Generator Head, Rated Watts 9500, kVA Rating 9.5, Voltage 120/240, 79.2/39.6 Amps @ 120/240V, 10, 000 Surge Watts, Min. Required Engine HP 16, Outlets (2) 20A @ 120V 5-20R / (1) 20A @ 120V L5-30R / (1) 30A @ 120/240V L14-30R / (1) 50A @ 120/240V 14-50R, Shaft Dia. 1 In., Shaft Position Center, Length 22-1/2 In., Width 9 In., Height 13 In., Belt Type B, Number of Grooves 2, Shaft Rotation CW/CCW, RPM 3600, 1 Phase, Power Factor 1.0, 60 Hz, Circuit Breaker Yes

Grainger Item #	6HJ90
Price (ea.)	$1,091.00
Brand	VOLT MASTER
Mfr. Model #	AR100
UNSPSC #	26111604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	128.0
Availability	Typically in Stock
Catalog Page No.	1364
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Generator Head
Rated Watts		9500
kVA Rating		9.5
Voltage		120/240
Amps @ 120/240V		79.2/39.6
Surge Watts		10,000
Min. Required Engine HP		16
Outlets		(2) 20A @ 120V 5-20R / (1) 20A @ 120V L5-30R / (1) 30A @ 120/240V L14-30R / (1) 50A @ 120/240V 14-50R
Shaft Dia.		1"
Shaft Position		Center
Length		22-1/2"
Width		9"
Height		13"
Belt Type		B
Number of Grooves		2
Shaft Rotation		CW/CCW
RPM		3600
Phase		1
Power Factor		1.0
Hz		60
Circuit Breaker		Yes
Bearings		Sealed Ball
Includes		Voltmeter
Warranty		1 yr.
Standards		CSA

Other Popular Terms for this Product

• Engine-Driven Generators (236)

• Engine Driven Generators (231)

• Belt-Driven Generators (7)

Read Reviews
Write Reviews
Ask And Answer

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

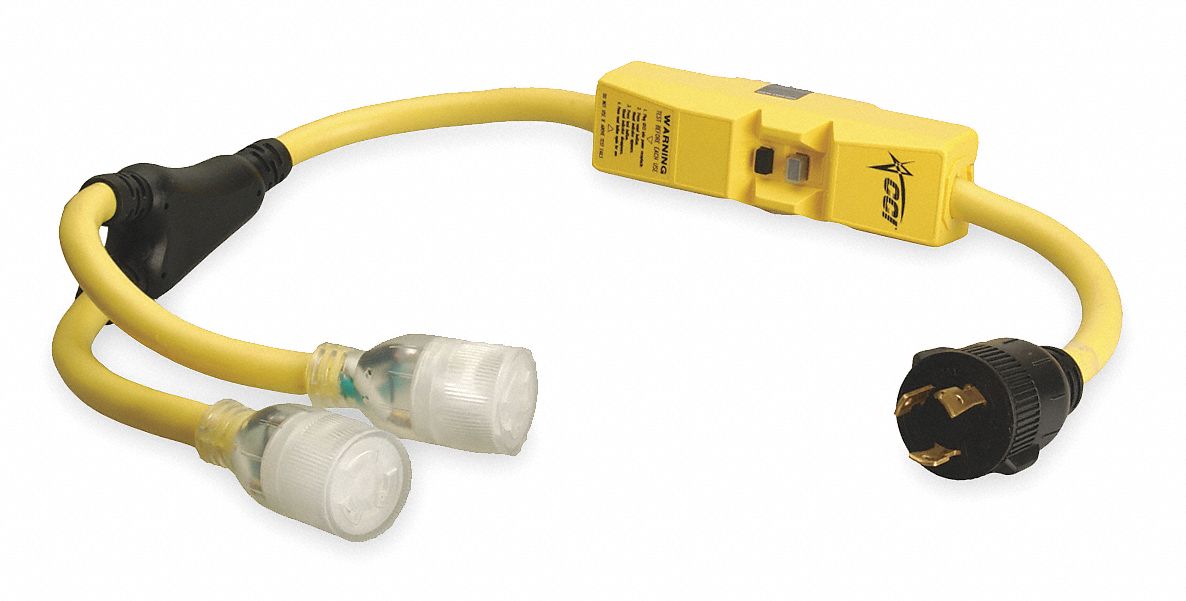

Extension Cord, Y Adapter, GFCI, 20 A
