Power Transmission
>
Vibrators
>
Vibrators

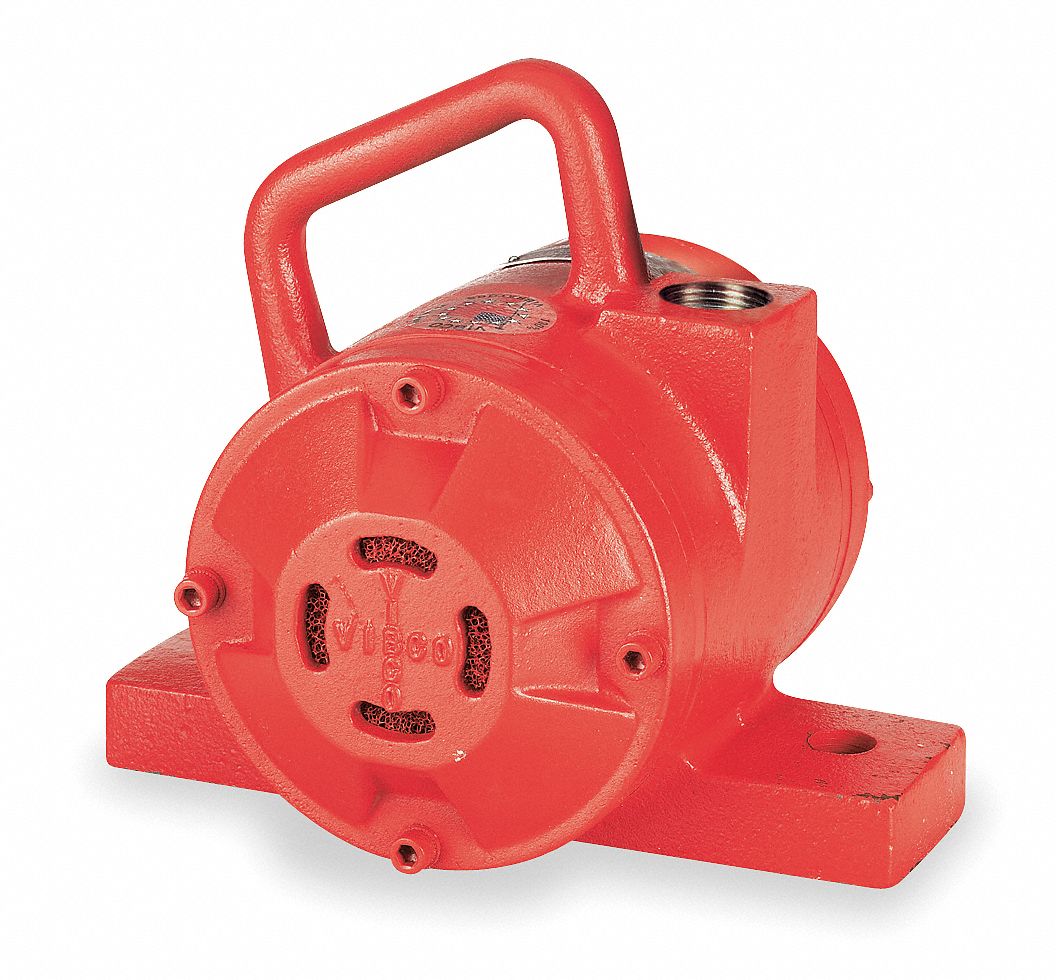

VIBCO Vibrator, Pneumatic

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Heavy Duty Turbine Pneumatic Vibrator, Force 5000 Pounds, Air Flow @ 80 PSI 45 CFM, Speed @ 80 PSI 6000 RPM, Maximum Pounds of Bin Material 50000, Noise Level @ 80 PSI 75 dB , Inlet Port Size 1 Inch, Overall Length 10 1/16 Inches, Overall Height 9 Inches, Overall Width 8 1/2 Inches, Silent, High Force Output, Foot Mounted

Grainger Item #	6L763
Price (ea.)	$1,497.00
Brand	VIBCO
Mfr. Model #	CCF-5000
UNSPSC #	24101727
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	44.25
Availability	Typically in Stock
Catalog Page No.	255
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Vibrator
Type		Heavy Duty
Power Source		Pneumatic/Air
Voltage		Non-Electric
Phase		Non-Electric
Force (Lb.)		5000
Force		Sinusoidal (Rotary)
Duty		Continuous
Speed @ 80 psi (VPM)		6000
Speed (VPM)		6000
CFM @ 80 PSI		50.0
dB @ 80 psi		75
PSI		80
Max. Temp.		350F
Inlet Port (In.)		1
Outlet Port (In.)		1
Muffler		Included
Mounting Plate		Sold Separately
Bearings		Prelubricated
Overall Height (In.)		9
Overall Length (In.)		10-1/16
Overall Width (In.)		8-1/2
Application		Permanent or Portable Applications in Large Bins, Hoppers, Chutes, Packing Tables and Screens
