VIBCO Vibrator, Pneumatic

| Write a Review
| Read all Reviews
| Read all Ask & Answer

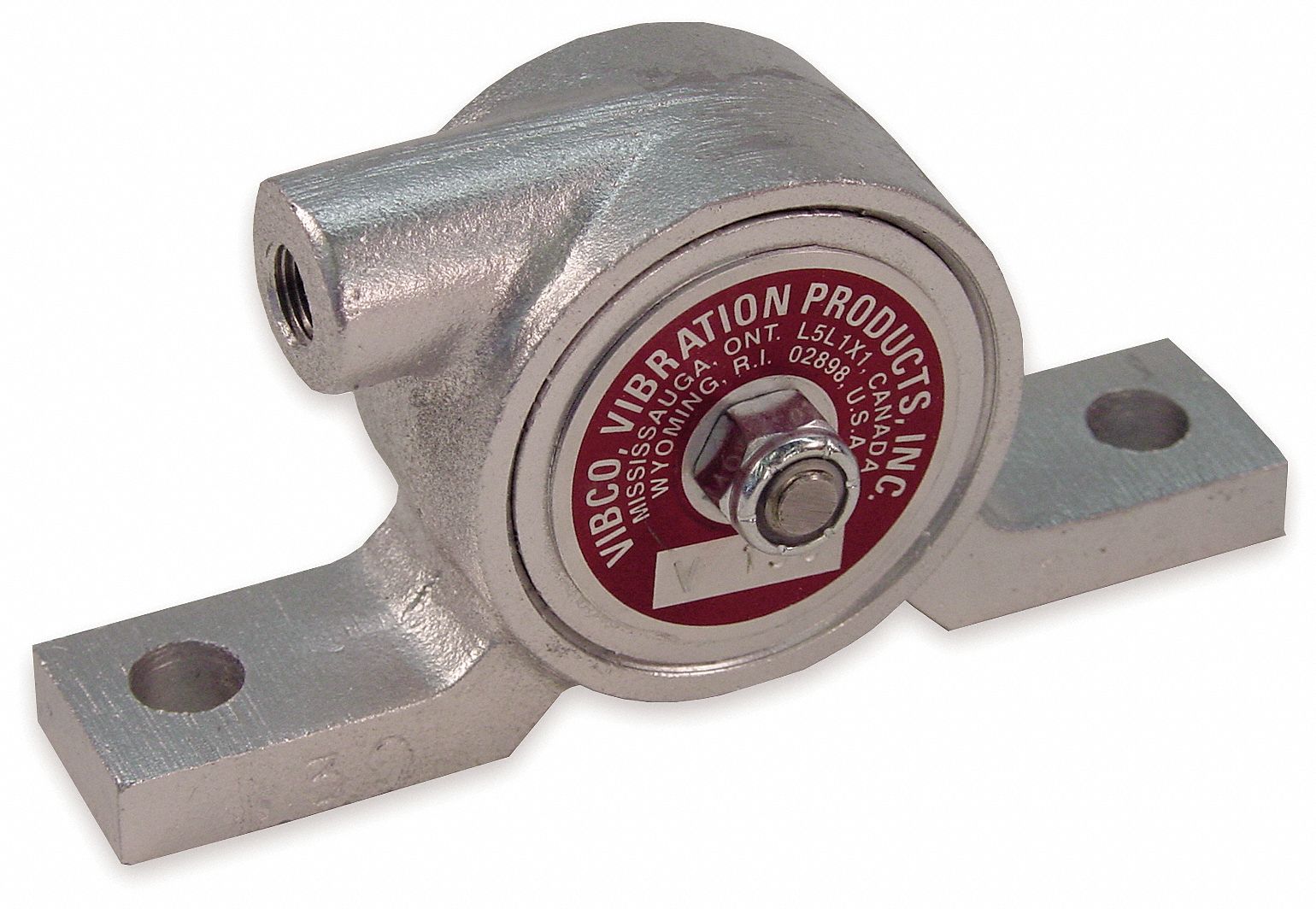

Ball Pneumatic Vibrator, Force 80 Pounds, Air Flow @ 80 PSI 7.5 CFM, Speed @ 80 PSI 15000 RPM, Maximum Pounds of Bin Material 800, Noise Level @ 80 PSI 72 dB, Inlet Port Size 1/8 Inch, Outlet Port Size 1/8 Inch, Mounting Plate 4HX16, Muffler Included, Overall Length 4 7/8 Inches, Overall Height 2 15/16 Inches, Overall Width 1 15/16 Inches

Grainger Item #	4HV28
Price (ea.)	$202.75
Brand	VIBCO
Mfr. Model #	V-130
UNSPSC #	24101727
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.3
Availability	Typically in Stock
Catalog Page No.	256
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Vibrator
Type		Ball
Power Source		Pneumatic/Air
Voltage		Non-Electric
Phase		Non-Electric
Force (Lb.)		80
Force		Sinusoidal (Rotary)
Duty		Continuous
Max. Material in Bin (Lb.)		800
Speed @ 60 psi (VPM)		19,000
Speed (VPM)		19,000
CFM @ 60 psi		7.5
dB @ 60 psi		72
PSI		60
Max. Temp.		350
Inlet Port (In.)		1/8
Muffler		Included
Mounting		Any Position
Mounting Plate		Sold Separately
Housing		Cast Iron
Ball Material		Hardened Steel
Overall Height (In.)		2-5/16
Overall Length (In.)		4-7/8
Overall Width (In.)		1-15/16
Application		Automotive, Chemical, Plastics, Bio-tech, Plating and Food Industries
