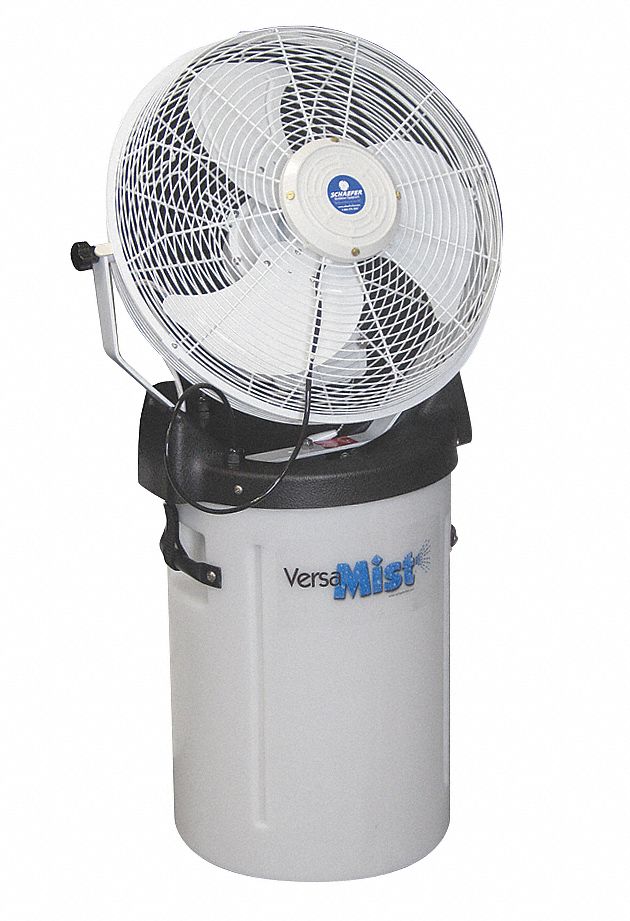

VERSA-MIST Misting Air Circ, 18 In, 3176 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Misting Air Circulator, Blade Dia. 18 In., Stationary, Non-Oscillating, Speeds 3, Voltage 115V, 1 Phase, CFM High 3176, CFM Low 1945, Air Velocity (FPM) @ 20 Ft. 190/270/310, Motor HP 1/10, Motor RPM 1000/1400/1570, Operating Amps 1.6/1.7/1.8, Mounting Location FloorCommercial, Assembled Unassembled, CFM Medium 2728Outside Dia. 20 In., Includes 10 gal. Tank, 5 hr. Run Time, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs

Grainger Item #	4ARK3
Price (ea.)	$644.40
Brand	VERSA-MIST
Mfr. Model #	PVM18
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	47.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	4442
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Misting Air Circulator
Blade Dia.		18"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		3
Voltage		115V
Phase		1
CFM High		3176
CFM Low		1945
Air Velocity (FPM) @ 20 Ft.		190/270/310
Motor HP		1/10
Motor RPM		1000/1400/1570
Operating Amps		1.6/1.7/1.8
Mounting Location		Floor
Environmental Applications		Commercial
Assembled		Unassembled
CFM Medium		2728
Sound Level		60/52dBA
Max. Ambient Temp.		107 Degrees F
Hz		60
Watts		130
Motor Type		Permanent Split Capacitor
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class A
Thermal Protection		Auto
Bearing Type		Sealed Ball
Outside Dia.		20"
Height		42"
Width		24"
Max. Depth		15"
Cord Length		25 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Wire Guard Finish		White Powder Coat
Application		Spot Cooling and People Cooling
Standards		UL507 Motor and OSHA Guard
Includes		10 gal. Tank, 5 hr. Run Time, High Pressure Water Pump, Power Cut Off Tip Switch, (1) Extra Nozzle and (2) Plugs
