Pumps
>
Diaphragm Pumps
>
Air Operated Diaphragm Pumps

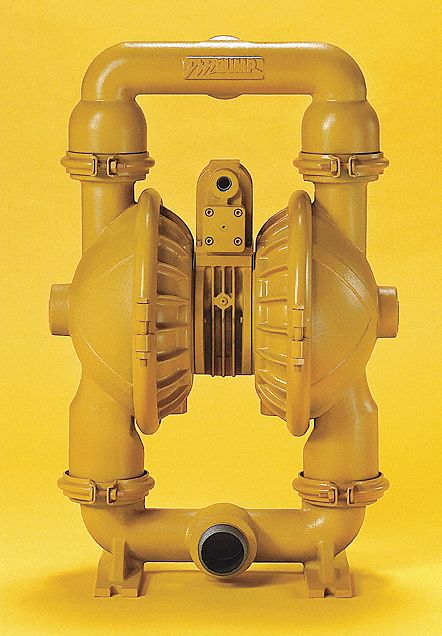

VERSA-MATIC Diaphragm Pump, Aluminum, Buna Diapragm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Operated Diaphragm Pump, Inlet/Outlet 2 In, Max Flow GPM 155, Max Flow (CFM) 100, Max Operating PSI 125, Body Material Aluminum, Diaphragm Material Buna N, Ball Material Buna-N, Check Seat Material Buna-N, Air Inlet 1/2 In, Manifold Connection Two, Max Dia Solids 1/4 In, Max Temp 180 F, Self-Priming Dry 20 Ft, Self-Priming Wet 25 Ft, 5 Years

Grainger Item #	4GGF2
Price (ea.)	$1,571.00
Brand	VERSA-MATIC
Mfr. Model #	E2AA2R220C-ATEX
UNSPSC #	40151548
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	66.5
Availability	Typically in Stock
Catalog Page No.	4138
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Operated Double Diaphragm Pump
Inlet/Outlet		2"
Max. Flow GPM		155
Max. Flow		100 cfm
Max. Operating PSI		125
Body Material		Aluminum
Diaphragm Material		Buna N
Ball Material		Buna N
Check Seat Material		Buna N
Air Inlet (F)NPT		1/2"
Manifold Connection		Two
Max. Dia. Solids		1/4"
Max. Temp.		180 Degrees F
Self-Priming Dry		20 ft.
Self-Priming Wet		25 ft.
Manufacturers Warranty Length		5 Years
