VENCO PRODUCTS Air Circ, 42 In, 18, 000 cfm, 208-230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 42 In., Stationary, Non-Oscillating, Speeds 2, Voltage 208-230/460V, 3 Phase, CFM High 18, 000, CFM Low 11, 500, Air Velocity (FPM) @ 20 Ft. 470/295, Motor HP 3/4, Motor RPM 1725/1140, Operating Amps 3.2-3.4/1.7, Mounting Location Ceiling, Fan RPM 360/238, Commercial, Assembled Partially AssembledOutside Dia. 43-1/2 In., Includes Suspension Mount Kit

Grainger Item #	7J793
Price (ea.)	$853.60
Brand	VENCO PRODUCTS
Mfr. Model #	7J793
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	166.93
Availability	Typically in Stock
Catalog Page No.	4438
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

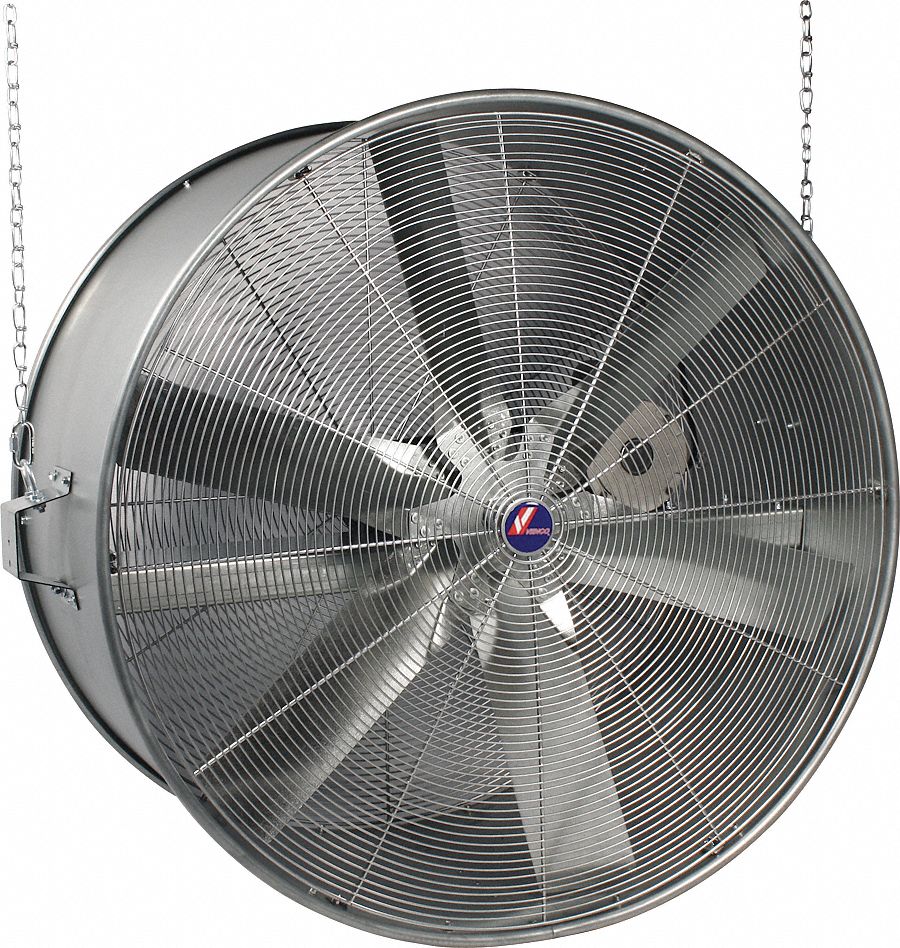

Air Circ, 42 In, 18, 000 cfm, 208-230/460V

Enlarge Image

Item		Air Circulator
Blade Dia.		42"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		208-230/460V
Phase		3
CFM High		18,000
CFM Low		11,500
Air Velocity (FPM) @ 20 Ft.		470/295
Motor HP		3/4
Motor RPM		1725/1140
Operating Amps		3.2-3.4/1.7
Mounting Location		Ceiling
Fan RPM		360/238
Environmental Applications		Commercial
Assembled		Partially Assembled
Air Velocity (FPM) @ 40 Ft		320/230
Air Velocity (FPM) @ 60 Ft.		270/195
Sound Level		71dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		560
Drive Type		Belt
Motor Enclosure		Open Dripproof
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		43-1/2"
Height		43-1/2"
Width		43-1/2"
Max. Depth		21-1/4"
Number of Blades		6
Blade Material		Steel
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Application		Spot Cooling
Standards		UL/cUL, OSHA
Includes		Suspension Mount Kit
