VENCO PRODUCTS Air Circulator, 36 In, 14, 000 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 36 In., Stationary, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 14, 000, CFM Low 8400, Air Velocity (FPM) @ 20 Ft. 417/292, Motor HP 1/2, Motor RPM 1725/1140, Operating Amps 4.9/4.1, Mounting Location Ceiling, Fan RPM 460/304, Commercial, Assembled Partially AssembledOutside Dia. 37-1/2 In., Includes Mounting Accessory

Grainger Item #	7AP16
Price (ea.)	$751.00
Brand	VENCO PRODUCTS
Mfr. Model #	7AP16
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	131.48
Availability	Typically in Stock
Catalog Page No.	4438
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

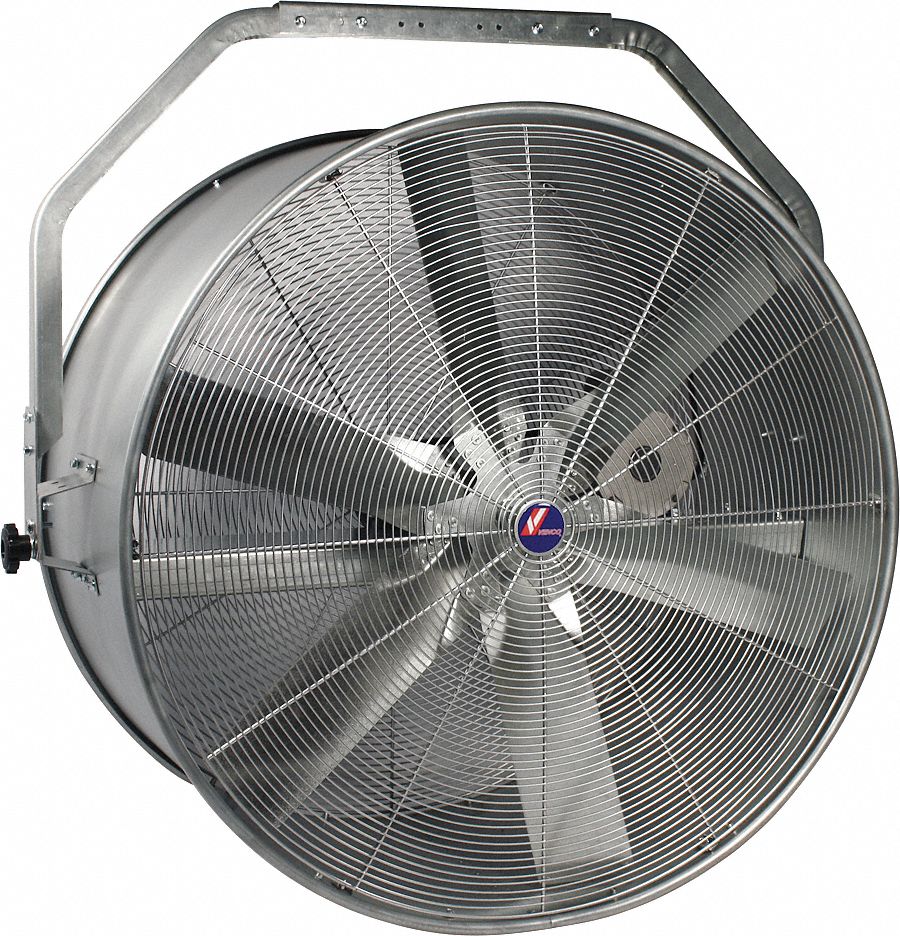

Air Circulator, 36 In, 14, 000 cfm, 115V

Enlarge Image

Item		Air Circulator
Blade Dia.		36"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		14,000
CFM Low		8400
Air Velocity (FPM) @ 20 Ft.		417/292
Motor HP		1/2
Motor RPM		1725/1140
Operating Amps		4.9/4.1
Mounting Location		Ceiling
Fan RPM		460/304
Environmental Applications		Commercial
Assembled		Partially Assembled
Air Velocity (FPM) @ 40 Ft		263/184
Air Velocity (FPM) @ 60 Ft.		200/140
Sound Level		68dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		373
Drive Type		Belt
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		37-1/2"
Height		44-1/2"
Width		37-1/2"
Max. Depth		21-1/4"
Cord Length		10 ft.
Number of Blades		6
Blade Material		Steel
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Application		Spot Cooling
Standards		UL/cUL, OSHA
Includes		Mounting Accessory
