VENCO PRODUCTS Air Circulator, 48 In, 19, 500 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 48 In., Mobile, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 19, 500, CFM Low 14, 100, Air Velocity (FPM) @ 20 Ft. 464/279, Motor HP 3/4, Motor RPM 1075/750, Operating Amps 8.9/6.1, Mounting Location Floor, Fan RPM 825/600, Commercial, Assembled Partially AssembledOutside Dia. 50 In., Includes Mounting Accessory

Grainger Item #	7AP15
Price (ea.)	$897.50
Brand	VENCO PRODUCTS
Mfr. Model #	7AP15
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	269.0
Availability	Typically in Stock
Catalog Page No.	4438
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

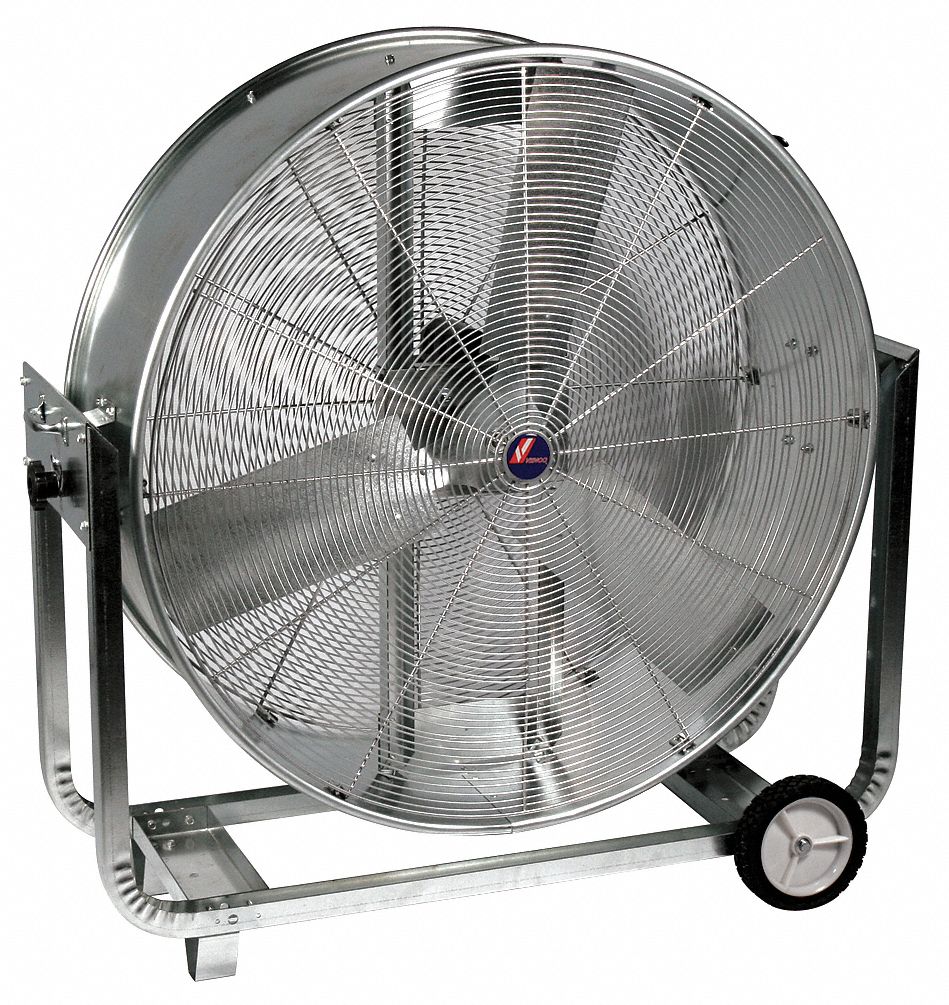

Air Circulator, 48 In, 19, 500 cfm, 115V

Enlarge Image

Item		Air Circulator
Blade Dia.		48"
Mobile/Stationary		Mobile
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		19,500
CFM Low		14,100
Air Velocity (FPM) @ 20 Ft.		464/279
Motor HP		3/4
Motor RPM		1075/750
Operating Amps		8.9/6.1
Mounting Location		Floor
Fan RPM		825/600
Environmental Applications		Commercial
Assembled		Partially Assembled
Air Velocity (FPM) @ 40 Ft		344/260
Air Velocity (FPM) @ 60 Ft.		316/232
Sound Level		78dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		560
Drive Type		Direct
Motor Enclosure		Open Dripproof
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		50"
Height		56"
Width		56"
Max. Depth		27-1/4"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		5/8"
Housing Material		Steel
Guard Material		Steel
Application		Spot Cooling
Standards		UL/cUL, OSHA
Includes		Mounting Accessory
