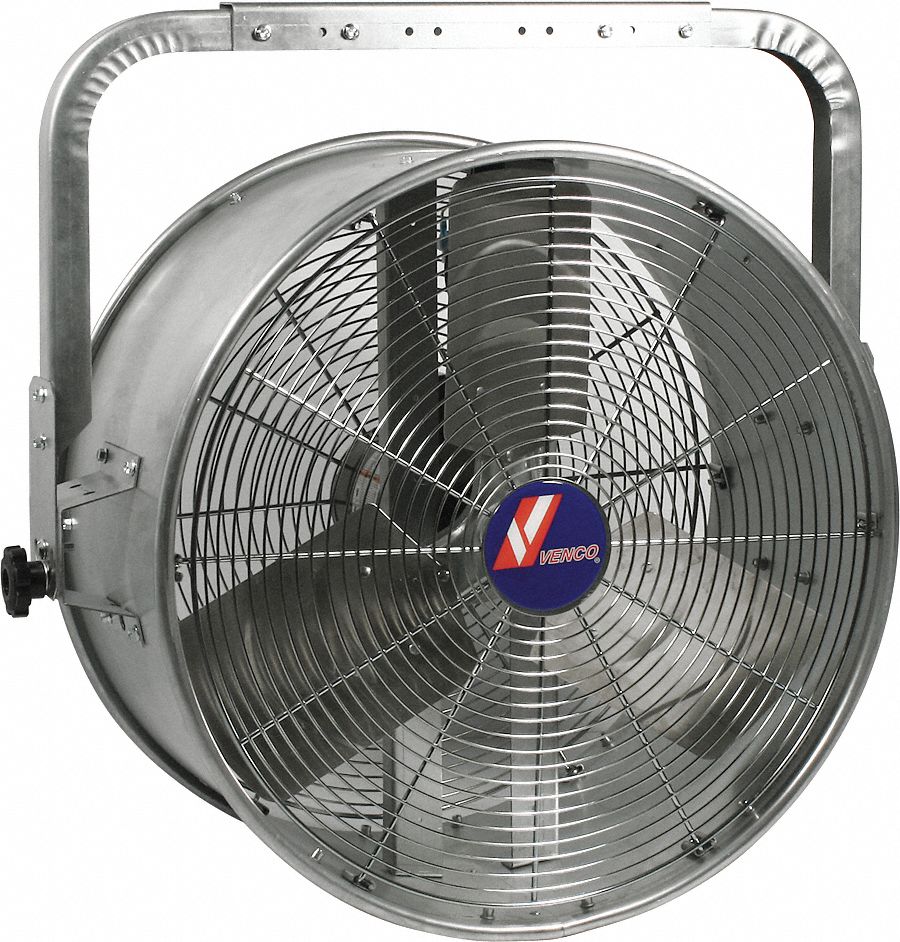

VENCO PRODUCTS Air Circulator, 24 In, 6100 cfm, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Circulator, Blade Dia. 24 In., Stationary, Non-Oscillating, Speeds 2, Voltage 115V, 1 Phase, CFM High 6100, CFM Low 4100, Air Velocity (FPM) @ 20 Ft. 350/245, Motor HP 1/3, Motor RPM 1075/750, Operating Amps 3.7/3.4, Mounting Location Ceiling, Fan RPM 1075/750, Commercial, Assembled Partially AssembledOutside Dia. 25-1/2 In., Includes Mounting Accessory

Grainger Item #	7AN98
Price (ea.)	$450.25
Brand	VENCO PRODUCTS
Mfr. Model #	7AN98
UNSPSC #	40101602
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	63.62
Availability	Typically in Stock
Catalog Page No.	4438
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Air Circulator
Blade Dia.		24"
Mobile/Stationary		Stationary
Oscillating/Non-Oscillating		Non-Oscillating
Speeds		2
Voltage		115V
Phase		1
CFM High		6100
CFM Low		4100
Air Velocity (FPM) @ 20 Ft.		350/245
Motor HP		1/3
Motor RPM		1075/750
Operating Amps		3.7/3.4
Mounting Location		Ceiling
Fan RPM		1075/750
Environmental Applications		Commercial
Assembled		Partially Assembled
Air Velocity (FPM) @ 40 Ft		140/100
Air Velocity (FPM) @ 60 Ft.		50/35
Sound Level		74dBA
Max. Ambient Temp.		104 Degrees F
Hz		60
Watts		250
Drive Type		Direct
Motor Enclosure		Totally Enclosed Air-Over
Motor Insulation		Class B
Thermal Protection		Auto
Bearing Type		Ball
Outside Dia.		25-1/2"
Height		32-1/2"
Width		25-1/2"
Max. Depth		13-1/2"
Cord Length		10 ft.
Number of Blades		3
Blade Material		Steel
Shaft Dia.		1/2"
Housing Material		Steel
Guard Material		Steel
Application		Spot Cooling
Standards		UL/cUL, OSHA
Includes		Mounting Accessory
