Plumbing
>
Valves
>
Air and Vacuum Release Valves

VAL-MATIC Valve Air Release and Vac, FNPT, 1 x 1, CI

| Write a Review
| Read all Reviews
| Read all Ask & Answer

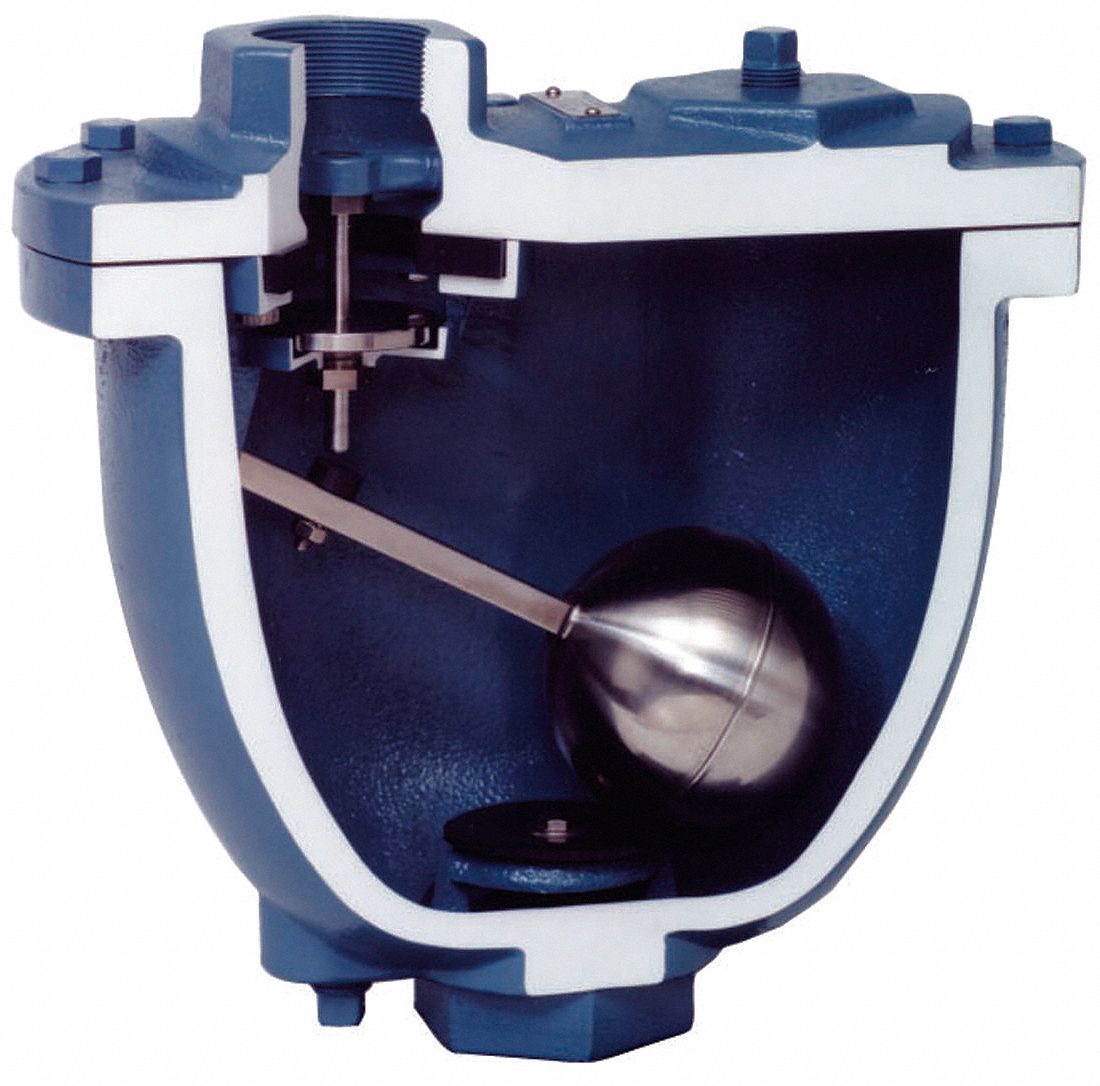

Air Release/Air Vacuum Valve, Inlet Size 1 In., Outlet Size 1 In., Application Clean Water, Min. Pressure 20 psi, Max. Pressure 300 psi, Max. Vent Capacity 18 scfm at 300 psi, Connection Type FNPT, Max. Fluid Temp. 250 Degrees F, Vacuum Pressure 29 In. Hg, Body Material Cast Iron, Float Material 316 Stainless Steel, Standards NSF61, ASTM A126

Grainger Item #	5LYL5
Price (ea.)	$541.50
Brand	VAL-MATIC
Mfr. Model #	201C.2
UNSPSC #	40141606
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	36.64
Availability	Typically in Stock
Catalog Page No.	4422
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Valve Air Release and Vac, FNPT, 1 x 1, CI

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Release/Air Vacuum Valve
Inlet Size		1"
Outlet Size		1"
Application		Clean Water
Min. Pressure		20 psi
Max. Pressure		300 psi
Max. Vent Capacity		18 scfm at 300 psi
Connection Type		FNPT
Max. Fluid Temp.		250 Degrees F
Vacuum Pressure		29" Hg
Body Material		Cast Iron
Float Material		316 Stainless Steel
Standards		NSF61, ASTM A126
